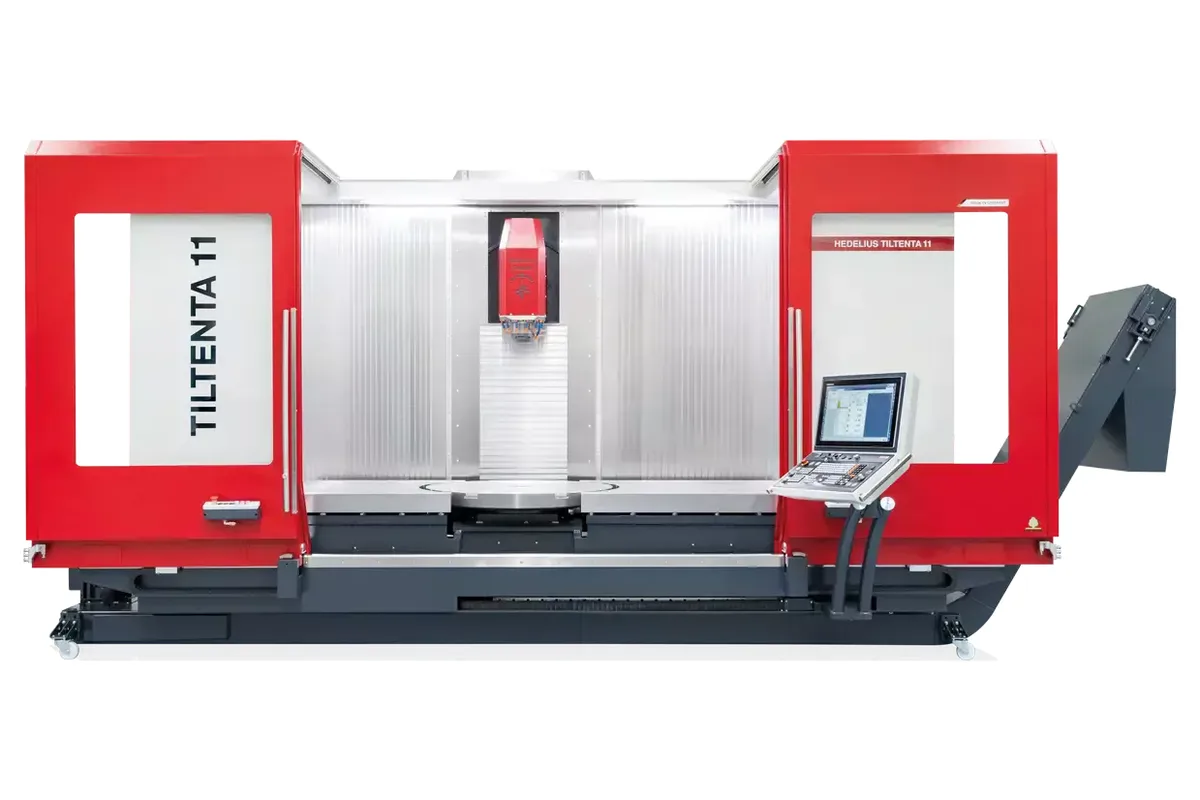

Hedelius TILTENTA 11-2600
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius TILTENTA 11-2600 cost?
Price estimate
We do not have a price for the Hedelius TILTENTA 11-2600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hedelius TILTENTA 11-2600 brings 1,100 mm (43.3 in) of Y travel to the swivel-spindle TILTENTA line. It is a 4/5-axis travelling column machining centre with 2,600 mm of vertical X travel, a Z travel of 900 / 1,005 mm (vertical / horizontal), and an integrated NC rotary table whose faceplate measures Ø 1,140 mm.
Wide Y and a large faceplate belong together. A rotary table is only as useful as the travel around it, and here a part filling the 1,450 mm interference circle can still be reached across its width. The rotary table carries 1,800 kg, or 2,200 kg as an option, turns at 8 min-1 and holds with 12,000 Nm. Hedelius applies its crossover idea to this model as well: long workpieces on the fixed table, 5-side complete processing on the rotary table, both in one machine.
The fixed table measures 3,080 x 1,100 mm with nine 18 mm T-slots at 125 mm spacing, for 4,000 kg (8,818 lb). X travel with the spindle horizontal is 2,030 mm. The head swivels from -98° to +98° around a 285 mm centre of rotation, with 2,500 Nm clamped.
Unlike the TILTENTA 10 with its SK50 spindle, this series uses 40-size spindles and gains a faster tool changer with 65 places as standard, at ca. 13 s chip to chip. Four spindles are listed, from 22 kW at 14,000 rpm in SK40 / BT40 to 50 kW with 217 Nm at 15,000 rpm in HSK A63, with an 18,000 rpm, 35 kW unit between. Feed force is 27,000 N. The machine weighs 20,500 kg (45,194 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,600 / 2,030 mm (102.4 / 79.9 in) (V/H: vertical / horizontal) |
| Y Axis Travel | 1,100 mm (43.3 in) |
| Z Axis Travel | 900 / 1,005 mm (35.4 / 39.6 in) (V/H: vertical / horizontal) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 185 Nm (136 lb-ft), 37 kW (49.6 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 15,000 min-1, 217 Nm (160 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 600 cm3/min, drilling Ø 50 mm (Ø 2.0 in), thread cutting M 27 |
| Spindle Centre of Rotation | 285 mm (11.2 in) |
| Spindle Swivel Range | -5° – +98° / -98° – +98° |
| Spindle Swivel Accuracy | < ±5" |
| Spindle Swivel Torque | 2,000 Nm (1,475 lb-ft) |
| Spindle Swivel Torque Clamped | 2,500 Nm (1,844 lb-ft) |
| Rotary Table Faceplate | Ø 1,140 mm (Ø 44.9 in) |
| Interference Circle Diameter | 1,450 mm (57.1 in) |
| Rotary Table Rotational Speed | 8 min-1 |
| Rotary Table T Slots | 18 mm (0.71 in) T-slots, number 9, distance 125 mm (4.9 in) |
| Indexing Accuracy | < ±5" |
| Axial Runout Accuracy | < 0.015 mm (< 0.0006 in) |
| Rotary Table Torque | 4,200 Nm (3,098 lb-ft) |
| Rotary Table Holding Torque | 12,000 Nm (8,851 lb-ft) |
| Rotary Table Load | 1,800 / 2,200 kg (3,968 / 4,850 lb) (optional) |
| Spindle Distance | 20 - 920 mm (0.8 - 36.2 in) |
| Table Size | 3,080 x 1,100 mm (121.3 x 43.3 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 9, distance 125 mm (4.9 in) |
| Max Table Load | 4,000 kg (8,818 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 27,000 N (6,070 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 65 / 135 / 180 / 245 / 329 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 / 390 mm (13.0 / 15.4 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 13 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 20,500 kg (45,194 lb) |
| Transport Height | 3,100 mm (122.0 in) |
| Transport Width | 3,650 / 3,520 mm (143.7 / 138.6 in) (optional) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,100 mm of Y travel on a swivel-spindle 5-axis machine
- Rotary table with Ø 1,140 mm faceplate for 1,800 kg, or 2,200 kg as an option
- Tool changer with 65 places as standard
- Fixed 3,080 x 1,100 mm table for 4,000 kg (8,818 lb)
- Spindles up to 50 kW and 217 Nm, or 18,000 rpm with 35 kW
Limitations
- Horizontal X travel is 2,030 mm against 2,600 mm vertical
- No pendulum operation listed for this length
- Rotary table speed is 8 min-1
- 40-size tooling: tools are limited to 5 kg, and the head clamps with 2,500 Nm
Best For
Frequently Asked Questions
01
X 2,600 mm with the spindle vertical and 2,030 mm horizontal, Y 1,100 mm, and Z 900 mm vertical or 1,005 mm horizontal. The spindle distance is 20 to 920 mm, and feeds are 40 m/min with a feed force of up to 27,000 N.
02
The faceplate is Ø 1,140 mm with nine 18 mm T-slots, and the interference circle is 1,450 mm. Workpiece weight is 1,800 kg, or 2,200 kg as an option. It rotates at 8 min-1 with 4,200 Nm of torque and 12,000 Nm of holding torque.
03
SK40 / BT40 at 14,000 rpm with 117 Nm and 22 kW or with 185 Nm and 37 kW, and HSK A63 at 18,000 rpm with 136 Nm and 35 kW or at 15,000 rpm with 217 Nm and 50 kW. The spindle swivels from -5° to +98° or from -98° to +98°.
04
65 tools as standard in a fast tool changer. The data sheet's theoretical capacities are 65 / 135 / 180 / 245 / 329. Tools may be 330 / 390 mm long and 5 kg, and chip-to-chip time is ca. 13 s for a pre-selected tool.
