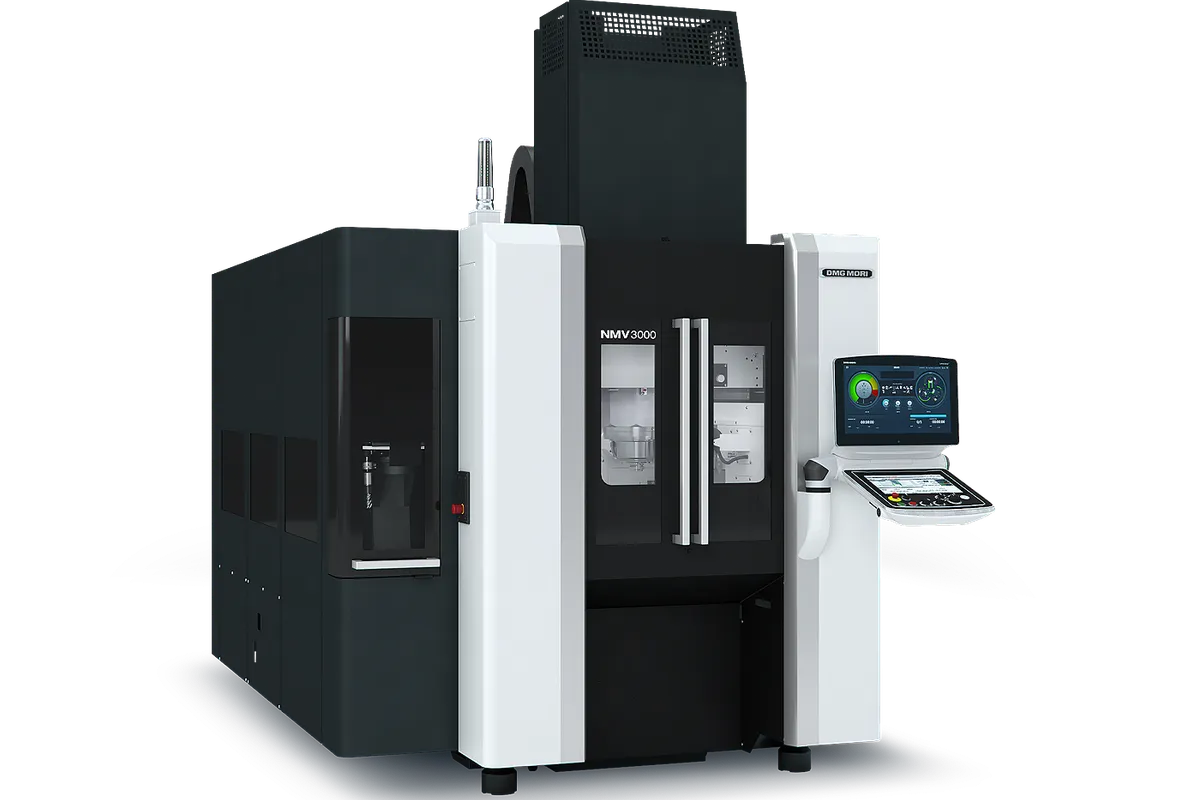

DMG Mori NMV 3000 DCG

$280,000 - $420,000 Updated 2026-03-13

Key Specifications

X Travel

500 mm (19.7 in)

Y Travel

350 mm (13.8 in)

Z Travel

510 mm (20.1 in)

Max Spindle

12,000 RPM (20,000 RPM optional)

Spindle Taper

BIG-PLUS BT40

Tool Capacity

30 (expandable to 60/120)

Overview

The DMG Mori NMV 3000 DCG is a vertical 5-axis machining center built for high-precision production of small, complex components. The DCG (Driven at the Center of Gravity) designation is the key differentiator — DMG Mori drives the axes through the center of gravity of the moving components, which kills vibration at the source and lets you push feeds harder without sacrificing surface finish.

Travel measures 500 x 350 x 510 mm (19.7 x 13.8 x 20.1 in) on X, Y, and Z. That is a compact envelope, purpose-built for parts that fit in your hand — medical implants, aerospace sensor housings, watch components, and small mold inserts. The trunnion-style rotary table tilts ±120 degrees on the A-axis and rotates 360 degrees continuous on C, giving full access to undercuts and complex contours without refixturing.

The standard spindle runs at 12,000 RPM with 18.5 kW (25 hp) through a BIG-PLUS BT40 taper, delivering 119 Nm of torque. A 20,000 RPM high-speed option is available for shops running aluminum and graphite electrodes. The MAPPS Fanuc control handles everything from conversational programming to full 5-axis simultaneous contouring, and the 24-inch ERGOline X multi-touch operation panel makes setup intuitive even for operators transitioning from 3-axis work.

The tool magazine holds 30 tools standard with expansion to 60 or 120 positions. Rapid traverse rates hit 36 m/min on all three linear axes. Machine weight sits around 6,800 kg (15,000 lb), which is substantial for a machine this compact and contributes to the vibration damping that makes the DCG concept work.

Positioning accuracy comes in at ±4 microns on the linear axes. The one-piece Meehanite casting provides a rigid foundation, and DMG Mori thermal displacement compensation keeps accuracy stable through long production runs. Direct competitors include the Matsuura MX-330, Mazak VARIAXIS i-300, and Makino D300. The NMV 3000 DCG differentiates on its DCG drive technology and the Fanuc-based MAPPS control, which is a draw for shops standardized on Fanuc. For production environments running small precision parts at moderate to high volumes, this machine delivers the surface finish consistency and positional accuracy that keeps scrap rates low. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	500 mm (19.7 in)
Y-Axis Travel	350 mm (13.8 in)
Z-Axis Travel	510 mm (20.1 in)
A Axis Tilt	±120° (240° total)
C Axis Rotation	360° continuous
Max Spindle Speed	12,000 RPM (20,000 RPM optional)
Spindle Taper	BIG-PLUS BT40
Spindle Motor Power	18.5 kW (25 hp)
Spindle Torque	119 Nm (88 ft-lb)
Max Workpiece Diameter	350 mm (13.8 in)
Max Workpiece Height	300 mm (11.8 in)
Max Table Load	100 kg (220 lb)
Tool Capacity	30 (expandable to 60/120)
Rapid Traverse Rate	36 m/min (1,417 ipm)
Positioning Accuracy	±0.004 mm (±4 µm)
CNC Control	MAPPS Fanuc (CELOS X compatible)
Machine Weight	6,800 kg (15,000 lb)
500 Mm	19.7 in.
350 Mm	13.8 in.
510 Mm	20.1 in.
300 Mm	11.8 in.
100 Kg	220.5 lbs.
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
Customer Benefitsshorter Set Up Timesno Great Experience Necessary To Take Measurements	Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

DCG (Driven at Center of Gravity) technology reduces vibration at the source, enabling higher feeds without sacrificing surface finish
±120° A-axis tilt provides excellent access to undercuts and complex geometries without refixturing
Compact footprint fits production cells where floor space is at a premium while still delivering full 5-axis simultaneous capability
MAPPS Fanuc control appeals to shops standardized on Fanuc, with a large operator talent pool in North America
6,800 kg machine weight from one-piece Meehanite casting provides rigidity well above typical machines in this envelope size
±4 micron positioning accuracy with thermal displacement compensation maintains precision through extended production runs
ORC (Octagonal Ram Construction) on the Z-axis column adds stiffness for heavy cutting in steel and titanium

Limitations

100 kg max table load limits this to small parts; anything approaching 80 kg net part weight gets tight with fixturing
BT40 taper is adequate for the work envelope but shops doing heavy titanium roughing may want the rigidity of a CAT50 or HSK-A63 platform
MAPPS Fanuc control lacks some of the advanced 5-axis cycle features found on Siemens and Heidenhain platforms
350 mm Y-axis travel is the tightest dimension and constrains part geometry in that direction
DMG Mori service costs are premium and parts availability can lag in some regions

Best For

Medical device manufacturers producing small titanium implants, bone screws, and surgical instrument components Aerospace shops machining precision sensor housings, actuator bodies, and small structural fittings Mold and die shops cutting graphite electrodes and small cavity inserts with tight surface finish requirements Watch and precision instrument manufacturers needing full 5-axis contouring on miniature parts Production environments running moderate to high volumes of small complex parts where cycle time matters Shops standardized on Fanuc control looking for a production-grade 5-axis platform

Frequently Asked Questions

01 What does a DMG Mori NMV 3000 DCG cost?

New NMV 3000 DCG machines typically price between $280,000 and $420,000 depending on spindle selection, tool magazine size, and automation options. Used units from 2015-2018 appear in the $140,000-$200,000 range.

02 What does DCG mean?

DCG stands for Driven at the Center of Gravity. DMG Mori positions the ball screw drive at the center of gravity of the moving components, eliminating the pitching moment that conventional drive placements create. This means less vibration, better surface finish at higher feed rates, and longer tool life.

03 How does the NMV 3000 DCG compare to the Mazak VARIAXIS i-300?

Both target compact 5-axis production of small parts. The VARIAXIS i-300 offers an integrated Auto Work Changer for lights-out operation and higher tool capacity (up to 505 tools). The NMV 3000 DCG counters with DCG drive technology for lower vibration cutting. If automation is the priority, the Mazak wins. If surface finish matters more, the DMG Mori has the edge.

04 Can the NMV 3000 DCG handle titanium?

Yes, the standard 12,000 RPM spindle with 119 Nm of torque handles titanium at moderate material removal rates. The 6,800 kg machine weight and DCG drive provide the rigidity needed for Ti-6Al-4V.

05 What automation options are available?

The NMV 3000 DCG supports pallet pool systems and robotic loading via PH Cell and WH Cell systems from DMG Mori.
