AWEA MVP-8040

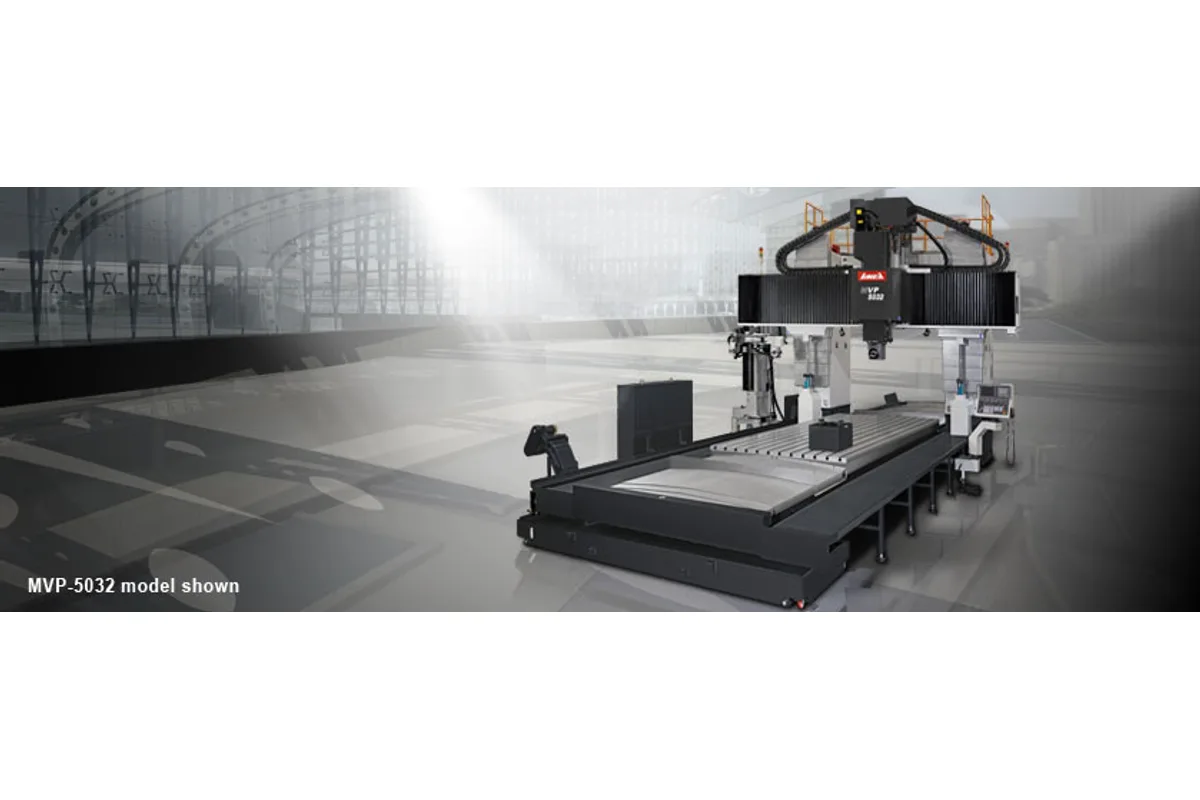

Image: awea.com, AWEA
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the AWEA MVP-8040 cost?
Price estimate
We do not have a price for the AWEA MVP-8040 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The AWEA MVP-8040 is the top of the MVP range: 8,000 mm (315.0 in) of X travel, 4,000 mm (157.5 in) of Y, and an 8,040 x 3,010 mm (316.5 x 118.5 in) table. It is also the one model whose sheet departs from the pattern of the rest of the series in three rows.
Table load is printed as 25,000 kg (55,115 lb). The MVP-7040 and the MVP-8032 are both listed at 20,000 kg (44,092 lb). Machine weight is 122,000 kg (268,959 lb), where the MVP-7040 is 93,500 kg (206,129 lb). And X rapid traverse is given as 20 m/min (787 ipm), against 7.5 m/min (295 ipm) for the MVP-7040. These are the figures as AWEA prints them for this model, and a buyer for whom the load or the rapid rate decides the purchase should have them confirmed in the quotation.
The remaining rows follow the wide-frame siblings. Y and Z rapid at 10 m/min (394 ipm), the cross rail at 3 m/min (118 ipm) over 1,250 mm (49.2 in) of W. The columns stand 3,500 mm (137.8 in) apart. Listed VDI accuracy is P = 0.040 mm over full travel with P = 0.030 mm repeatability, and the coolant tank holds 1,200 L.
Its spindle is no larger than on the smallest MVP. That means a 22 / 26 kW (30 / 35 HP) motor, BT 50 taper, 10 ~ 4,000 rpm vertical and 20 ~ 3,000 rpm horizontal. The table rests on 4 guide-way rails, and the X ball screw has the damping mechanism AWEA fits to its long models.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 8,000 mm (315.0 in) |
| Y Axis Travel | 4,000 mm (157.5 in) |
| Z Axis Travel | 1,000 mm (39.4 in) (Opt. 1,200 / 1,400 mm) |
| W Axis Travel | 1,250 mm (49.2 in) |
| Table Size | 8,040 x 3,010 mm (316.5 x 118.5 in) |
| Max Table Load | 25,000 kg (55,115 lb) |
| Distance Between Columns | 3,500 mm (137.8 in) |
| Distance Spindle Nose to Table | 200 ~ 2,450 mm (7.9 ~ 96.5 in) |
| Max Spindle Speed | V : 10 ~ 4,000 rpm ; H : 20 ~ 3,000 rpm |
| Spindle Motor Power | 22 / 26 kW (30 / 35 HP) |
| Spindle Taper | BT 50 |
| Tool Capacity | 60 T |
| Max Tool Diameter (full magazine) | Ø127 / Ø215 mm (Ø5.0 / Ø8.5 in) |
| Max Tool Length | 400 mm (15.7 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Positioning Accuracy Jis B 6338 | ± 0.010 mm / Full Travel |
| Positioning Accuracy VDI 3441 | P = 0.040 mm / Full Travel |
| Repeatability Jis B 6338 | ± 0.003 mm |
| Repeatability VDI 3441 | P = 0.030 mm |
| Rapid Traverse X | 20 m/min (787 ipm) |
| Rapid Traverse Y | 10 m/min (394 ipm) |
| Rapid Traverse Z | 10 m/min (394 ipm) |
| Rapid Traverse W | 3 m/min (118 ipm) |
| Cutting Feed Rate | 5 m/min (197 ipm) |
| Power Requirement | AC 220 + 10% 3 phase / 80 KVA |
| Air Pressure Requirement | 5 ~ 8 kg/cm² |
| Hydraulic Tank Capacity | 290 L |
| Lubrication Tank Capacity | 6 L |
| Coolant Tank Capacity | 1,200 L |
| Machine Weight | 122,000 kg (268,959 lb) |
Specifications sourced from awea.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Largest work area in the series: 8,040 x 3,010 mm (316.5 x 118.5 in) table, 8,000 x 4,000 mm travels
- Table load printed as 25,000 kg (55,115 lb), the highest in the MVP range
- X rapid traverse listed at 20 m/min (787 ipm)
- Working table fully supported with 4 heavy duty guide-way rails
- Electrical requirement stays at 80 KVA
Limitations
- 122,000 kg (268,959 lb) machine weight, against 95,000 kg (209,436 lb) for the MVP-8032
- 22 / 26 kW (30 / 35 HP) spindle, the same motor rating as the MVP-4032, on a table rated for far heavier parts
- VDI positioning accuracy of P = 0.040 mm over full travel
- Cutting feed rate of 5 m/min (197 ipm), a quarter of the listed X rapid
Best For
Frequently Asked Questions
01
AWEA's specification lists 25,000 kg (55,115 lb) on the 8,040 x 3,010 mm (316.5 x 118.5 in) table. Every other MVP model from 6,000 mm of X travel upward, the MVP-8032 included, is listed at 20,000 kg (44,092 lb).
02
The listed rapid rates are 20 m/min (787 ipm) in X, 10 m/min (394 ipm) in Y and Z, and 3 m/min (118 ipm) in W. Cutting feed rate is 5 m/min (197 ipm). For comparison, the MVP-8032 is listed at 7.5 m/min (295 ipm) in X and 12 m/min (472 ipm) in Y.
03
The MVP-8040 is listed at 122,000 kg (268,959 lb) and the MVP-8032 at 95,000 kg (209,436 lb). Both need AC 220 three-phase power at 80 KVA and 5 ~ 8 kg/cm² air. The MVP-8040 has a 1,200 L coolant tank where the MVP-8032 has 750 L; the hydraulic tank is 290 L on both.
04
No. The spindle rows are the same across the series: BT 50, 22 / 26 kW (30 / 35 HP), 10 ~ 4,000 rpm vertical, 20 ~ 3,000 rpm horizontal. AWEA offers a direct drive spindle or a built-in spindle in place of the standard 2-step gear transmission, and optional extension, 35° angular and universal heads.
