Zayer TEBAS G

Q: How much does the Zayer TEBAS G cost?

The price estimate for the Zayer TEBAS G is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/zayer-tebas-g#price; the request is passed to Zayer or an authorised dealer.

Specs verified 2026-10-04 · zayer.com Updated 2026-10-04

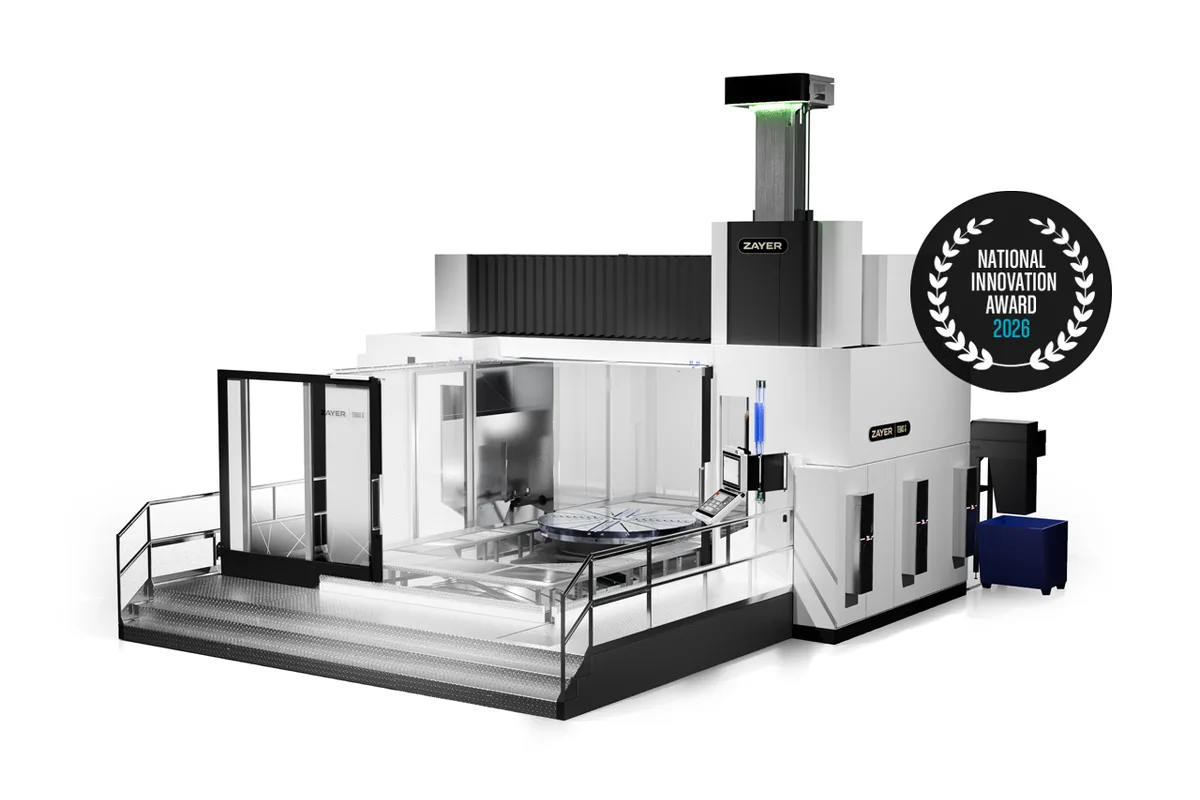

Zayer TEBAS G bridge type machine with rotary table

Image: zayer.com, Zayer

Key Specifications

Tool Capacity

20; 40 - 60 - 80 - 120 optional

Rapid Traverse

up to 30,000 mm/min (1,181 ipm)

Accuracy

0.008/4,000 mm

Repeatability

0.005/4,000 mm

milling turning rotary table

Ø 2,200 mm (86.6 in)

distance between columns

3,400 mm (133.9 in)

How much does the Zayer TEBAS G cost?

Price estimate

Uncertain

We do not have a price for the Zayer TEBAS G that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Zayer TEBAS G is a bridge type machine built around a rotary table that also travels. The table is Ø 2,200 mm (86.6 in), serves for both milling and turning, and moves 2,500 mm (98.4 in) along the longitudinal axis on a ball screw. Zayer states that the machine can mill, turn and grind.

The numbers are unlike the other TEBAS models. Power is 101 kW (135.4 hp) and the spindle head speed is 10,000 rpm, both without options, where the TEBAS lists 43 kW (57.7 hp) and 6,000 rpm. A TWIST head with electrospindle is the standard head, and the only other head entry is an optional elbow rotation. According to Zayer the rotary table is driven by a torque motor.

The bridge spans 3,400 mm (133.9 in) between columns and gives 4,100 mm (161.4 in) of cross travel, with 1,750 mm (68.9 in) of vertical travel on two ball screws. Rapid feed is up to 30,000 mm/min (1,181 ipm) and working feed up to 25,000 mm/min (984 ipm). Every linear axis on this machine is a ball screw.

Two rows need explaining by Zayer before an order. Allowed weight on the table is printed as 20,000/12,000 kg (44,092/26,455 lb) and the maximum distance from table to spindle nose as 1,490 / 1,790 mm (58.7 / 70.5 in), in both cases without saying what each figure applies to. The longitudinal travel is printed with a split of -400/+2,100, which places most of the stroke on one side. The magazine starts at 20 tools, with 40, 60, 80 or 120 optional. A complete enclosure with ceiling is standard.

Full Specifications

Parameter	Value
Milling Turning Rotary Table	Ø 2,200 mm (86.6 in)
Distance Between Columns	3,400 mm (133.9 in)
X Axis Travel	2,500 mm (98.4 in) (-400/+2,100)
Y Axis Travel	4,100 mm (161.4 in)
Z Axis Travel	1,750 mm (68.9 in)
Max Distance Table to Spindle Nose	1,490 / 1,790 mm (58.7 / 70.5 in)
Rapid Traverse Rate	up to 30,000 mm/min (1,181 ipm)
Cutting Feed Rate	up to 25,000 mm/min (984 ipm)
Longitudinal Axis Drive	ball screw
Cross Axis Drive	ball screw
Vertical Axis Drive	2 ball screw
Power	101 kW (135.4 hp)
Spindle Speed	10,000 rpm
Positioning Accuracy	0.008/4,000 mm
Repeatability	0.005/4,000 mm
Max Table Load	20,000/12,000 kg (44,092/26,455 lb)
Tool Capacity	20; 40 - 60 - 80 - 120 optional

Specifications sourced from zayer.com — verified 2026-10-04

Strengths & Limitations

Strengths

Milling, turning and grinding on one machine, per Zayer's description
Ø 2,200 mm (86.6 in) rotary table driven by a torque motor, with 2,500 mm (98.4 in) of travel
101 kW (135.4 hp) and 10,000 rpm at the spindle head
TWIST head with electrospindle as the standard head
Complete enclosure with ceiling is standard

Limitations

One size only: 2,500 mm (98.4 in) of X, 4,100 mm (161.4 in) of Y and 1,750 mm (68.9 in) of Z, with no options listed
The standard magazine holds 20 tools, fewer than the 30 of the TEBAS
Zayer prints the table load as 20,000/12,000 kg (44,092/26,455 lb) without saying which case each figure covers
No table speed or turning torque is published

Best For

Round parts up to the Ø 2,200 mm (86.6 in) table that need turning and milling in one clamping Materials with high technological requirements, in Zayer's words Complex parts finished by grinding on the same machine Shops that want to combine turning and bridge milling in one setup

Frequently Asked Questions

01 What can the Zayer TEBAS G do that the TEBAS cannot?

Turn and grind. Zayer describes the TEBAS G as a multifunction machine that can mill, turn and grind, thanks to a milling and turning rotary table that is standard equipment. The TEBAS is a milling machine with a plain moving table.

02 How big is the TEBAS G rotary table?

Ø 2,200 mm (86.6 in). It travels 2,500 mm (98.4 in) on the longitudinal axis, driven by a ball screw, and rotates on a torque motor. Allowed weight on the table is printed as 20,000/12,000 kg (44,092/26,455 lb); Zayer's table does not label the two figures.

03 What spindle does the TEBAS G have?

The specification table lists 101 kW (135.4 hp) and a spindle head speed of 10,000 rpm. The standard head is the TWIST head with electrospindle. Elbow rotation is listed as an option.

04 What are the travels of the TEBAS G?

Longitudinal travel is 2,500 mm (98.4 in), cross travel 4,100 mm (161.4 in) and vertical travel 1,750 mm (68.9 in). The distance between columns is 3,400 mm (133.9 in). Positioning accuracy is 0.008/4,000 mm and repeatability 0.005/4,000 mm.

05 How many tools does the TEBAS G hold?

20 tools in the standard magazine. Magazines for 40, 60, 80 or 120 tools are optional. A chip conveyor and a complete enclosure with ceiling are standard.
