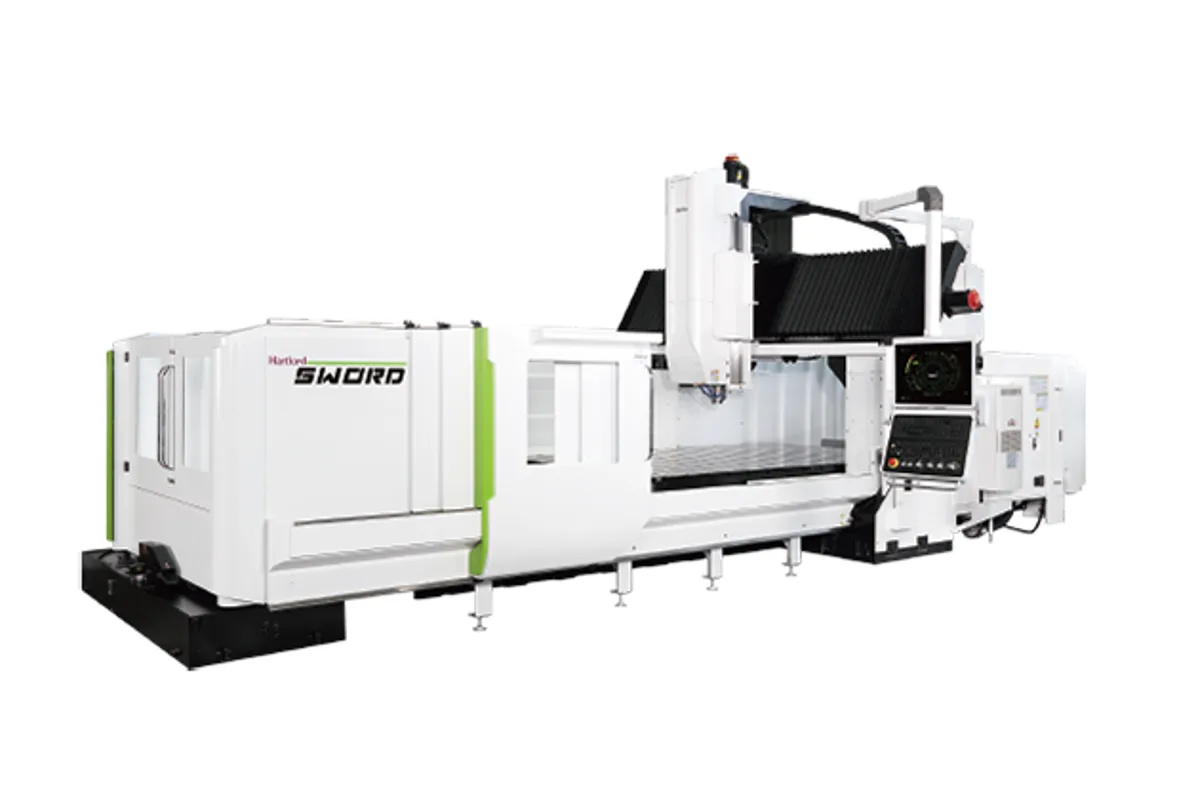

Hartford SW-526
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
t slots
How much does the Hartford SW-526 cost?
Price estimate
We do not have a price for the Hartford SW-526 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hartford SW-526 is the wide five-metre SW: a box-guideway double-column machining center with 5,000 mm (196.9 in) of X travel, 2,600 mm (102.4 in) of Y and a 5,000 x 2,500 mm (196.9 x 98.4 in) table that carries 15,000 kg (33,069 lb).
Under that table Hartford lists 4 box guideways on the base. More ways under a wide table spread the load and stop the table edges from deflecting when a heavy part sits off-centre or a cut is taken near the side. Both the X and the Y ballscrews are supported on this model.
How fast does the spindle turn? In gear form, 4,000 / 6,000 rpm. In DDS form, 10,000 / 12,000 rpm. Both are #50, and the motor can be 15/18.5 kW, 18.5/22 kW, 22/26 kW or 30/37 kW, the first being the base rating (Cont. / 30 min). Hartford states spindle run-out within 5μm.
The Z ram travels 780 mm, or 1,070 mm when the option is ordered, and its square guide is credited with a 50 % cut in cutting vibration. Tool storage is an S type listed as S: 20, or an arm type with 32 tools, or 40.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 5,000 x 2,500 mm (196.9 x 98.4 in) |
| Max Table Load | 15,000 kg (33,069 lb) |
| T-Slots | 28 x 250 (20) mm |
| X Axis Travel | 5,000 mm (196.9 in) |
| Y Axis Travel | 2,600 mm (102.4 in) |
| Z Axis Travel | 780 opt. 1,070 mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 4,000 / 6,000 rpm |
| Spindle Speed Dds | 10,000 / 12,000 rpm |
| Tool Capacity | S: 20 A: 32(40) pcs |
| Tool Shank | BT-50(BBT-50 /CAT-50 /DIN69871A) |
| Spindle Motor Power | 15/18.5 opt. 18.5/22, 22/26, 30/37 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4 box guideways on the base under a 2,500 mm wide table
- Supported X and Y ballscrews
- 15,000 kg (33,069 lb) table load
- Square-guide Z ram, with 50 % less cutting vibration per Hartford
- #50 gear spindle at 4,000 / 6,000 rpm or DDS at 10,000 / 12,000 rpm
Limitations
- Table load is only slightly above the 14,000 kg (30,864 lb) of the narrower SW-523
- Gear head ends at 6,000 rpm
- Standard Z travel is 780 mm
- Magazine sizes stop at 40 tools
Best For
Frequently Asked Questions
01
5,000 x 2,500 mm (196.9 x 98.4 in), with T-slots listed as 28 x 250 (20) mm and an average load of 15,000 kg (33,069 lb).
02
X 5,000 mm (196.9 in), Y 2,600 mm (102.4 in) and Z 780 mm, with 1,070 mm optional. The spindle nose is #50 with BT-50 tool shanks.
03
A headline on the page credits the new design of Z-axis square guide with reducing cutting vibration by 50 %. The box guideways use hybrid air suspension, said to reduce quadrant error by 50% and backlash error by 30%.
04
With 4 box guideways on the base for stability, according to Hartford, and with X and Y ballscrew support. The column has 3 box guideways and the crossbeam is a slant beam structure.
More from Hartford
Other Vertical Machining Centers (VMC)
Vision Wide MN-8023 / MN-8030
Brother TC-20A

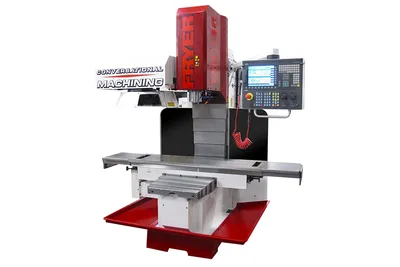

Fryer MB-14R
