Hartford LG-1570 NEO

Q: How much does the Hartford LG-1570 NEO cost?

The price estimate for the Hartford LG-1570 NEO is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hartford-lg-1570-neo#price; the request is passed to Hartford or an authorised dealer.

Specs verified 2026-10-04 · hartfordcnc.com Updated 2026-10-04

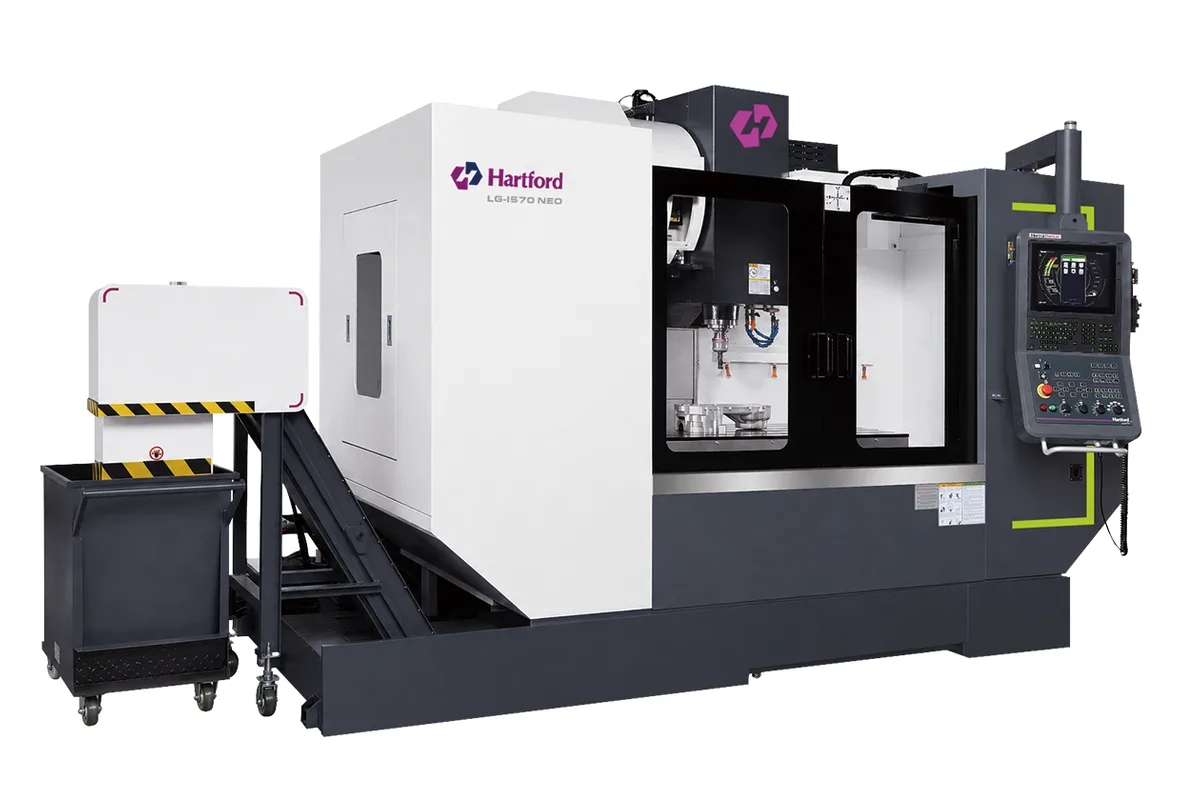

Image: hartfordcnc.com, Hartford

Key Specifications

Spindle Taper

#40

Tool Capacity

A: 24(30/40) pcs

Table Size

1,600 x 700 mm (63.0 x 27.6 in)

Spindle Power

11/15 opt. 15/18.5 kW (Cont. / 30 min)

max table load

1,000 kg (2,205 lb)

x axis travel

1,500 mm (59.1 in)

How much does the Hartford LG-1570 NEO cost?

Price estimate

Uncertain

We do not have a price for the Hartford LG-1570 NEO that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

With 1,500 mm (59.1 in) of X travel, the Hartford LG-1570 NEO is the longer of the two NEO vertical machining centers. Y travel is 700 mm (27.6 in), Z is 650 mm (25.6 in), and the table is 1,600 x 700 mm (63.0 x 27.6 in).

A long, fairly deep table on a 40-taper machine raises one question first: how much weight? Hartford rates the table for an average load of 1,000 kg (2,205 lb). That figure does not grow with the extra length over the LG-1370 NEO, so the LG-1570 NEO is a machine for long parts and rows of fixtures, not for heavier ones.

Spindle choices follow the rest of the LG family. There is a pulley spindle at 8,000 / 10,000 / 12,000 rpm and a DDS spindle at 10,000 / 12,000 / 15,000 rpm, each on a #40 nose with BT40 shanks. The drive motor is 11 / 15 kW, with a 15 / 18.5 kW option. The changer is an arm type with 24 pockets, or 30 or 40.

Hartford's own notes on the NEO stress rigidity where a long X axis needs it: an enlarged contact area between column and base for X/Y stiffness, and a tool magazine that rests on a seated locking mechanism instead of hanging its weight on the column. The Z-axis feed is direct-driven by a large motor and runs without a counterbalance. Coolant through the spindle comes as a compact modular unit.

Full Specifications

Parameter	Value
Table Size	1,600 x 700 mm (63.0 x 27.6 in)
Max Table Load	1,000 kg (2,205 lb)
X Axis Travel	1,500 mm (59.1 in)
Y Axis Travel	700 mm (27.6 in)
Z Axis Travel	650 mm (25.6 in)
Spindle Taper	#40
Spindle Speed Pulley	8,000 / 10,000 / 12,000 rpm
Spindle Speed Dds	10,000 / 12,000 / 15,000 rpm
Tool Capacity	A: 24(30/40) pcs
Tool Shank	BT40 (BBT / CAT / DIN)
Spindle Motor Power	11/15 opt. 15/18.5 kW (Cont. / 30 min)

Specifications sourced from hartfordcnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,500 mm (59.1 in) X travel over a 1,600 x 700 mm (63.0 x 27.6 in) table
Enlarged column-to-base contact area for X/Y axis rigidity, as described by Hartford
Up to 40 tools in the arm-type magazine (24 standard, 30 or 40 listed)
Optional 15 / 18.5 kW spindle motor (Cont. / 30 min)
Compact modular coolant-through-spindle unit that does not increase the footprint

Limitations

Table load of 1,000 kg (2,205 lb) is low for a 1,600 mm long table when the workpiece is steel
Z travel of 650 mm (25.6 in) is no greater than on the LG-1370 NEO
#40 spindle only, with a top listed speed of 15,000 rpm
No rapid traverse or feed figures on the product page

Best For

Long aluminium or steel parts up to 1,500 mm (59.1 in) Three or four vises side by side for batch production Plate work that needs the full 700 mm (27.6 in) Y stroke Lines where the 20% footprint reduction Hartford cites frees up floor space

Frequently Asked Questions

01 How much weight can the LG-1570 NEO table carry?

The average load rating is 1,000 kg (2,205 lb) on a 1,600 x 700 mm (63.0 x 27.6 in) table. Fixtures and vises count toward that figure, so check the total before planning steel plates that cover the whole table.

02 What spindle speeds are available on the LG-1570 NEO?

Hartford lists 8,000 / 10,000 / 12,000 rpm with the pulley spindle and 10,000 / 12,000 / 15,000 rpm with the DDS direct-drive spindle. Both use a #40 nose. The motor is 11 / 15 kW, optionally 15 / 18.5 kW, quoted as continuous / 30 min ratings.

03 Does the LG-1570 NEO have coolant through the spindle?

Hartford describes a compact CTS (Coolant Through Spindle) modular design for the NEO that takes up no extra floor space and is easy to reach for maintenance. The page does not give its pressure or state whether it is standard, so confirm that in the quotation.

04 How does the LG-1570 NEO relate to the LG-2100?

The LG-2100 is the next step up in the LG family: 2,050 mm (80.7 in) of X, 1,020 mm (40.2 in) of Y and a table rated for 2,500 kg (5,511 lb). It is the choice once parts outgrow the 700 mm (27.6 in) Y travel or the 1,000 kg (2,205 lb) table of the LG-1570 NEO.
