Tajmac-ZPS MCV1260i

Q: How much does the Tajmac-ZPS MCV1260i cost?

The price estimate for the Tajmac-ZPS MCV1260i is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/tajmac-mcv1260i#price; the request is passed to Tajmac-ZPS or an authorised dealer.

Specs verified 2026-10-04 · tajmac-zps.cz Updated 2026-10-04

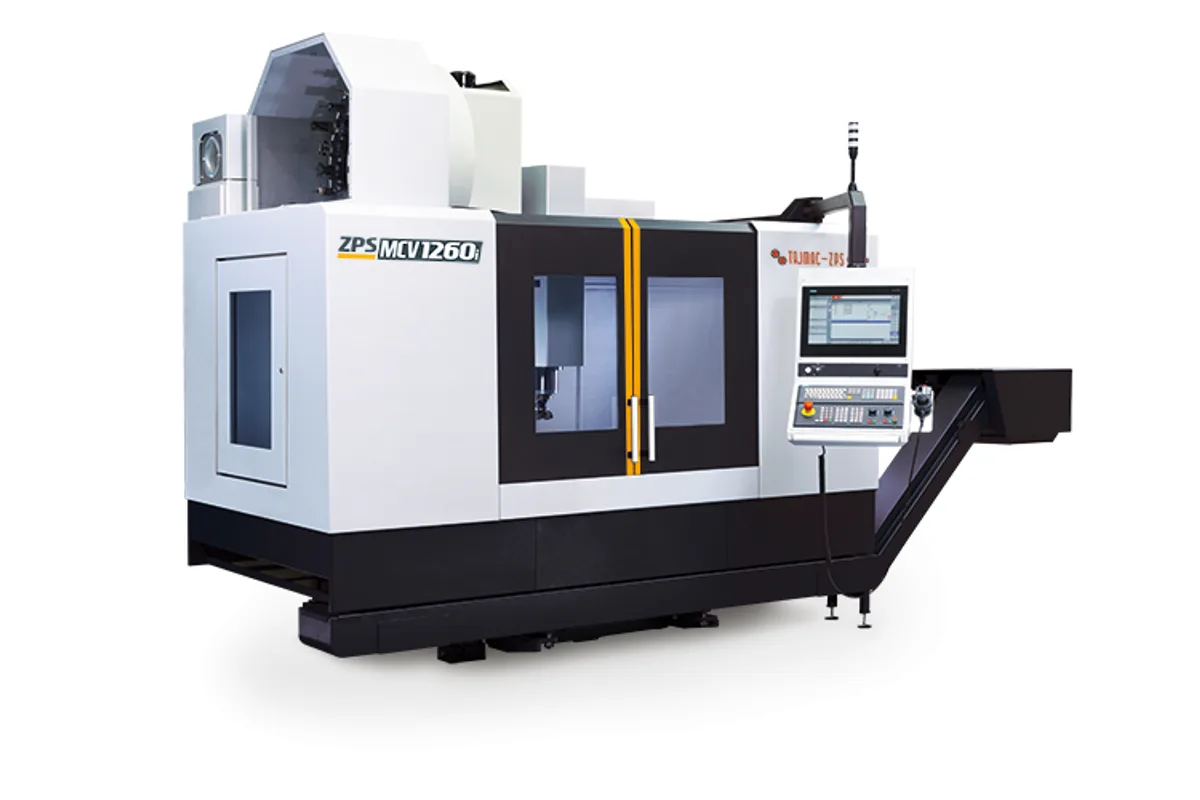

Tajmac-ZPS MCV1260i vertical machining centre

Image: tajmac-zps.cz, Tajmac-ZPS

Key Specifications

Tool Capacity

30 (60 option) for ISO 40 / CAT 40 / BT 40 / HSK-A63; 24 (48 option) for ISO 50 / CAT 50 / BT 50 / HSK-A80

Table Size

1,500 × 620 mm (59.1 × 24.4 in)

Accuracy

0.008 mm (ISO 230-2)

Repeatability

0.0034 mm (ISO 230-2)

x axis travel

1,300 mm (51.2 in)

y axis travel

640 mm (25.2 in)

How much does the Tajmac-ZPS MCV1260i cost?

Price estimate

Uncertain

We do not have a price for the Tajmac-ZPS MCV1260i that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The MCV1260i is a three-axis vertical machining centre of C-frame layout with travels of 1,300 x 640 x 800 mm (51.2 x 25.2 x 31.5 in) and a 1,500 × 620 mm table rated for 1,350 kg. Tajmac-ZPS sells it under the ZPS name and offers it with six spindle units, so the same casting can be a heavy 50-taper roughing machine or an 18,000 rpm finishing machine.

Choosing the spindle is the main decision. With a planetary gearbox there are three units: ISO 40 or HSK-A80 at 10,000 rpm with 244 / 342 Nm, ISO 50 at 6,000 rpm with 519 / 779 Nm, and ISO 50 at 8,000 rpm with 306 / 458 Nm. A belt-driven ISO 40 unit reaches 12,000 rpm on 95 / 143 Nm. Two electrospindles, ISO 40 at 15,000 rpm and HSK-A63 at 18,000 rpm, both give 25 / 31 kW and 160 / 200 Nm. The maker adds that more variants are available on inquiry.

The structure is two stationary castings, base and column, with linear rails with rollers on all axes and direct position measurement by linear absolute rulers. Rapid traverse and maximal working feed are both 40 m/min, with 5 m/s2 of acceleration. Listed accuracy to ISO 230-2 is a bidirectional positioning error of 0.008 mm and a repeatability of 0.0034 mm. Electronic compensation of thermal dilatations is a standard accessory.

Tool capacity follows the taper: 30 tools for the 40-size tapers and 24 for the 50-size, with a second magazine as an option that doubles each. An automatic pallet changer is optional too. It swaps 1,320 × 620 mm pallets carrying 900 kg in 15 s, depending on the application, and reduces Z travel to 775 mm.

In its basic version the machine has chip buckets; a steel-belt chip conveyor is the upgrade for higher chip volumes. Controls offered are Heidenhain, Sinumerik and Fanuc. The floor plan without chip conveyor is 3,200 × 2,120 mm and the weight 8,300 kg.

Full Specifications

Parameter	Value
X Axis Travel	1,300 mm (51.2 in)
Y Axis Travel	640 mm (25.2 in)
Z Axis Travel	800 mm (31.5 in)
Distance Spindle Nose to Table	125 – 925 mm (4.9 – 36.4 in)
Cutting Feed Rate	40 m/min
Rapid Traverse Xyz	40 m/min
Acceleration	5 m/s2
Table Size	1,500 × 620 mm (59.1 × 24.4 in)
T-Slots	5 × 18 mm × 125 mm
Max Table Load	1,350 kg (2,976 lb)
Positioning Accuracy	0.008 mm (ISO 230-2)
Repeatability	0.0034 mm (ISO 230-2)
Measuring System	direct (linear absolute rulers)
Spindle Unit Gearbox Iso 40 HSK A80 10000 RPM	10,000 rpm; 22.5 / 31.5 kW (30.2 / 42.2 hp); 244 / 342 Nm (180 / 252 lb-ft)
Spindle Unit Gearbox Iso 50 6000 RPM	6,000 rpm; 19.5 / 29.3 kW (26.1 / 39.3 hp); 519 / 779 Nm (383 / 575 lb-ft)
Spindle Unit Gearbox Iso 50 8000 RPM	8,000 rpm; 22.5 / 33.8 kW (30.2 / 45.3 hp); 306 / 458 Nm (226 / 338 lb-ft)
Spindle Unit Belt Iso 40 12000 RPM	12,000 rpm; 19.5 / 29.3 kW (26.1 / 39.3 hp); 95 / 143 Nm (70.1 / 105 lb-ft)
Spindle Unit Electrospindle Iso 40 15000 RPM	15,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft)
Spindle Unit Electrospindle HSK A63 18000 RPM	18,000 rpm; 25 / 31 kW (33.5 / 41.6 hp); 160 / 200 Nm (118 / 148 lb-ft)
Tool Capacity	30 (60 option) for ISO 40 / CAT 40 / BT 40 / HSK-A63; 24 (48 option) for ISO 50 / CAT 50 / BT 50 / HSK-A80
Max Tool Diameter (full magazine)	80 mm (3.1 in), 160 mm (6.3 in) without adjacent tools (ISO 40); 110 mm (4.3 in), 210 mm (8.3 in) without adjacent tools (ISO 50)
Max Tool Length	350 mm (13.8 in)
Max Tool Weight	8 kg (18 lb) (ISO 40); 20 kg (44 lb) (ISO 50)
Tool Change Time	2.9 s left changer, 3.9 s right changer (ISO 40); 3.5 s left changer, 3.9 s right changer (ISO 50)
Pallet Size	1,320 × 620 mm (52.0 × 24.4 in) (automatic pallet changer, option)
Max Pallet Load	900 kg (1,984 lb) (automatic pallet changer, option)
Pallet Exchange Time	15 s (according to technological application)
Z Axis Travel with Pallet Changer	775 mm (30.5 in)
Power Requirement	3 × 400 V/50 Hz
Power Input	33 kVA
Air Pressure	0.6 – 0.8 MPa
Machine Floor Plan	3,200 × 2,120 mm (126.0 × 83.5 in)
Machine Height	3,065 mm (120.7 in)
Machine Weight	8,300 kg (18,298 lb)
CNC Control	Heidenhain, Sinumerik, Fanuc

Specifications sourced from tajmac-zps.cz — verified 2026-10-04

Strengths & Limitations

Strengths

Six spindle units, from an ISO 50 gearbox spindle with 519 / 779 Nm to an 18,000 rpm HSK-A63 electrospindle
Travels of 1,300 x 640 x 800 mm (51.2 x 25.2 x 31.5 in) with 40 m/min rapid traverse
Direct measuring with linear absolute rulers on X, Y and Z
Table load of 1,350 kg (2,976 lb) on a 1,500 × 620 mm (59.1 × 24.4 in) table
Optional automatic pallet changer with a 15 s pallet exchange time
Choice of Heidenhain, Sinumerik or Fanuc control

Limitations

The basic version has chip buckets; a chip conveyor is an upgrade
With the pallet changer the pallet load falls to 900 kg (1,984 lb) and Z travel to 775 mm (30.5 in)
Y travel is 640 mm (25.2 in), against 840 mm on the MCV1680i
Tool axial cooling through the spindle, probes and the rotary table are optional equipment

Best For

Mould and die work with one of the 15,000 rpm or 18,000 rpm electrospindles Steel and cast iron roughing with the ISO 50 gearbox spindle Plate and prismatic parts up to 1,350 kg (2,976 lb) Unattended running with the optional automatic pallet changer

Frequently Asked Questions

01 Which spindles are available on the MCV1260i?

The brochure lists six units. Planetary gearbox: ISO 40 or HSK-A80 at 10,000 rpm with 22.5 / 31.5 kW, ISO 50 at 6,000 rpm with 19.5 / 29.3 kW, and ISO 50 at 8,000 rpm with 22.5 / 33.8 kW. Belt transmission: ISO 40 at 12,000 rpm. Electrospindle: ISO 40 at 15,000 rpm and HSK-A63 at 18,000 rpm, each with 25 / 31 kW.

02 How many tools does the changer hold?

30 for ISO 40, CAT 40, BT 40 and HSK-A63, or 24 for ISO 50, CAT 50, BT 50 and HSK-A80. A second magazine is optional and brings the totals to 60 and 48. Tool change time is 2.9 s on the left changer for the 40-size tapers and 3.5 s for the 50-size; the right changer takes 3.9 s.

03 What changes with the automatic pallet changer?

The working surface becomes a 1,320 × 620 mm pallet with a maximal load of 900 kg, and travel in the Z-axis is 775 mm. Pallet exchange time is 15 s according to the technological application. A fourth-axis rotary table can be connected into the automatic pallet change as an option.

04 How does the MCV1260i compare with the MCV1680i?

The MCV1680i is the next size up: 1,700 mm of X and 840 mm of Y and Z, a 1,800 × 780 mm table for 2,500 kg, and a weight of 13,800 kg. The MCV1680i is also slower, with 30 m/min rapids against 40 m/min here. The MCV1260i weighs 8,300 kg.

05 What does the machine need for installation?

A nominal voltage of 3 × 400 V/50 Hz, an operational power input of 33 kVA depending on the motor, and compressed air at 0.6 – 0.8 MPa. The floor plan without chip conveyor is 3,200 × 2,120 mm, the maximal working height 3,065 mm and the weight 8,300 kg (18,298 lb).
