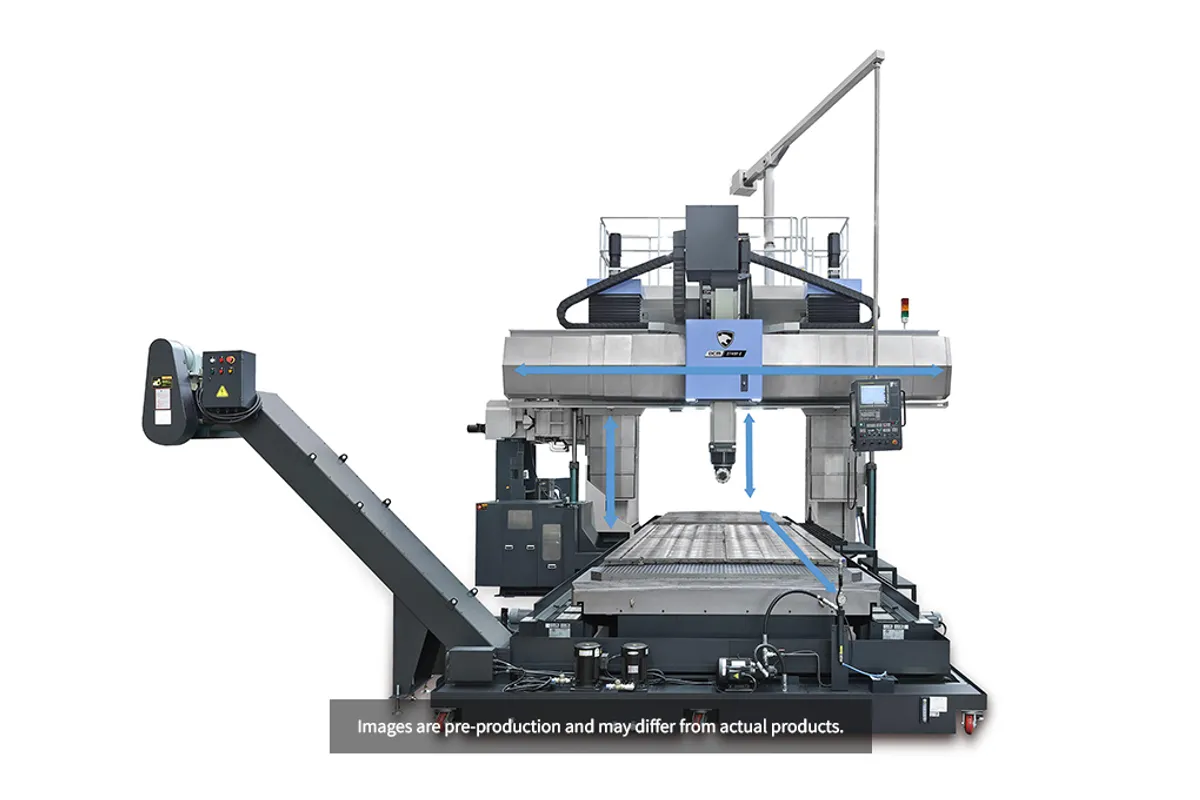

DN Solutions DCM 37100 F II
Key Specifications
x axis travel
y axis travel
z axis travel
rapid traverse x
rapid traverse y
rapid traverse z
Overview
The DN Solutions DCM 37100 F II is the largest machine in the DCM double-column lineup, delivering a staggering 10,250 mm (404 in) of X-axis travel, 4,400 mm (173 in) on Y, and 1,000 mm (39 in) on Z. That's nearly 34 feet of longitudinal travel with over 14 feet of cross-travel — territory where very few machine builders compete.
At 120,000 kg (264,555 lb), the DCM 37100 F II has the mass to back up its size. The double-column gantry architecture distributes cutting forces symmetrically, and the W-axis crossrail lets operators position the spindle at the optimal working height for each setup. Table capacity matches the rest of the DCM line at 45,000 kg (99,208 lb).
Rapids run 16 m/min on X, 18 m/min on Y, and 15 m/min on Z. The 1,000 mm Z-axis travel is a significant upgrade over the DCM 3280's 700 mm, giving you the depth to handle deeper profiles and thicker structural sections. The F II designation marks the second generation, which brought better thermal management and tighter geometric tolerances over extended machining cycles.
This machine targets shops working on the largest components in aerospace, energy, shipbuilding, and heavy industry. If you're machining turbine casings, large press dies, or structural members that span 10 meters, the DCM 37100 F II was purpose-built for that work.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 10,250 mm (404 in) |
| Y Axis Travel | 4,400 mm (173 in) |
| Z Axis Travel | 1,000 mm (39 in) |
| Rapid Traverse X | 16 m/min (630 in/min) |
| Rapid Traverse Y | 18 m/min (709 in/min) |
| Rapid Traverse Z | 15 m/min (591 in/min) |
| Max Workpiece Weight | 45,000 kg (99,208 lb) |
| Machine Weight | 120,000 kg (264,555 lb) |
| Construction | Double-column with W-axis crossrail |
| X Axis Travel Distance | 10250 mm |
| Y Axis Travel Distance | 4400 mm |
| Z Axis Travel Distance | 1000 mm |
| Metric | IMPERIAL |
| Capacity | Table to spindle nose |
| Travels | X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance |
| Feed Rates | X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse |
| Table | Table LengthTable WidthMaximum Workpiece weight |
| Dimensions | LengthHeightWidthWeight |
| Favorites | DCM 4280F |
Specifications sourced from dn-solutions.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 10,250 mm X-axis travel is among the longest available — handles workpieces exceeding 33 feet
- 4,400 mm Y-axis travel with 1,000 mm Z-depth covers the widest and deepest workpiece profiles in the DCM family
- 120,000 kg machine weight provides exceptional vibration damping for finish-quality cuts on massive parts
- W-axis crossrail optimizes spindle positioning without sacrificing Z-axis stroke
- 45,000 kg table capacity accommodates the heaviest weldments and castings in heavy industry
- F II generation thermal compensation maintains accuracy through multi-hour machining cycles
Limitations
- 120-ton machine weight requires engineered foundations and heavy rigging — installation is a major project
- Footprint demands a large, dedicated bay in any facility
- Lead times for custom configurations can exceed 18 months
- Operating costs including power, coolant volume, and tooling are proportionally large
Best For
Frequently Asked Questions
01
Budget $1,200,000 to $2,000,000 depending on spindle options, tooling, and automation. These machines are quoted per project and often include custom fixturing and installation engineering. Foundation and rigging typically add $150,000-$300,000.
02
The DCM 37100 has more X-travel (10,250 vs 8,250 mm) and slightly less Y-travel (4,400 vs 5,000 mm). The 4280 is wider but shorter longitudinally. Choose the 37100 for the longest parts; choose the 4280 when Y-axis coverage is the priority.
03
DN Solutions typically equips the DCM series with Fanuc or Siemens controls depending on market and customer preference. The Fanuc 31i or Siemens 840D sl are the most common options for machines in this class.
04
The base machine is a 3-axis configuration. However, DN Solutions offers optional universal milling heads that add A/C-axis rotation at the spindle, enabling 5-axis capability for complex contoured surfaces on large parts.
