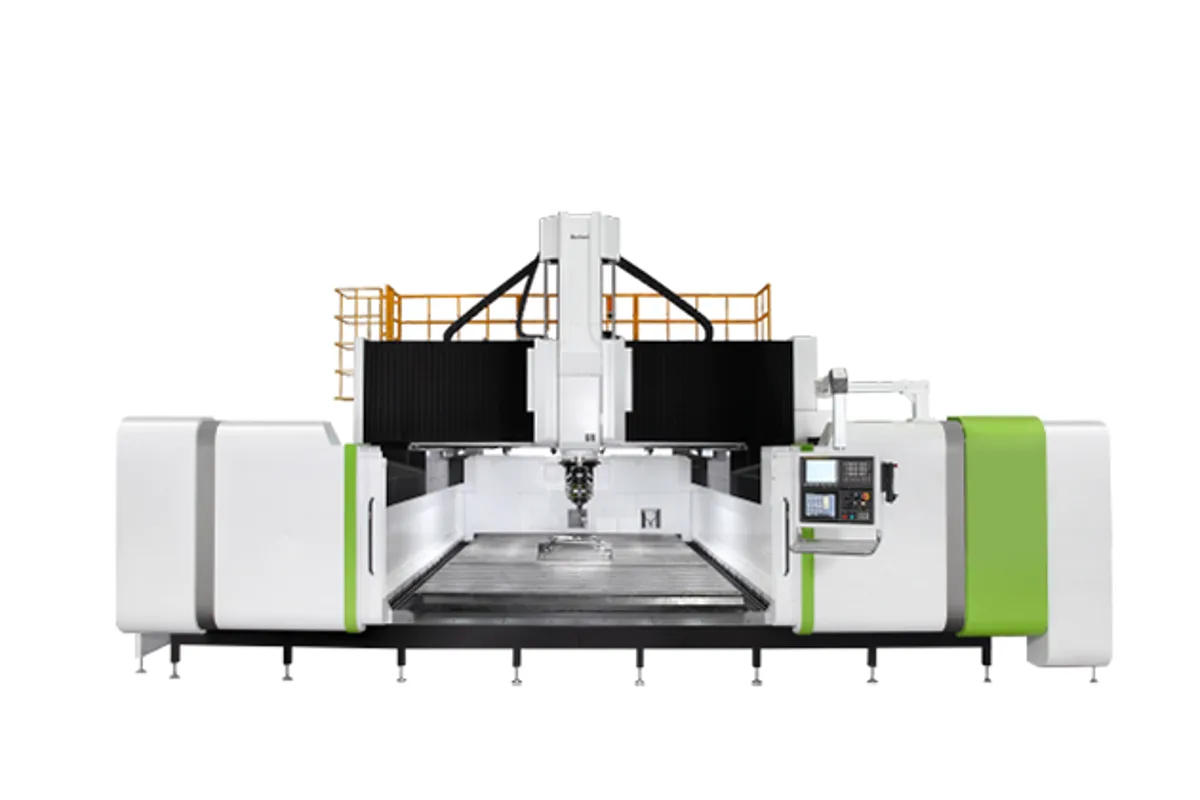

Hartford Aero-632BL-5X
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-632BL-5X cost?
Price estimate
We do not have a price for the Hartford Aero-632BL-5X that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Six metres of X travel over a table 2,700 mm wide: the Hartford Aero-632BL-5X is the slim six-metre gantry type 5-axis machining center of the Aero series. X travel is 6,000 mm (236.2 in), Y travel 3,200 mm (126.0 in), and the table 6,000 x 2,700 mm (236.2 x 106.3 in).
The shape is that of the parts it is aimed at. Wing spars, stringers, floor beams and long extrusions are many metres long and well under a metre wide, and they are cut from aluminium at high spindle speed. The built-in spindle is listed at 24,000 rpm in HSK-A63 and 12,000 rpm in HSK-A100, and Hartford describes it as oil-air lubricated.
Six metres is as long as an Aero 5X gets with a linear motor. Hartford limits that drive to X axes of up to 6 meters and switches to rack and pinion at 8 meters and above. The Y axis is described with three linear guideways and a linear motor design.
The operator works at a Hartford display designed for the Heidenhain TNC 640. Z travel is 1,100 mm, or 1,300 mm; the Z axis has twin ballscrews and a cooled drive train, and the 5 axis head comes from Cytec. The table is rated at 5,000 kg/m².
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 6,000 x 2,700 mm (236.2 x 106.3 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 3,200 mm (126.0 in) |
| Z Axis Travel | 1,100 (1,300 opt) mm |
| Spindle Taper | HSK-A63 / HSK-A100 |
| Spindle Speed Built in | 24,000 (HSK-A63); 12,000 (HSK - A100) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 6,000 mm (236.2 in) of X travel, the longest with a linear motor
- Built-in spindle at 24,000 rpm (HSK-A63) or 12,000 rpm (HSK-A100)
- Slim 6,000 x 2,700 mm table matched to long narrow parts
- Hartford display designed for the Heidenhain TNC 640
Limitations
- Y travel of 3,200 mm (126.0 in) is the smallest among the six-metre 5X models
- No power row for the spindle in this model's table
- Swivel ranges of the head are not listed
Best For
Frequently Asked Questions
01
X travel 6,000 mm (236.2 in), Y travel 3,200 mm (126.0 in), Z travel 1,100 mm or 1,300 mm, table 6,000 x 2,700 mm (236.2 x 106.3 in) at 5,000 kg/m², built-in spindle 24,000 rpm in HSK-A63 or 12,000 rpm in HSK-A100.
02
Hartford's page names a Hartford-base self-display designed for the Heidenhain TNC 640 and credits it with faster operational efficiency.
03
Hartford states that the linear motor is limited to X axes of up to 6 meters and that rack and pinion drive on X is limited to axes of 8 meters and more, where it allows a feed rate up to 50 m/min. The Aero-632BL-5X is at the top of the linear motor range.
04
The Aero-636BL-5X with a 6,000 x 3,100 mm (236.2 x 122.0 in) table, the Aero-641BL-5X with 6,000 x 3,600 mm (236.2 x 141.7 in) and the Aero-646BL-5X with 6,000 x 4,100 mm (236.2 x 161.4 in).
