Heller HF 5500
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Heller HF 5500 cost?
Estimated price range
Our best estimate for a 5-axis machining center in this class — not a quote from Heller. Configuration moves it a long way.
Overview

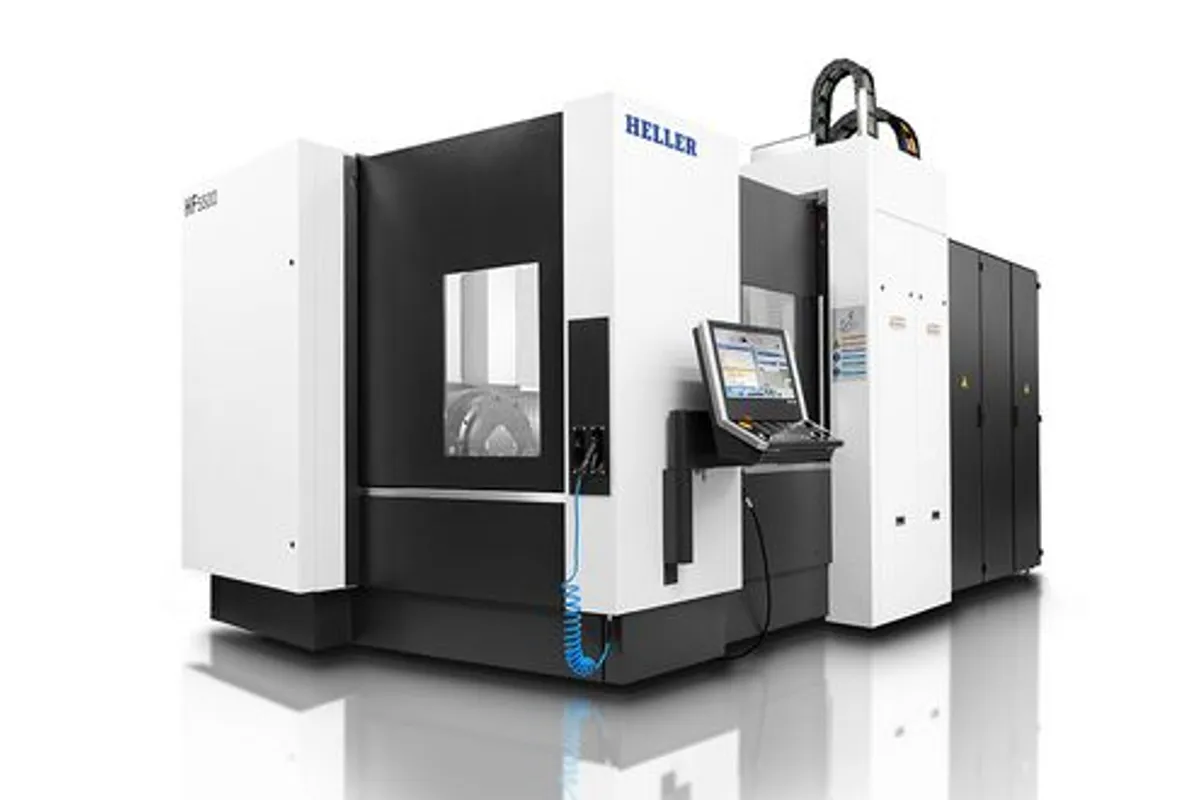

The Heller HF 5500 is the larger of the two HF 5-axis machining centers, with 900 mm of X travel, 950 mm of Y and 930 mm of Z. Against the HF 3500 and its 710 mm, 750 mm and 710 mm, every axis is longer, and the pallet grows from 500 x 500 mm to 630 x 630 mm.
How the machine is loaded changes what fits. The pallet changer version takes a workpiece of Ø 720 x 800 mm, diameter by height. The table loading version, with a Ø 810 mm table and a Ø 880 mm clamping plate, takes Ø 900 x 870 mm. A shop that needs the full diameter gives up the pallet changer, and one that wants the changer for unattended shifts has to accept the smaller part.
Table load is 750 kg. A figure of 850 kg is listed in conjunction with second Z-KGT as an optional / PRO value, so it applies to that configuration only. The part is tilted and rotated under the spindle: A is a continuous swivel table (225,000 x 0.001°) and B a continuous NC rotary indexing table (360,000 x 0.001°).
The spindle interface is HSK-A 63 with HSK-A 100 as an option, and the listed speed is 20,000 min⁻¹ for the DC 63 M spindle. Magazine capacity depends on the interface: up to 240 positions (4 chain-type magazines) or up to 489 positions (2 rack-type magazines) for HSK-A 63, and up to 150 positions (3 chain-type magazines) or up to 340 positions (3 rack-type magazines) for HSK-A 100. Coolant through the spindle is 50 bar, with 70 bar optional. The control is Siemens SINUMERIK ONE.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 900 mm |
| Y-Axis Travel | 950 mm |
| Z-Axis Travel | 930 mm |
| Spindle Taper | HSK-A 63 (HSK-A 100 optional) |
| Pallet Size | 630 x 630 mm (pallet changer version) |
| Table Size | Ø 810 mm (Ø 880 mm clamping plate) (table loading version) |
| Max Workpiece Dimension | Ø 720 x 800 mm (pallet changer) / Ø 900 x 870 mm (table loading), diameter x height |
| Max Table Load | 750 kg (850 kg in conjunction with second Z-KGT); value in brackets optional / PRO |
| A Axis | swivel table, continuous (225,000 x 0.001°) |
| B Axis | NC rotary indexing table, continuous (360,000 x 0.001°) |
| Max Spindle Speed | 20,000 min⁻¹ (DC 63 M spindle) |
| Tool Capacity | up to 240 positions (4 chain-type magazines, HSK-A 63); up to 150 positions (3 chain-type magazines, HSK-A 100); up to 489 positions (2 rack-type magazines, HSK-A 63); up to 340 positions (3 rack-type magazines, HSK-A 100) |
| Coolant Through Spindle | 50 bar (optional: 70 bar) |
| CNC Control | Siemens SINUMERIK ONE |
Specifications sourced from heller.biz — verified 2026-10-03
Strengths & Limitations
Strengths
- Travels of 900 mm (X), 950 mm (Y) and 930 mm (Z), with a 630 x 630 mm pallet on the pallet changer version
- Table loading version accepts workpieces of Ø 900 x 870 mm on a Ø 810 mm table (Ø 880 mm clamping plate)
- HSK-A 100 is available as an option alongside the HSK-A 63 interface
- Rack-type magazines hold up to 489 positions with HSK-A 63 and up to 340 positions with HSK-A 100
- Coolant through the spindle at 50 bar, with 70 bar optional
Limitations
- The pallet changer version is limited to Ø 720 x 800 mm workpieces, against Ø 900 x 870 mm with table loading
- The 850 kg table load is listed only in conjunction with second Z-KGT, as an optional / PRO value; otherwise the limit is 750 kg
- Choosing HSK-A 100 cuts chain-type storage from up to 240 positions to up to 150 positions
- No spindle power or torque appears in the published table
Best For
Frequently Asked Questions
01
It depends on the version. Heller lists Ø 720 x 800 mm (diameter x height) for the pallet changer version and Ø 900 x 870 mm for the table loading version. The table load is 750 kg in both cases unless the 850 kg option applies.
02
Yes, HSK-A 100 is listed as optional; HSK-A 63 is the base interface. With HSK-A 100 the magazines hold up to 150 positions (3 chain-type magazines) or up to 340 positions (3 rack-type magazines). The 20,000 min⁻¹ speed in the table belongs to the DC 63 M spindle.
03
750 kg. Heller also lists 850 kg in conjunction with second Z-KGT and marks that bracketed value as optional / PRO, so the higher load is not part of the base machine.
04
Two, both in the table. The A axis is a swivel table listed as continuous with 225,000 x 0.001°. The B axis is an NC rotary indexing table listed as continuous with 360,000 x 0.001°.
