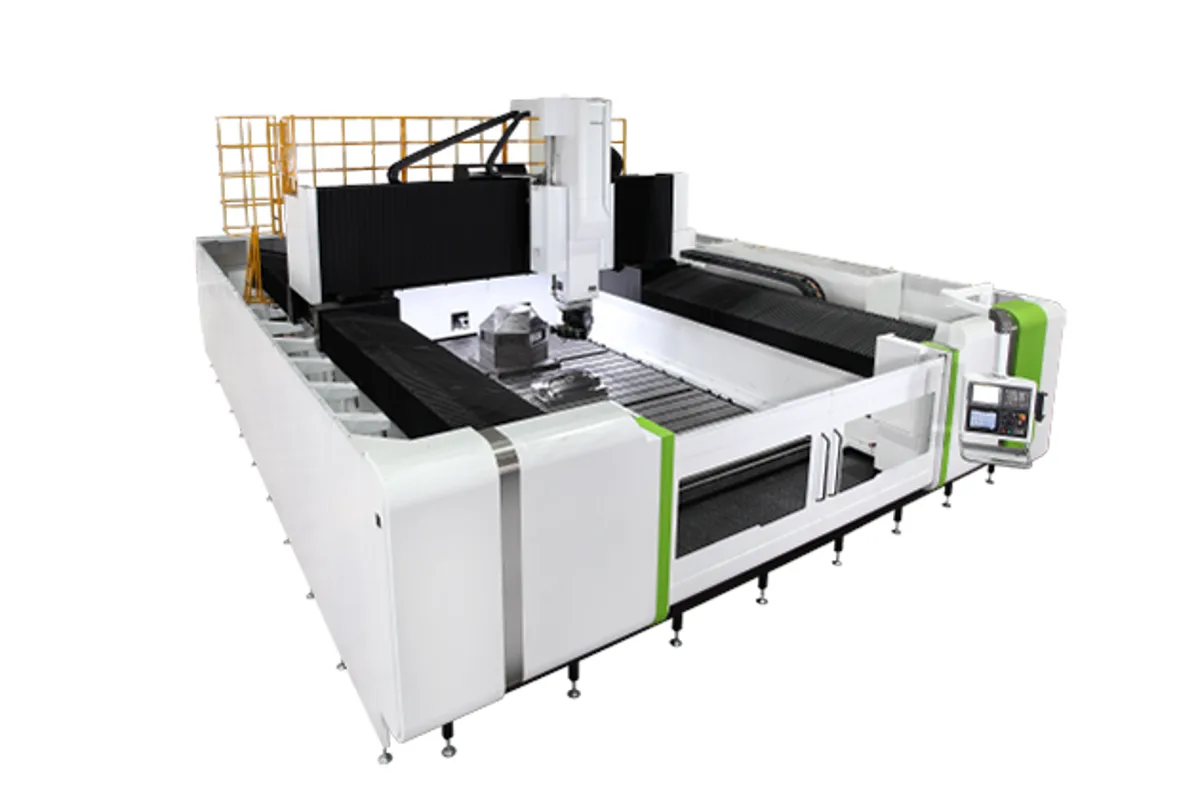

Hartford Aero-1036G
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-1036G cost?
Price estimate
We do not have a price for the Hartford Aero-1036G that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Ten metres of X travel on a table 3,100 mm wide: the Hartford Aero-1036G is the longest and slimmest format in the Aero series. In full, X travel is 10,000 mm (393.7 in), Y travel 3,600 mm (141.7 in) and the table 10,000 x 3,100 mm (393.7 x 122.0 in). Hartford classes it as a gantry type 5-faced machining center.
Work for a machine of these proportions is long and heavy. Think of beds for large lathes and grinders, girders, rolling mill components, long forging dies. The table rating of 5,000 kg/m² allows a solid steel section to lie directly on it.
The benefit of five faces grows with length. Turning a ten-metre part to reach its sides or ends is a crane job that costs hours and alignment; with a 90 degree head from the automatic changer, the sides are cut where the part lies. The angular head's C axis indexes in 1 degree steps, so both long sides and both ends are covered by turning the head.
Z travel is 1,000 mm, or 1,200 mm. The #50 gear head runs 6,000 rpm, with 8,000 rpm as an option, and magazines are an S type for 30 tools or an A type for 40, each with a larger option. The eight-metre equivalent is the Aero-836G, with an 8,000 x 3,100 mm (315.0 x 122.0 in) table.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 10,000 x 3,100 mm (393.7 x 122.0 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 10,000 mm (393.7 in) |
| Y Axis Travel | 3,600 mm (141.7 in) |
| Z Axis Travel | 1,000 (1,200 opt) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000 opt) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 10,000 mm (393.7 in) of X travel
- Sides and ends machined in place with an indexing angular head
- 10,000 x 3,100 mm (393.7 x 122.0 in) table rated at 5,000 kg/m²
- Automatic head changer with an independent head magazine
Limitations
- Table width of 3,100 mm with 3,600 mm (141.7 in) of Y travel is the narrowest ten-metre option
- Z travel of 1,000 mm as standard
- Standard gear-head speed is 6,000 rpm
Best For
Frequently Asked Questions
01
10,000 mm (393.7 in), the longest in the Aero series. Y travel is 3,600 mm (141.7 in) and Z travel 1,000 mm, with 1,200 mm as an option.
02
A table of 10,000 x 3,100 mm (393.7 x 122.0 in), rated at 5,000 kg/m². Hartford states the rating per square metre and gives no total load.
03
Yes, with an angular head. Hartford offers universal, 90 degree and extension heads on an automatic changer, and the C axis indexes in 1 degree steps, so the head can be turned to face either end or either side.
04
The Aero-1041G with a 10,000 x 3,600 mm (393.7 x 141.7 in) table and 4,100 mm (161.4 in) of Y, and the Aero-1046G with 10,000 x 4,100 mm (393.7 x 161.4 in) and 4,600 mm (181.1 in) of Y.
