Hartford 5A-350XL

Q: How much does the Hartford 5A-350XL cost?

The price estimate for the Hartford 5A-350XL is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/hartford-5a-350xl#price; the request is passed to Hartford or an authorised dealer.

Specs verified 2026-10-04 · hartfordcnc.com Updated 2026-10-04

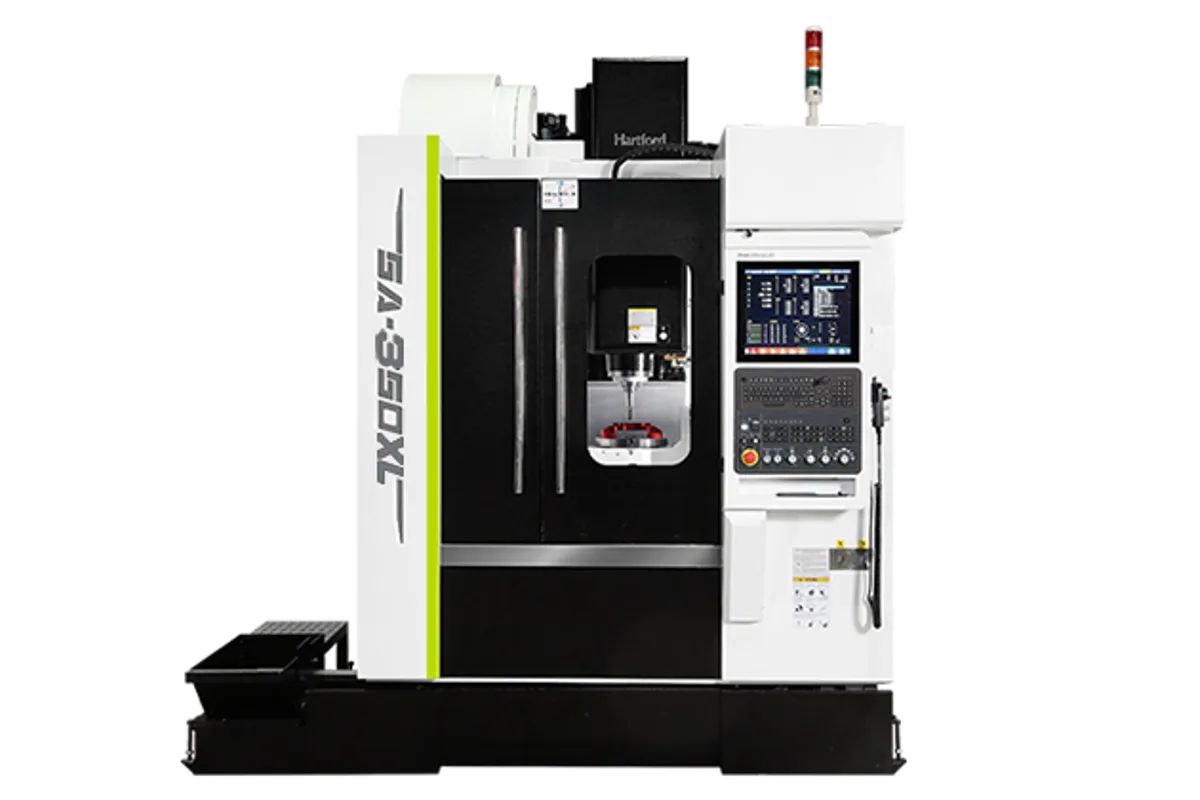

Image: hartfordcnc.com, Hartford

Key Specifications

Spindle Taper

#40

Tool Capacity

40/60 pcs

Table Size

Ø 350 mm (13.8 in)

Spindle Power

7.5 / 11 opt. 15 / 18.5 kW (Cont. / 30 min)

max table load

200 kg (441 lb)

t slots

12 x 90° (4) mm

How much does the Hartford 5A-350XL cost?

Price estimate

Uncertain

We do not have a price for the Hartford 5A-350XL that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Hartford 5A-350XL combines the travels of a normal 3-axis vertical machining center with a small tilting rotary table. X travel is 650 mm (25.6 in), Y is 610 mm (24.0 in) and Z is 510 mm (20.1 in), while the table is only Ø 350 mm (13.8 in). Hartford lists it as a 4+1 axis machine.

The axis naming differs from the other small 5A models. Here the tilt is an A axis with a range of +30° ~ -120°, and the C axis is given as ±360°. A tilt that swings 120° to one side lets the spindle work well past the horizontal on that side, which helps with undercut features on a part that can be turned by C to present them.

Generous linear travel around a small table has a practical use: long tools, angle heads and probes have room to clear the part and the trunnion, and tall workpieces on a Ø 350 mm platter can still be reached from above and from the side. The table carries 200 kg (441 lb).

The spindle is #40, DDS at 10,000 / 12,000 / 15,000 / 20,000 rpm or built-in at 15,000 / 20,000 rpm. The motor is 7.5 / 11 kW with 15 / 18.5 kW as the option (Cont. / 30 min), the strongest listed among the small 5A machines. Tools are BT40, BBT, CAT or DIN in a 40 or 60 tool magazine. The bed is a one-piece casting that keeps way oil and coolant apart.

Full Specifications

Parameter	Value
Table Size	Ø 350 mm (13.8 in)
Max Table Load	200 kg (441 lb)
T-Slots	12 x 90° (4) mm
X Axis Travel	650 mm (25.6 in)
Y Axis Travel	610 mm (24.0 in)
Z Axis Travel	510 mm (20.1 in)
A Axis Range	+30° ~ -120°
C Axis Range	±360°
Spindle Taper	#40
Spindle Speed Dds	10,000 / 12,000 / 15,000 / 20,000 rpm
Spindle Speed Built in	15,000 / 20,000 rpm
Tool Capacity	40/60 pcs
Tool Shank	BT40 (BBT / CAT / DIN)
Spindle Motor Power	7.5 / 11 opt. 15 / 18.5 kW (Cont. / 30 min)

Specifications sourced from hartfordcnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

650 x 610 x 510 mm linear travels around a Ø 350 mm (13.8 in) rotary table
A axis range of +30° ~ -120° with ±360° on C
Optional 15 / 18.5 kW spindle motor (Cont. / 30 min)
One-piece bed that separates oil and coolant
DDS spindle up to 20,000 rpm

Limitations

Listed as a 4+1 axis machine, not full simultaneous 5-axis
Table load of 200 kg (441 lb)
No HSK A63 shank in the list, unlike the 5A-32E
The built-in spindle stops at 20,000 rpm; the 5A-32E lists 24,000 rpm
Magazine of 40 or 60 tools, smaller than the 60 / 120 of the 5A-32E

Best For

Five-sided machining of tall, small-footprint parts Mould inserts and cores that need long tools Parts with undercuts on one side, using the 120° tilt Heavier cuts than other small 5-axis machines allow, with the 15 / 18.5 kW option

Frequently Asked Questions

01 What are the rotary axis ranges of the Hartford 5A-350XL?

The A axis travels +30° ~ -120° and the C axis ±360°. The table is Ø 350 mm (13.8 in) with T-slots listed as 12 x 90° (4) mm, and it carries 200 kg (441 lb).

02 How do the 5A-350XL travels compare with the 5A-32E?

The 5A-32E has 450 mm (17.7 in), 400 mm (15.7 in) and 360 mm (14.2 in) of X, Y and Z around a Ø 320 mm (12.6 in) table. The 5A-350XL has 650 mm (25.6 in), 610 mm (24.0 in) and 510 mm (20.1 in), so far more room around a table of nearly the same size.

03 What spindle power is available on the 5A-350XL?

7.5 / 11 kW as listed, with 15 / 18.5 kW optional, both continuous / 30 min. Speeds are 10,000 / 12,000 / 15,000 / 20,000 rpm for the DDS spindle and 15,000 / 20,000 rpm for the built-in spindle.

04 Is the 5A-350XL a full 5-axis machine?

Hartford's heading for it reads 5 Axis Vertical Machining Center (4+1 axis). Buyers who need simultaneous 5-axis interpolation should ask Hartford which control options apply, or look at the models listed without the 4+1 note, such as the 5A-65E.
