Hartford Aero-436B

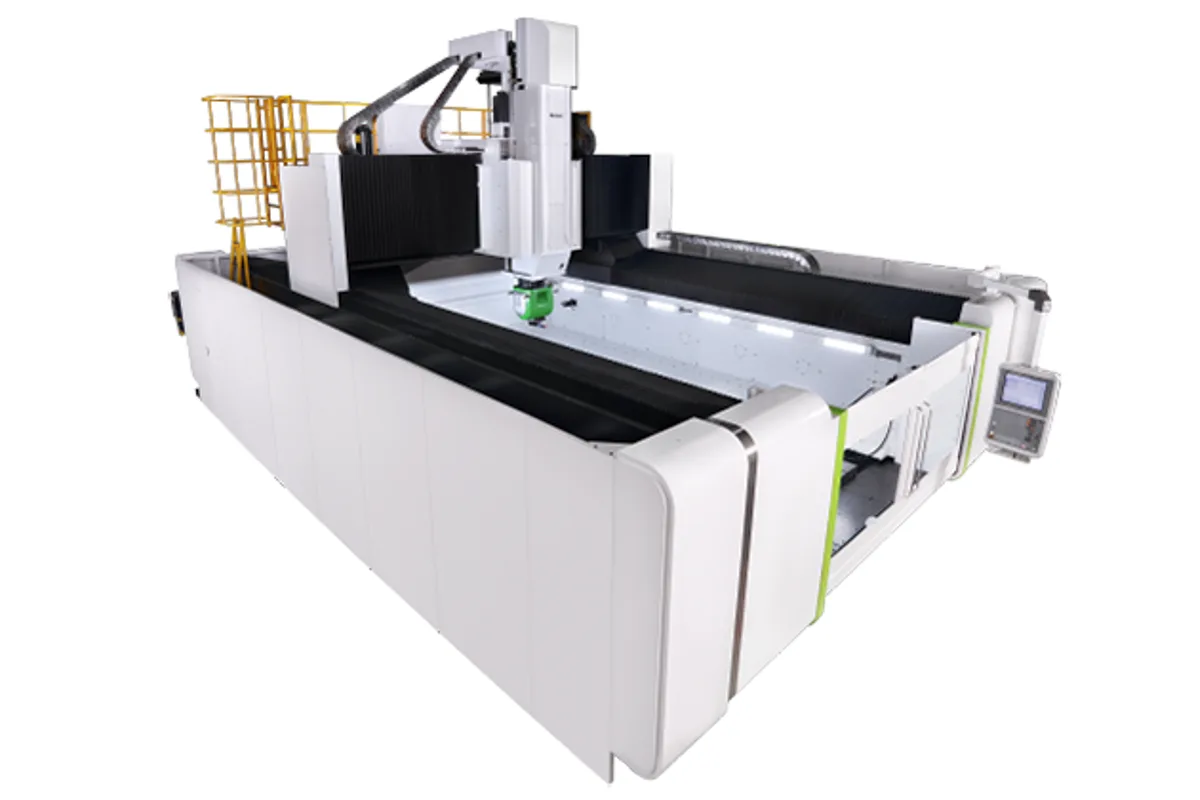

Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
x axis travel
y axis travel
How much does the Hartford Aero-436B cost?
Price estimate
We do not have a price for the Hartford Aero-436B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
With a 4,000 x 3,100 mm (157.5 x 122.0 in) table and 3,600 mm (141.7 in) of Y travel, the Hartford Aero-436B is the wider of the two four-metre gantry type 5-faced machining centers in the Aero series. X travel is 4,000 mm (157.5 in).
One line of its spec table differs from the rest of the family. Z travel is printed as 1,100 mm with 1,200 mm optional, where the other five-faced Aero models, the Aero-432B among them, show 1,000 mm. Whether that is a real difference or a slip in the table is worth a question to Hartford if Z height is critical.
Width is the practical gain over the Aero-432B, whose table is 4,000 x 2,700 mm (157.5 x 106.3 in). Parts over three metres across are possible here: large stamping dies, mould frames for bumpers and panels, wide machine bases. The table rating is 5,000 kg/m² on both.
For side faces the machine takes a universal head, a 90 degree head or an extension head from an automatic changer. The spindle is #50, a gear head at 6,000 rpm with 8,000 rpm optional, and Hartford offers its i-Tech hybrid 10,000 rpm spindle, which has a double cooling cycle for motor and spindle.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 4,000 x 3,100 mm (157.5 x 122.0 in) |
| Max Table Load | 5,000 kg/m² |
| X Axis Travel | 4,000 mm (157.5 in) |
| Y Axis Travel | 3,600 mm (141.7 in) |
| Z Axis Travel | 1,100 (1,200 opt) mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 6,000 (8,000 opt) rpm |
| Tool Capacity | S type 30 (opt 40), A type 40 (opt 60) pcs |
| Tool Shank | BT-50 (CAT50 / DIN69871A / BBT50) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,000 x 3,100 mm (157.5 x 122.0 in) table
- 3,600 mm (141.7 in) of Y travel
- Z travel listed at 1,100 mm, with 1,200 mm optional
- Optional hybrid spindle with double cooling for motor and spindle
Limitations
- The Z figure differs from the sister models and should be confirmed
- Gear head is 6,000 rpm as standard
- Only two widths exist at four metres: this one and the narrower Aero-432B
Best For
Frequently Asked Questions
01
Hartford's table for this model reads 1,100 mm with 1,200 mm as the option. The Aero-432B and the other five-faced Aero tables read 1,000 mm with 1,200 mm optional, so confirm the figure for the Aero-436B when ordering.
02
The table is 3,100 mm (122.0 in) wide and 4,000 mm (157.5 in) long, and Y travel is 3,600 mm (141.7 in). The rating is 5,000 kg/m².
03
Hartford's self-made i-Tech hybrid spindle, optional, at 10,000 rpm. The maker describes a double cooling cycle design for motor and spindle and a built-in motor with a maximum of 35 kW and 600 N-m.
04
The Aero-536B, with 5,000 mm (196.9 in) of X travel and a 5,000 x 3,100 mm (196.9 x 122.0 in) table. Y travel is 3,600 mm on both.
