Goodway GS-2800

Q: How much does the Goodway GS-2800 cost?

The price estimate for the Goodway GS-2800 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gs-2800#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

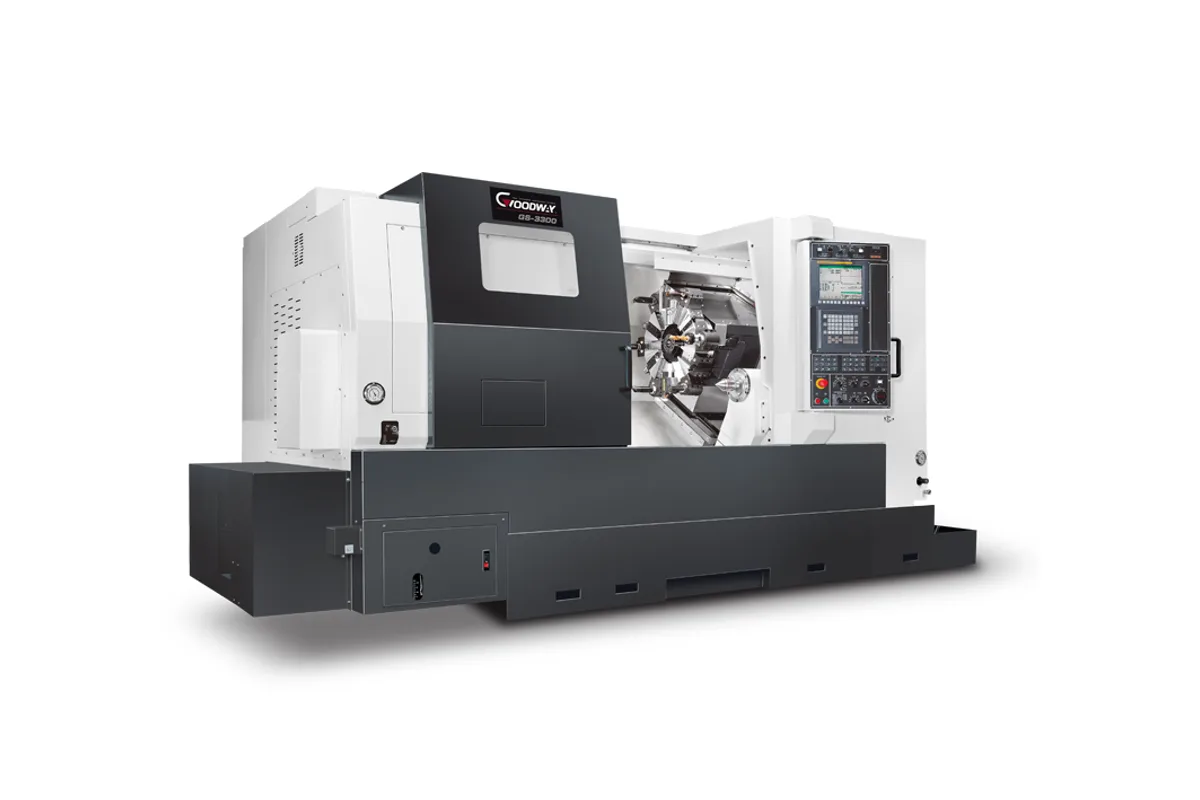

Goodway GS-2000 / GS-3000 series maximum performance turning centers (GS-2800)

Image: goodwaycnc.com, Goodway

Key Specifications

Max Spindle

3,500 rpm

Spindle Power

15 kW (20.1 hp) (cont.)

Max Turn Length

780 mm (30.7 in) / 1,530 mm (60.2 in)

max swing diameter

Ø700 mm (27.6 in)

max turning diameter

Ø570 mm (22.4 in)

chuck size

10"

How much does the Goodway GS-2800 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GS-2800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

A 10 in chuck, Ø75 mm (3.0 in) of bar capacity and 3,500 rpm place the Goodway GS-2800 second in the four-size GS-2000 / GS-3000 series. It uses the smaller of the series' two motors, 15 kW (20.1 hp) continuous and 18.5 kW (24.8 hp) for 30 min., on the common box-way bed.

That bed is the same for all four sizes, and it is large. Turning diameter is Ø570 mm (22.4 in), swing Ø700 mm (27.6 in) and X travel 300 mm (11.8 in). The buyer picks between 780 mm (30.7 in) and 1,530 mm (60.2 in) of Z travel, with turning length to match. The ways on X and Z are hardened box ways with a wide span, on a 30° slant.

So why choose the GS-2800 over its neighbours? Against the GS-2000 it passes larger bar at the cost of top speed. Against the GS-3300 it runs faster and is the last size that keeps the 6 in sub-spindle and the lighter tailstock, with 120 mm (4.7 in) of quill travel and an MT#4 live center. Step up to the GS-3300 and both of those grow with the motor.

Driven tooling is optional. Goodway rates the live tooling drive at 4.5 kW and lists 12 live stations with ER32 collets. The Y variation adds ±50 mm (±2.0 in) of Y travel, and the turret's opposing tool change takes 0.8 seconds according to the maker.

Full Specifications

Parameter	Value
Max Swing Diameter	Ø700 mm (27.6 in)
Max Turning Diameter	Ø570 mm (22.4 in)
Max Turning Length	780 mm (30.7 in) / 1,530 mm (60.2 in)
Chuck Size	10"
Bar Capacity	Ø75 mm (3.0 in)
Spindle Motor Power	15 kW (20.1 hp) (cont.)
Spindle Power 30 Min	18.5 kW (24.8 hp) (30 min.)
Max Spindle Speed	3,500 rpm
X Axis Travel	300 mm (11.8 in)
Z Axis Travel	780 mm (30.7 in) / 1,530 mm (60.2 in)
Turret Stations	12
Live Tooling Stations	12 (opt.)
Live Tooling Shank Size	ER32 (opt.)
Live Tooling Speed	5,000 rpm (opt.)
Max Turning Diameter with Y Axis	Ø400 mm (15.7 in) (opt.)
Y Axis Travel	±50 mm (±2.0 in) (opt.)
Quill Center Taper Programmable Tailstock	MT#3 (dead center), MT#4 (live center)
Quill Center Taper Servo Tailstock	MT#3 (dead center), MT#4 (live center) (opt.)
Quill Travel Programmable Tailstock	120 mm (4.7 in)
Sub Spindle Chuck Size	6" (opt.)
Sub Spindle Power	5.5 kW (7.4 hp) / 7.5 kW (10.1 hp) (cont. / 30 min.) (opt.)
Sub Spindle Speed Range	6,000 rpm (opt.)

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Ø75 mm (3.0 in) bar capacity with a 3,500 rpm spindle
Large common bed: Ø570 mm (22.4 in) turning diameter, 300 mm (11.8 in) X travel
Hardened wide-span box ways on a 30° slant bed
12-station servo turret with a 0.8 seconds opposing tool change, per Goodway

Limitations

Uses the smaller series motor: 15 kW (20.1 hp) continuous, where the GS-3300 has 18.5 kW (24.8 hp)
The optional sub-spindle has a 6 in chuck, against 8 in on the GS-3300
Live tooling drive is rated 4.5 kW, enough for drilling and light milling only
Y-axis travel is ±50 mm (±2.0 in) and cuts turning diameter to Ø400 mm (15.7 in)

Best For

Bar work up to Ø75 mm (3.0 in) 10 in chucking work that needs up to Ø570 mm (22.4 in) of turning diameter Shaft parts up to 1,530 mm (60.2 in) with the programmable tailstock

Frequently Asked Questions

01 What are the main specifications of the GS-2800?

A 10 in chuck, Ø75 mm (3.0 in) bar capacity, 3,500 rpm maximum spindle speed and a motor rated 15 kW (20.1 hp) continuous, 18.5 kW (24.8 hp) for 30 min. Turning diameter is Ø570 mm (22.4 in) and turning length 780 mm (30.7 in) or 1,530 mm (60.2 in).

02 Should I choose the GS-2800 or the GS-3300?

The GS-3300 has a 12 in chuck, Ø90 mm (3.5 in) bar capacity, 3,000 rpm and an 18.5 kW (24.8 hp) continuous motor. The GS-2800 passes Ø75 mm (3.0 in) and runs to 3,500 rpm. Bed, travels and turret are shared, so the decision rests on stock size and how hard the roughing is.

03 What tailstock comes with the GS-2800?

The table lists a programmable tailstock with an MT#3 dead center or MT#4 live center and 120 mm (4.7 in) of quill travel. A servo tailstock is optional. Goodway also lists manual and automatic self-centering steady rests for the series.

04 How fast is the live tooling on the GS-2800?

Goodway's main table lists 5,000 rpm for the optional 12-station live tooling turret, with ER32 collets and a 4.5 kW drive motor. Only the tool in the working position rotates, which the maker says reduces power loss and heat.
