Goodway GS-3300

Q: How much does the Goodway GS-3300 cost?

The price estimate for the Goodway GS-3300 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/goodway-gs-3300#price; the request is passed to Goodway or an authorised dealer.

Specs verified 2026-10-04 · goodwaycnc.com Updated 2026-10-04

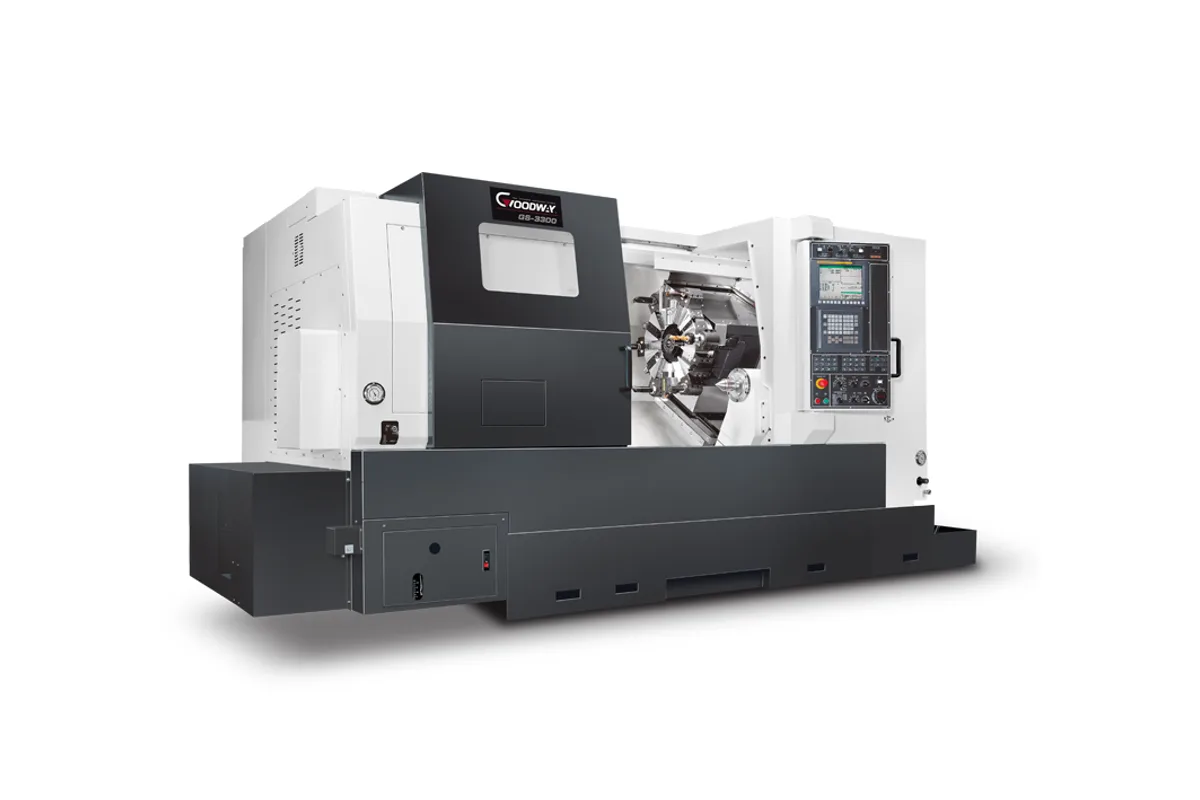

Goodway GS-2000 / GS-3000 series maximum performance turning centers (GS-3300)

Image: goodwaycnc.com, Goodway

Key Specifications

Max Spindle

3,000 rpm

Spindle Power

18.5 kW (24.8 hp) (cont.)

Max Turn Length

780 mm (30.7 in) / 1,530 mm (60.2 in)

max swing diameter

Ø700 mm (27.6 in)

max turning diameter

Ø570 mm (22.4 in)

chuck size

12"

How much does the Goodway GS-3300 cost?

Price estimate

Uncertain

We do not have a price for the Goodway GS-3300 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Goodway GS-3300 is the 12 in model of the GS-3000 half of the series, and the point where the bigger motor arrives: 18.5 kW (24.8 hp) continuous and 22 kW (29.5 hp) on the 30 min. rating. Goodway shows this 22 kW spindle on the series page as a feature of the GS-3300. Bar capacity is Ø90 mm (3.5 in) and top speed 3,000 rpm.

More than the main motor changes at this size. The optional sub-spindle moves from a 6 in to an 8 in hydraulic chuck and from a small pick-off motor to one rated 15 kW (20.1 hp) continuous and 18.5 kW (24.8 hp) for 15 min., at up to 5,000 rpm. That makes real second-operation cutting possible, not only finishing. The programmable tailstock grows as well, to 150 mm (5.9 in) of quill travel with an MT#5 live center or MT#4 dead center.

The working envelope is the series standard. Parts up to Ø570 mm (22.4 in) can be turned, X travel is 300 mm (11.8 in), and Z travel and turning length are 780 mm (30.7 in) or, on the L bed, 1,530 mm (60.2 in).

Twelve stations are provided on the servo turret. With the M variation they become 12 live stations with ER32 collets and a C-axis; Goodway describes that C-axis as a Cf type with a disk brake. The Y variation adds ±50 mm (±2.0 in) of Y travel, inside a Ø400 mm (15.7 in) turning diameter.

Full Specifications

Parameter	Value
Max Swing Diameter	Ø700 mm (27.6 in)
Max Turning Diameter	Ø570 mm (22.4 in)
Max Turning Length	780 mm (30.7 in) / 1,530 mm (60.2 in)
Chuck Size	12"
Bar Capacity	Ø90 mm (3.5 in)
Spindle Motor Power	18.5 kW (24.8 hp) (cont.)
Spindle Power 30 Min	22 kW (29.5 hp) (30 min.)
Max Spindle Speed	3,000 rpm
X Axis Travel	300 mm (11.8 in)
Z Axis Travel	780 mm (30.7 in) / 1,530 mm (60.2 in)
Turret Stations	12
Live Tooling Stations	12 (opt.)
Live Tooling Shank Size	ER32 (opt.)
Live Tooling Speed	5,000 rpm (opt.)
Max Turning Diameter with Y Axis	Ø400 mm (15.7 in) (opt.)
Y Axis Travel	±50 mm (±2.0 in) (opt.)
Quill Center Taper Programmable Tailstock	MT#4 (dead center), MT#5 (live center)
Quill Center Taper Servo Tailstock	MT#3 (dead center), MT#4 (live center) (opt.)
Quill Travel Programmable Tailstock	150 mm (5.9 in)
Sub Spindle Chuck Size	8" (opt.)
Sub Spindle Power	15 kW (20.1 hp) / 18.5 kW (24.8 hp) (cont. / 15 min.) (opt.)
Sub Spindle Speed Range	5,000 rpm (opt.)

Specifications sourced from goodwaycnc.com — verified 2026-10-04

Strengths & Limitations

Strengths

18.5 kW (24.8 hp) continuous and 22 kW (29.5 hp) 30 min. spindle motor
Optional 8 in sub-spindle rated 15 kW (20.1 hp) continuous, 18.5 kW (24.8 hp) for 15 min.
Ø90 mm (3.5 in) bar capacity with Ø570 mm (22.4 in) of turning diameter
Programmable tailstock with 150 mm (5.9 in) of quill travel and an MT#5 live center

Limitations

Top spindle speed is 3,000 rpm
Sub-spindle speed is 5,000 rpm, lower than the 6,000 rpm sub-spindle of the GS-2800
Y-axis work is limited to ±50 mm (±2.0 in) of travel
Live tooling, C-axis, Y-axis and sub-spindle are options

Best For

Heavy turning on 12 in chuck work Bar and tube up to Ø90 mm (3.5 in) Two-sided parts with real cutting on the 8 in sub-spindle Shafts up to 1,530 mm (60.2 in) long

Frequently Asked Questions

01 What motor does the GS-3300 spindle have?

Goodway lists 18.5 kW (24.8 hp) continuous and 22 kW (29.5 hp) on the 30 min. rating, with a maximum speed of 3,000 rpm. Gear-driven, built-in and belt-driven spindle versions are offered across the series.

02 How strong is the sub-spindle on the GS-3300?

The optional sub-spindle has an 8 in chuck and is rated 15 kW (20.1 hp) continuous and 18.5 kW (24.8 hp) for 15 min., with a top speed of 5,000 rpm. The GS-2000 and GS-2800 use a 6 in sub-spindle with a 5.5 kW (7.4 hp) continuous rating.

03 What size parts fit the GS-3300?

Maximum turning diameter is Ø570 mm (22.4 in) and swing Ø700 mm (27.6 in). Turning length is 780 mm (30.7 in), or 1,530 mm (60.2 in) on the L bed. The chuck is 12 in and bar capacity Ø90 mm (3.5 in).

04 Which multi-tasking variations exist for the GS-3300?

Five: M (live tooling turret and C-axis), Y (adds a Y-axis), S (sub-spindle), MS and YS. The specification table marks the live tooling turret, Y-axis and sub-spindle sections as optional.
