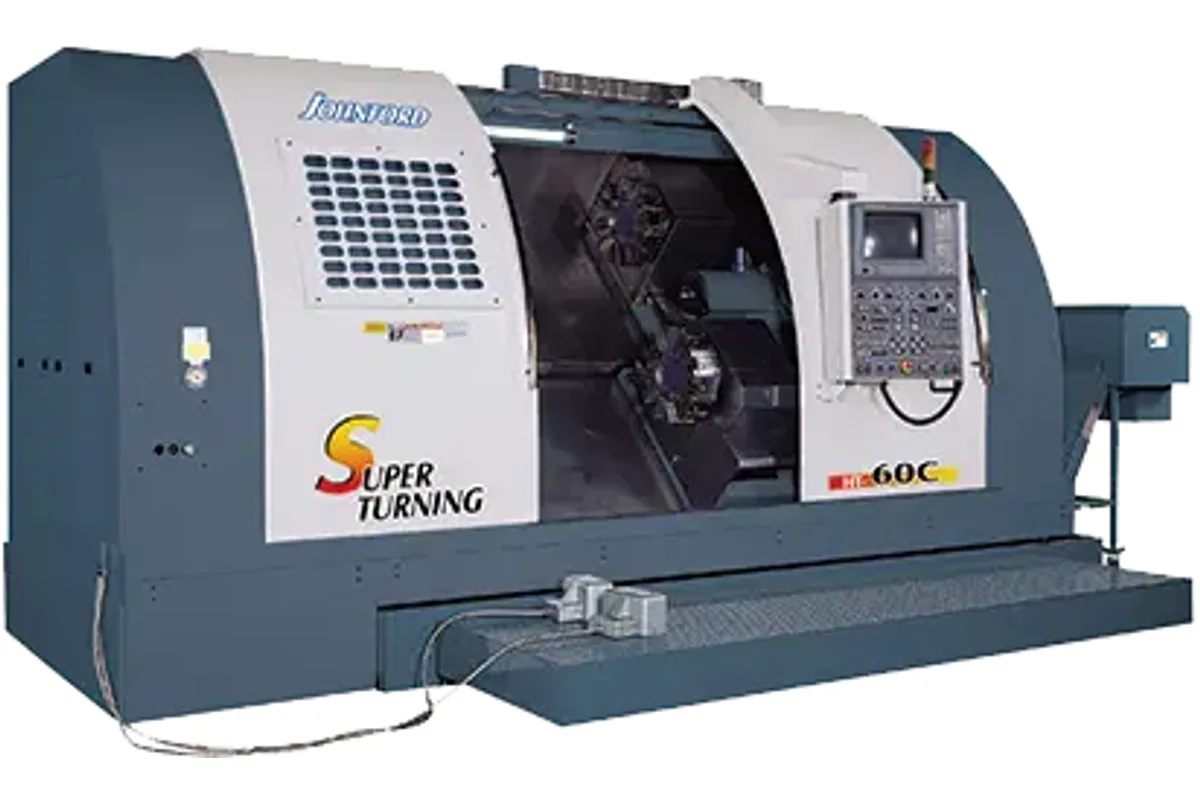

Johnford HT-60-2D
Image: johnford.com.tw, Johnford
Key Specifications
Max Spindle
Rapid Traverse
Spindle Power
swing over bed
swing over cross slide
distance between centers
How much does the Johnford HT-60-2D cost?
Price estimate
We do not have a price for the Johnford HT-60-2D that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A twin-turret shaft lathe with 1,500 mm (59 in) between centers, the Johnford HT-60-2D holds the work between a chuck of up to Ø610 mm (24 in) and a Ø200 mm (7.9 in) tailstock quill while two 12-station turrets cut.
The turrets' Z travels are 1,500 mm (59 in) and 1,260 mm (49.6 in). On a shaft that fills the machine, the long-travel carriage reaches every diameter and the other covers most of the length, which is enough for the usual use of a second turret on this kind of work: a roughing tool leading, a finishing or grooving tool following, or two roughing tools opposed on a slender section.
Tailstock travel is 1,200 mm (47.2 in), with a further 200 mm (7.9 in) in the MT#7 rotary quill. Swing over the bed is Ø730 mm (28.7 in) and over the cross slide Ø600 mm (23.6 in).
Spindle choice sets the character. Variant A, 3,000 rpm with the 12 in chuck, makes a fast machine for bar-sized shafts up to Ø91 mm (3.6 in). Variant E, at 750 rpm with a Ø236 mm (9.3 in) bore, makes a pipe and heavy-shaft machine. The weight moves only from 19,000 kg (41,800 lb) to 19,200 kg (42,240 lb) between those two, so the bed and carriages are the same whichever headstock is fitted.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø730 mm (Ø28.7 in) |
| Swing Over Cross Slide | Ø600 mm (Ø23.6 in) |
| Distance Between Centers | 1,500 mm (59 in) |
| Chuck Size | A: Ø315 mm (Ø12 in) / B: Ø381 mm (Ø15 in) / C, D: Ø510 mm (Ø20 in) / E: Ø610 mm (Ø24 in) |
| Chuck Size Optional | A: Ø381 mm (Ø15 in) / B: Ø450 mm (Ø18 in) / C, D: Ø610 mm (Ø24 in) |
| Bar Capacity | A: Ø91 mm (Ø3.6 in) / B: Ø116 mm (Ø4.6 in) / C: Ø139 mm (Ø5.5 in) / D: Ø165 mm (Ø6.5 in) / E: Ø204 mm (Ø8 in) |
| Bar Capacity Optional | A: Ø95 mm (Ø3.7 in) |
| Spindle Nose | A: A2-8 / B: A2-11 / C, D, E: A2-15 |
| Spindle Bore | A: Ø115 mm (Ø4.5 in) / B: Ø132.5 mm (Ø5.2 in) / C: Ø152 mm (Ø6 in) / D: Ø185 mm (Ø7.3 in), Geared head Ø176 mm (Ø6.9 in) / E: Ø236 mm (Ø9.3 in) |
| Spindle Transmission | A, B: Auto Hi-Lo / C, D, E: Auto 4-steps |
| Spindle Transmission Optional | B: Auto 4-steps |
| Max Spindle Speed | A: 3,000 rpm for 12 in chuck, 2,000 rpm for 15 in chuck / B: 2,000 rpm for Hi-Lo / C: 1,200 rpm / D: 1,000 rpm / E: 750 rpm |
| Spindle Speed Optional | B: 2,000 rpm for Auto 4-steps |
| Spindle Motor Power | A, B: 22 / 26 kW (29.5 / 34.9 hp); C, D, E: 30 / 37 kW (40.2 / 49.6 hp) |
| Spindle Power Optional | B: 30 / 37 kW (40.2 / 49.6 hp); C, D, E: 37 / 45 kW (49.6 / 60.3 hp) |
| Spindle Bearing Diameter | A: Ø160 mm (Ø6.3 in) / B: Ø180 mm (Ø7 in) / C: Ø200 mm (Ø7.9 in) / D: Ø240 mm (Ø9.4 in) / E: Ø280 mm (Ø11 in) |
| Turret Stations | 12 / 12 |
| X Axis Travel | 320 / 320 mm (12.6 / 12.6 in) |
| Z Axis Travel | 1,500 mm (59 in) / 1,260 mm (49.6 in) |
| Rapid Traverse Rate | X: 12 m/min (472 ipm); Z: 15 m/min (591 ipm) |
| Tailstock Travel | 1,200 mm (47.2 in) |
| Tailstock Quill Travel | 200 mm (7.9 in) |
| Tailstock Quill Diameter | Ø200 mm (Ø7.9 in) |
| Tailstock Taper Rotary | MT#7 |
| Servo Motor X1 X2 | 4 kW |
| Servo Motor Z1 Z2 | 4 kW |
| Bed Inclination | 45° |
| Machine Weight | A: 19,000 kg (41,800 lb) / B: 19,050 kg (41,910 lb) / C: 19,100 kg (42,020 lb) / D: 19,150 kg (42,130 lb) / E: 19,200 kg (42,240 lb) |
| Machine Dimensions | 5,600 x 3,470 x 2,840 mm (220.5 x 136.6 x 111.8 in) |
Specifications sourced from johnford.com.tw — verified 2026-10-04
Strengths & Limitations
Strengths
- Two turrets on 1,500 mm (59 in) between centers
- Tailstock travel of 1,200 mm (47.2 in) plus 200 mm (7.9 in) of quill travel
- Spindle variants from 3,000 rpm (A, 12 in chuck) to a Ø236 mm (9.3 in) bore (E)
- Dual-path control system as standard
- Hydraulic steady rests with manual travelling or CNC motor are available
Limitations
- Second turret travels 1,260 mm (49.6 in), not the full 1,500 mm (59 in)
- Both Z axes use 4 kW servo motors; the HT-80-2D has 7 kW
- Swing over the bed is Ø730 mm (28.7 in), less than on the HT-40-2D at Ø750 mm (29.5 in)
- Steady rests are not included
Best For
Frequently Asked Questions
01
Distance between centers is 1,500 mm (59 in). The Z1 axis travels the full 1,500 mm (59 in) and the Z2 axis 1,260 mm (49.6 in). The tailstock travels 1,200 mm (47.2 in).
02
No. The table lists 19,000 kg (41,800 lb) for A, 19,050 kg (41,910 lb) for B, 19,100 kg (42,020 lb) for C, 19,150 kg (42,130 lb) for D and 19,200 kg (42,240 lb) for E.
03
Only with options. The standard turrets are non-driven. Johnford lists a live tool 12-position turret in BMT or VDI, a C-axis with or without gearbox, and a Y axis on the upper turret as optional accessories.
04
12 m/min on X and 15 m/min on Z. The X1 and X2 axes have 4 kW servo motors and so do the Z1 and Z2 axes. All axes run on heavy box ways.
