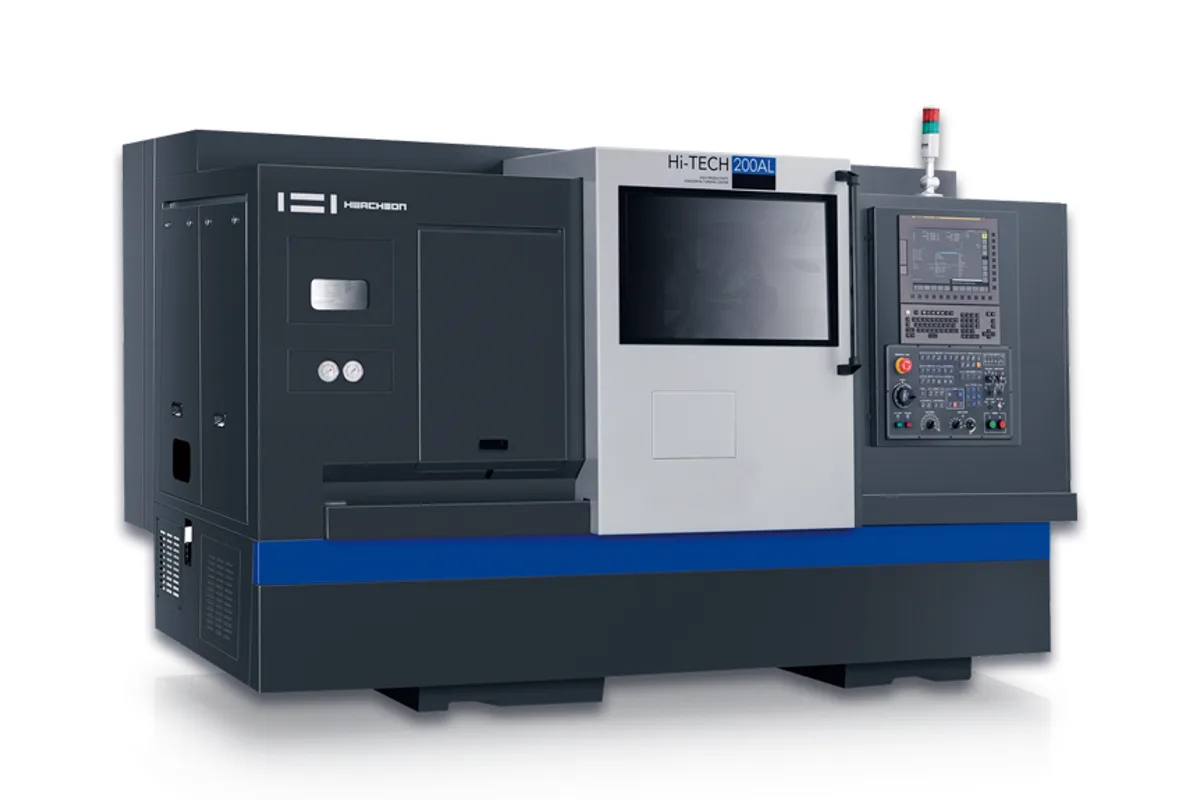

Hwacheon Hi-TECH 200
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
swing over bed
max turning diameter
standard turning diameter
How much does the Hwacheon Hi-TECH 200 cost?
Price estimate
We do not have a price for the Hwacheon Hi-TECH 200 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon Hi-TECH 200 is the entry size of the Hi-TECH turning centers: Ø350 mm (Ø13.8 in) maximum turning diameter over a Ø500 mm (Ø19.7 in) swing, with 381 to 401.5 mm (15.0 to 15.8 in) of turning length on the standard bed and 611 to 631.5 mm (24.1 to 24.9 in) on the L bed. Every version uses the same 18.5 / 15 kW (24.8 / 20.1 hp) spindle motor and a FANUC 0i-TF Plus control.
The letter after 200 decides chuck, speed and bar size. The 200A has an 8 in chuck on an A2-6 nose and is the fast one at 5,000 rpm, with Ø51 mm (Ø2.0 in) bar capacity. The 200B keeps the A2-6 nose and Ø75 mm (Ø3.0 in) bore but carries a 10 in chuck, takes Ø65 mm (Ø2.6 in) bar and runs to 3,500 rpm. The 200C moves to an A2-8 nose with a Ø90 mm (Ø3.5 in) bore and Ø130 mm (Ø5.1 in) front bearing, for Ø76 mm (Ø3.0 in) bar at 3,500 rpm. The turret has 12 stations on the A and B but 10 on the C, so the largest bar comes with the fewest tools.
The MC version adds a 3.7 / 2.2 kW (5.0 / 3.0 hp) live tool drive at up to 5,000 rpm, rated for Ø16 mm drills and M12 taps, and indexes C in 0.0001° steps. That is enough for cross holes, tapped holes and light flats, not for heavy milling. Turning diameter on the MC falls to Ø325 mm (Ø12.8 in) and turning length to 298 to 318.5 mm, or 528 to 548.5 mm on the L bed.
X travel is 195 mm (7.7 in) and Z travel 430 mm (16.9 in), or 660 mm (26.0 in) on the L bed, with 30 m/min (1,181 ipm) rapids on both axes. The turret indexes at 0.15 sec/step and takes □25 mm shanks and Ø40 mm boring bars. The tailstock quill is Ø80 mm (Ø3.1 in) with 100 mm (3.9 in) of travel and MT #4. The machine needs 30 kVA, weighs 4,450 to 4,800 kg (9,810 to 10,582 lb), or 5,050 to 5,400 kg (11,133 to 11,905 lb) for L versions, and occupies 2,645 x 1,675 mm (104.1 x 65.9 in), 2,875 mm (113.2 in) long on the L bed.
Full Specifications
| Parameter | Value |
|---|---|
| Swing Over Bed | Ø500 mm (Ø19.7 in) |
| Max Turning Diameter | Ø350 mm (Ø13.8 in); Ø325 mm (Ø12.8 in) on MC |
| Standard Turning Diameter | Ø210 mm (Ø8.3 in) (A / B) / Ø260 mm (Ø10.2 in) (C); MC: Ø220 / Ø270 mm |
| Max Turning Length | 381 to 401.5 mm (15.0 to 15.8 in); L: 611 to 631.5 mm (24.1 to 24.9 in); MC: 298 to 318.5 mm, L 528 to 548.5 mm |
| Chuck Size | 8 in (200A) / 10 in (200B / 200C) |
| Spindle Nose | A2-6 (A / B) / A2-8 (C) |
| Max Spindle Speed | 5,000 rpm (A) / 3,500 rpm (B / C) |
| Spindle Bore | Ø75 mm (Ø3.0 in) (A / B) / Ø90 mm (Ø3.5 in) (C) |
| Bar Capacity | Ø51 / Ø65 / Ø76 mm (Ø2.0 / Ø2.6 / Ø3.0 in) (A / B / C) |
| Spindle Bearing Front ID | Ø100 mm (Ø3.9 in) (A / B) / Ø130 mm (Ø5.1 in) (C) |
| Spindle Motor Power | 18.5 / 15 kW (24.8 / 20.1 hp) |
| Turret Stations | 12 (A / B) / 10 (C) |
| Tool Shank Size | □25 mm × Ø40 mm boring bar |
| Turret Index Time | 0.15 sec/step |
| Rapid Traverse Xz | 30 / 30 m/min (1,181 / 1,181 ipm) |
| X Axis Travel | 195 mm (7.7 in) |
| Z Axis Travel | 430 mm (16.9 in); L 660 mm (26.0 in) |
| Tailstock Quill Diameter | Ø80 mm (Ø3.1 in) |
| Tailstock Quill Travel | 100 mm (3.9 in) |
| Tailstock Quill Taper | MT #4 |
| Live Tool Motor | 3.7 / 2.2 kW (5.0 / 3.0 hp) (MC) |
| Live Tool Speed Max | 5,000 rpm (MC) |
| Live Tool Capacity | Drill Ø16 mm / tap M12 (MC) |
| C Axis Indexing | 0.0001° (MC) |
| Coolant Tank | 150 L (40 US gal); L 180 L (48 US gal) |
| Power Requirement | 30 kVA |
| Machine Dimensions | 2,645 x 1,675 x 1,720 mm (104.1 x 65.9 x 67.7 in); L 2,875 mm (113.2 in) long |
| Machine Weight | 4,450 to 4,800 kg (9,810 to 10,582 lb); L versions 5,050 to 5,400 kg (11,133 to 11,905 lb) |
| CNC Control | FANUC 0i-TF Plus |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Three chuck and bar options: 8 in with Ø51 mm bar, 10 in with Ø65 mm or 10 in with Ø76 mm (Ø3.0 in)
- 5,000 rpm on the 200A for small-diameter work
- L bed extends turning length to 611 to 631.5 mm (24.1 to 24.9 in)
- Turret index of 0.15 sec/step
- Ø80 mm (Ø3.1 in) tailstock quill with MT #4 for shaft work
Limitations
- The 200B and 200C are limited to 3,500 rpm
- The 200C turret has 10 stations, against 12 on the A and B
- Live tools on the MC are rated 3.7 / 2.2 kW (5.0 / 3.0 hp), for Ø16 mm drills and M12 taps
- No Y axis or sub-spindle is listed for this model
- X travel is 195 mm (7.7 in)
Best For
Frequently Asked Questions
01
The 200A has an 8 in chuck, A2-6 nose, 5,000 rpm and Ø51 mm (Ø2.0 in) bar. The 200B has a 10 in chuck, A2-6 nose, 3,500 rpm and Ø65 mm (Ø2.6 in) bar. The 200C has a 10 in chuck, A2-8 nose, 3,500 rpm, a Ø90 mm (Ø3.5 in) bore and Ø76 mm (Ø3.0 in) bar, with a 10-station turret instead of 12.
02
The drive is 3.7 / 2.2 kW (5.0 / 3.0 hp) at up to 5,000 rpm and is rated for drills up to Ø16 mm and taps up to M12, with C-axis indexing in 0.0001° steps. On the MC, maximum turning diameter is Ø325 mm (Ø12.8 in).
03
The Hi-TECH 230B turns up to Ø425 mm (Ø16.7 in), takes Ø81 mm (Ø3.2 in) bar and is offered with Y axis and sub-spindle versions. The Hi-TECH 200 turns up to Ø350 mm (Ø13.8 in), takes up to Ø76 mm (Ø3.0 in) bar on the 200C and is lighter at 4,450 to 4,800 kg (9,810 to 10,582 lb).
04
A 30 kVA supply and floor for 2,645 x 1,675 mm (104.1 x 65.9 in), or 2,875 mm (113.2 in) long with the L bed. Height is 1,720 mm (67.7 in). The coolant tank holds 150 L (40 US gal), or 180 L (48 US gal) on the L bed.
