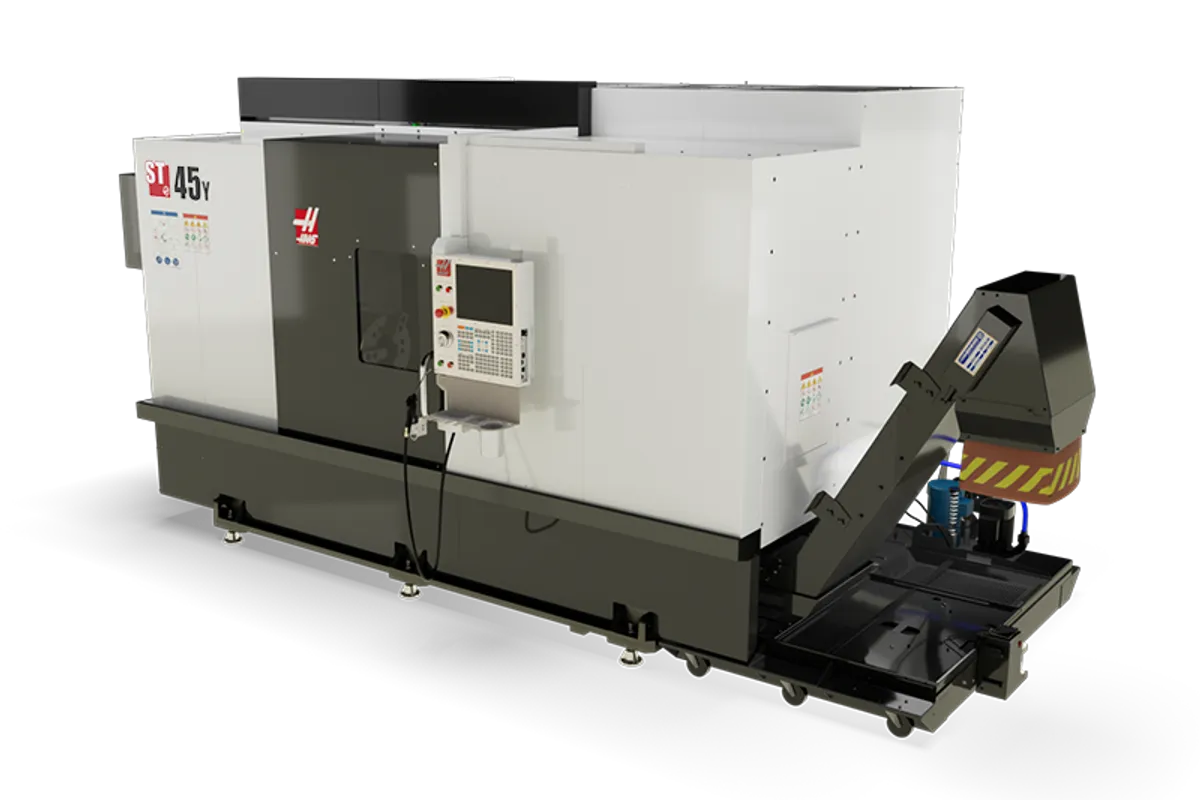

Haas ST-45Y
Image: haascnc.com, Haas Automation
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Power
Max Turn Length
How much does the Haas ST-45Y cost?
Manufacturer list price
As published by Haas Automation, verified 2026-10-02. Options, tooling, freight and installation are extra.
Overview
The Haas ST-45Y is a large-bore Y-axis lathe with 44 in (1,118 mm) of turning length, a 27.5 in (699 mm) maximum turning diameter and a 7 in (177.8 mm) spindle bore on an A2-11 nose. A 12-station BMT75 turret carries live tools that run to 4,000 rpm, and Y travel is ± 3 in (± 76 mm).
Set beside the ST-40, the trade is easy to see. The ST-40 has the same 44 in of Z, the same 20 in (508 mm) of X and the same 40 hp (29.8 kW), 1,400 ft-lbf (1,898 N·m) spindle rating, with an A2-8 nose, a 4.62 in (117.3 mm) bore, 2,400 rpm and a 30 in (762 mm) turning diameter. The ST-45Y passes larger stock through the spindle and can mill it, but its spindle stops at 1,400 rpm and its turning diameter is smaller.
The 44 in bed is what suits this machine to shafts and long tube. The MT5 tailstock travels 42 in (1,067 mm) with thrust from 200 lbf (890 N) to 3,000 lbf (13,345 N), so a long part can be held on a centre while it is turned, then milled or cross-drilled without a second setup. Z rapids are 710 ipm (18 m/min), X and Y move at 472 ipm (12 m/min), and the turret indexes in 2 s.
Haas's feature list for this model names full C-axis interpolation, new FEA-optimised castings, an increased wedge stance and improved chip evacuation. A 24-station half-index turret is optional, and so is the Auto Door. WiFi, HaasDrop wireless file transfer, Safe Run and HaasConnect remote monitoring are standard.
The chuck is a separate decision: the table lists an 18 in (457 mm) chuck as an option and a bar capacity of 6.5 in (165 mm) with optional workholding. An XP option takes the spindle to 55 hp (41 kW) and 2,100 ft-lbf (2,847 N·m) at 150 rpm. Haas's starting price is US$253,995.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Optional | 18 in (457 mm) |
| Max Swing | 35.5 in (902 mm) |
| Max Turning Diameter | 27.5 in (699 mm) |
| Max Turning Length | 44 in (1,118 mm) |
| Bar Capacity with Opt Workholding | 6.5 in (165 mm) |
| X-Axis Travel | 20 in (508 mm) |
| Y-Axis Travel | ± 3 in (± 76 mm) |
| Z-Axis Travel | 44 in (1,118 mm) |
| Rapid Traverse X | 472 ipm (12 m/min) |
| Rapid Traverse Y | 472 ipm (12 m/min) |
| Rapid Traverse Z | 710 ipm (18 m/min) |
| Max Thrust X | 5,500 lbf (24,465 N) |
| Max Thrust Y | 2,300 lbf (10,231 N) |
| Max Thrust Z | 9,000 lbf (40,034 N) |
| Spindle Nose | A2-11 |
| Spindle Drive | 2-Speed Gearbox |
| Spindle Motor Power | 40 hp (29.8 kW) |
| Max Spindle Speed | 1,400 rpm |
| Spindle Torque | 1,400 ft-lbf @ 150 rpm (1,898 N·m @ 150 rpm) |
| Spindle Bore | 7 in (177.8 mm) |
| Xp Option Drive System | 2-Speed Gearbox |
| Xp Option Max Rating | 55 hp (41 kW) |
| Xp Option Max Speed | 1,400 rpm |
| Xp Option Max Torque | 2,100 ft-lbf @ 150 rpm (2,847 N·m @ 150 rpm) |
| Xp Option Input AC Voltage Low | 220 VAC |
| Xp Option Full Load Amps Low | 105 A |
| Xp Option Input AC Voltage High | 440 VAC |
| Xp Option Full Load Amps High | 53 A |
| C Axis Max Rating | 5 hp (3.7 kW) |
| C Axis Speed | 49 rpm |
| C Axis Positioning | 0.01 ° |
| C Axis Brake Diameter | 21.5 in (546 mm) |
| C Axis Brake Holding Torque | 450 ft-lbf (610 N·m) |
| C Axis Control Type | Interpolated Motion and Positioning |
| Tailstock Taper | MT5 |
| Tailstock Travel | 42 in (1,067 mm) |
| Tailstock Max Thrust Acme | 3,000 lbf (13,345 N) |
| Tailstock Min Thrust Acme | 200 lbf (890 N) |
| Turret Stations | 12 |
| Turret OD Vs ID Tools | Any Combination (will vary with turret) |
| Turret Index Time | 2 s |
| Turret Boring Bar Rear Clearance From Turret Face | 4.5 in (114 mm) |
| Turret Tooling | BMT75 |
| Live Tool Speed | 4,000 rpm |
| Live Tooling | BMT75 |
| Coolant Capacity | 95 gal (360 L) |
| Air Required | 4 scfm @ 100 psi (113 L/min @ 6.9 bar) |
| Inline Air Hose | 3/8 in |
| Air Coupler | 3/8 in |
| Air Pressure Min | 80 psi (5.5 bar) |
| Electrical Service (low voltage) | 220 VAC 3-phase, 70 A |
| Electrical Service (high voltage) | 440 VAC 3-phase, 35 A |
| Shipping Domestic Pallet | 216.5 × 94.3 × 110 in (550 × 239 × 279 cm) |
| Shipping Export Pallet | 216.5 × 98 × 120 in (550 × 249 × 305 cm) |
Specifications sourced from haascnc.com — verified 2026-10-02
Strengths & Limitations
Strengths
- 44 in (1,118 mm) of Z travel with 42 in (1,067 mm) of tailstock travel behind a 7 in (177.8 mm) bore
- 12-station BMT75 turret with 4,000 rpm live tooling; a 24-station half-index turret is optional
- Full C-axis interpolation, with 0.01° positioning and a 450 ft-lbf (610 N·m) brake
- WiFi, HaasDrop wireless file transfer, Safe Run and HaasConnect remote monitoring are standard
- Optional XP spindle package: 55 hp (41 kW) and 2,100 ft-lbf (2,847 N·m) at 150 rpm
Limitations
- Spindle speed tops out at 1,400 rpm, against 2,400 rpm on the ST-40
- Y travel is ± 3 in (± 76 mm), narrow against a 27.5 in (699 mm) turning diameter
- Auto Door and the 24-station half-index turret are options, and so is the 18 in (457 mm) chuck
- The C axis turns at 49 rpm on a 5 hp (3.7 kW) rating, so contour milling round a large diameter is slow
- X and Y rapids of 472 ipm (12 m/min) trail the 710 ipm (18 m/min) Z rapid
Best For
Frequently Asked Questions
01
The ST-40 has X and Z travel only, an A2-8 nose, a 4.62 in (117.3 mm) bore, 2,400 rpm and a 30 in (762 mm) turning diameter. The ST-45Y adds ± 3 in (± 76 mm) of Y, a C axis and 4,000 rpm live tooling, and has an A2-11 nose with a 7 in (177.8 mm) bore, 1,400 rpm and a 27.5 in (699 mm) turning diameter. Z travel is 44 in (1,118 mm) on both.
02
Haas's feature list names a 12-station BMT75 turret, 4,000 rpm live tooling and full C-axis interpolation, and marks WiFi, HaasDrop wireless file transfer, Safe Run and HaasConnect remote monitoring as standard. The 24-station half-index turret and the Auto Door are optional. In the spec table the 18 in (457 mm) chuck and the 55 hp (41 kW) XP spindle package are options too.
03
Y travel is ± 3 in (± 76 mm) with 2,300 lbf (10,231 N) of thrust. The C axis is rated 5 hp (3.7 kW), runs to 49 rpm and positions to 0.01°, with interpolated motion and positioning. Its brake measures 21.5 in (546 mm) across and holds 450 ft-lbf (610 N·m). Live tools on the BMT75 turret run to 4,000 rpm.
04
Maximum turning length and Z travel are 44 in (1,118 mm). The tailstock has an MT5 taper and 42 in (1,067 mm) of travel, with thrust from 200 lbf (890 N) to 3,000 lbf (13,345 N). Longer stock can extend back through the 7 in (177.8 mm) spindle bore, within the 6.5 in (165 mm) bar capacity that applies with optional workholding.
05
The base spindle is 40 hp (29.8 kW) with 1,400 ft-lbf (1,898 N·m) at 150 rpm, on 70 A at 220 VAC or 35 A at 440 VAC. The XP option is 55 hp (41 kW) with 2,100 ft-lbf (2,847 N·m) at 150 rpm, and its full-load figures are 105 A at 220 VAC or 53 A at 440 VAC. Top speed is 1,400 rpm either way, through a 2-speed gearbox.
Videos
clarkmachinery
More from Haas Automation
Other CNC Lathes / Turning Centers
Quicktech i-42 Twin
Takamaz J-WAVE PLUS

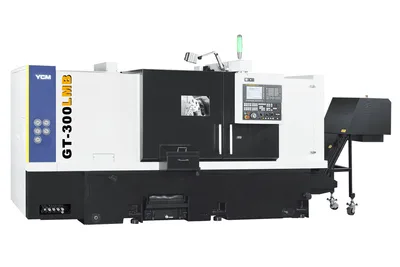

YCM GT-300LMB
