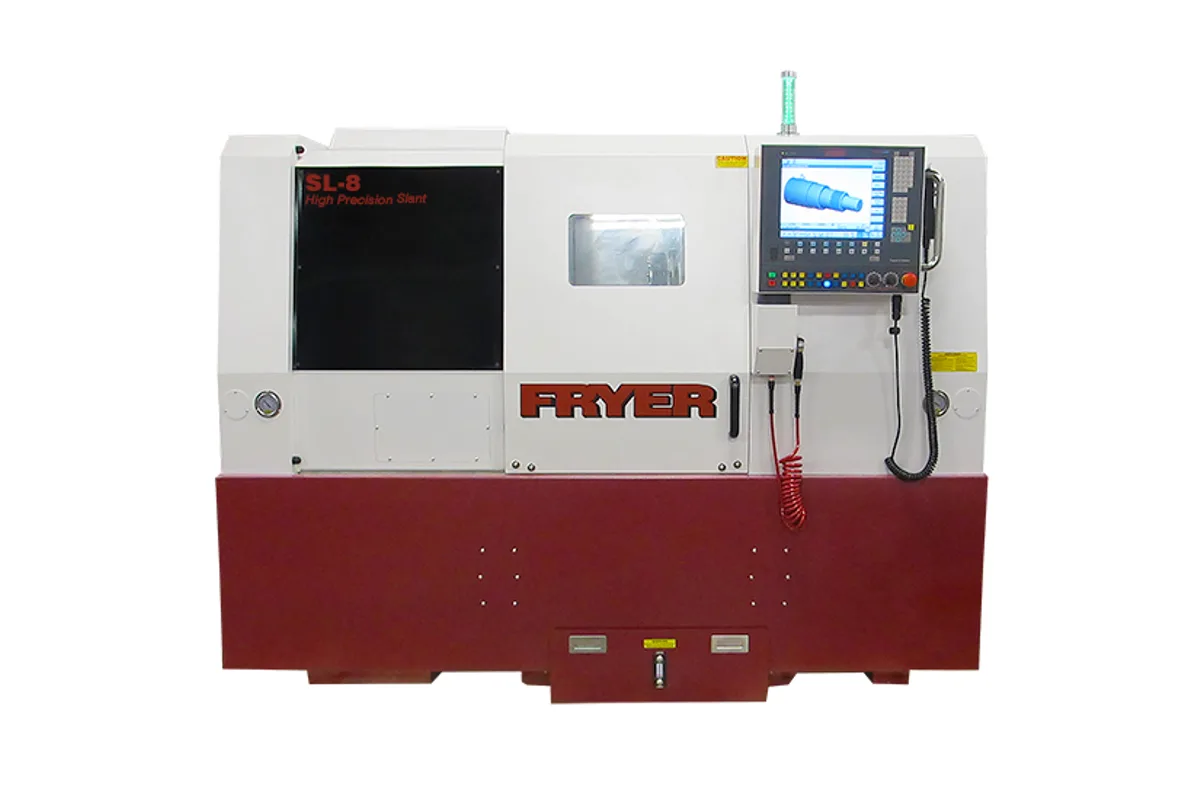

Fryer SL-8
Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Power
Max Turn Length
Accuracy
Repeatability
max swing
How much does the Fryer SL-8 cost?
Price estimate
We do not have a price for the Fryer SL-8 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fryer SL-8 is a slant bed CNC turning center with an 8 in (203 mm) hydraulic chuck, a 12 in (305 mm) maximum turning diameter and a 12 station turret. It is the smallest of three SL models and the production lathe in a Fryer lineup otherwise dominated by flat-bed toolroom machines. The bed is a one piece casting slanted at 45°, with box ways.
Accuracy is the claim Fryer makes loudest for this series, and the table has figures to match: positioning accuracy of +/- 0.00010 in (0.0025 mm) and repeatability of +/- 0.00005 in (0.0013 mm), half the tolerance band listed for the ET toolroom lathes. The spindle runs in P4 NN roller bearings. For bearing fits, hydraulic spools and other diameters held to tenths, that is the row to compare.
Bar work is the natural job. The spindle bore is 2.4 in (61 mm) and bar capacity 2.0 in (51 mm), with 3.0 in (76 mm) through the big bore option, which also changes the nose from A2-6 to A2-8. Top speed is 4,200 rpm with 30 hp (22.4 kW) peak, the turret indexes in 1 second per tool, and rapids are 1,200 ipm (30.5 m/min). A magazine bar feeder and an automatic parts catcher are on the options sheet.
Standard working length is 16 in (406 mm), short even for a chucker; Z travel can be extended to 24" or 46". With the live tool turret and 'C' axis options the machine also mills and drills. It weighs 11,500 lb (5,216 kg) and occupies 90 x 69 in (2,286 x 1,753 mm).
Full Specifications
| Parameter | Value |
|---|---|
| Max Swing | 20 in (508 mm) |
| Max Turning Diameter | 12 in (305 mm) |
| Max Turning Length | 16 in (406 mm); 24 in (610 mm) or 46 in (1,168 mm) optional |
| Distance Between Centers | 19 in (483 mm); 27 in (686 mm) or 51 in (1,295 mm) optional |
| X Axis Travel | 7.5 in (191 mm) |
| Z Axis Travel | 16 in (406 mm); 24 in (610 mm) or 48 in (1,219 mm) optional |
| Turret Stations | 12 |
| Turret Tooling | 1 in (25 mm) BOT (VDI-30, BMT-45) |
| Turret Index Time | 1 second |
| Spindle Nose | A2-6 |
| Spindle Bore | 2.4 in (61 mm) |
| Bar Capacity | 2.0 in (51 mm); 3.0 in (76 mm) optional |
| Chuck Size | 8 in (203 mm); 10 in (254 mm) optional |
| Max Spindle Speed | 4,200 rpm |
| Spindle Motor Power | 30 hp (22.4 kW) peak |
| Tailstock Quill Travel | 4.0 in (102 mm) |
| Tailstock Quill Diameter | 3.15 in (80 mm) |
| Tailstock Quill Taper | MT-4 |
| Positioning Accuracy | +/- 0.00010 in (0.0025 mm) |
| Repeatability | +/- 0.00005 in (0.0013 mm) |
| Rapid Traverse Xz | 1,200 ipm (30.5 m/min) |
| Servo Type | AC Digital Brushless |
| Axis Thrust | 6,360 lb (2,885 kgf) X, Z |
| Coolant Capacity | 40 gal (151 L) |
| Coolant Flow | 5 gpm (19 L/min) |
| Power Requirement | 40 A |
| Voltage Requirement | 380-500 VAC, 3 phase (208-250 VAC optional) |
| Shipping Dimensions | 90 x 69 x 70 in (2,286 x 1,753 x 1,778 mm) |
| Machine Dimensions | 90 x 69 x 70 in (2,286 x 1,753 x 1,778 mm) |
| Machine Weight | 11,500 lb (5,216 kg) |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Positioning accuracy of +/- 0.00010 in (0.0025 mm) and repeatability of +/- 0.00005 in (0.0013 mm)
- 45° one piece slant bed with box way construction
- 4,200 rpm spindle with 30 hp (22.4 kW) peak
- 12 station turret with a 1 second index time
- Compact 90 x 69 in (2,286 x 1,753 mm) footprint
Limitations
- Standard working length is only 16 in (406 mm); longer Z travel is an option
- Bar capacity of 2.0 in (51 mm) unless the big bore option is ordered
- Live tooling, Y axis and bar feeder are options
- Standard supply is 380-500 VAC, 3 phase
Best For
Frequently Asked Questions
01
Swing over the bed is 20 in (508 mm), maximum turning diameter 12 in (305 mm) and standard working length 16 in (406 mm). The hydraulic chuck is 8 in (203 mm), with 10 in (254 mm) optional, the spindle bore is 2.4 in (61 mm) and bar capacity is 2.0 in (51 mm).
02
Fryer's table gives positioning accuracy of +/- 0.00010 in (0.0025 mm) and positioning repeatability of +/- 0.00005 in (0.0013 mm). The series page lists P4 NN roller spindle bearings, box way construction and a 45° one piece slant bed.
03
04
A 12 position turret for 1 in (25 mm) bolt-on tooling, with VDI-30 or BMT-45 as alternatives. A 12 station live tool turret in VDI-30 or BMT-45 with a 10 HP live tool spindle motor is listed for the SL-8, as is a Y axis live tool turret.
