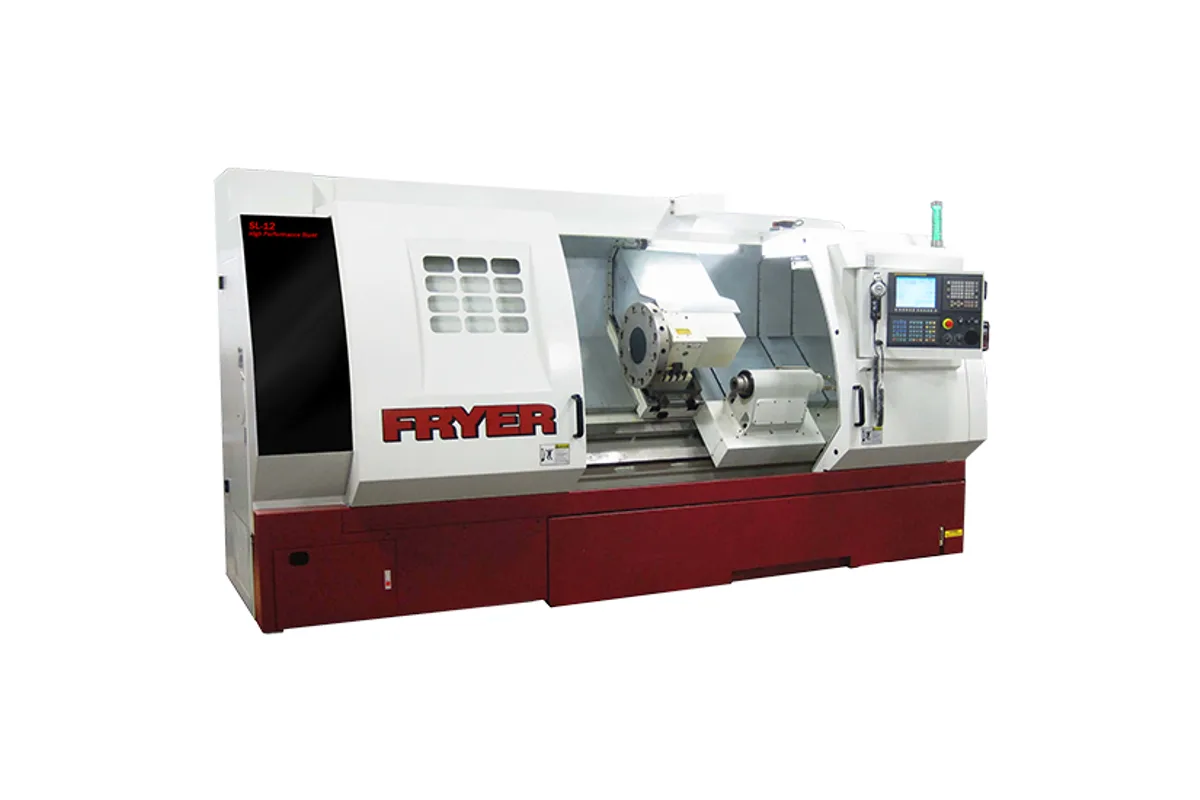

Fryer SL-12

Q: How much does the Fryer SL-12 cost?

The price estimate for the Fryer SL-12 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/fryer-sl-12#price; the request is passed to Fryer or an authorised dealer.

Specs verified 2026-10-04 · fryermachine.com Updated 2026-10-04

Image: fryermachine.com, Fryer

Key Specifications

Max Spindle

3,000 rpm

Spindle Power

40 hp (29.8 kW) peak

Max Turn Length

24 in (610 mm); 46 in (1,168 mm) or 80 in (2,032 mm) optional

Accuracy

+/- 0.00010 in (0.0025 mm)

Repeatability

+/- 0.00005 in (0.0013 mm)

max swing

28 in (711 mm)

How much does the Fryer SL-12 cost?

Price estimate

Uncertain

We do not have a price for the Fryer SL-12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Largest of the SL slant bed turning centers, the Fryer SL-12 carries a 12 in (305 mm) hydraulic chuck, turns up to 18 in (457 mm) in diameter and passes 3.6 in (91 mm) bar through a 4.17 in (106 mm) spindle bore. A 15 in (381 mm) chuck is the upgrade.

The table shows that Fryer strengthened the axes for this size. Peak thrust on X and Z is 10,732 lb, where the SL-10 has 6,360 lb, and the tailstock quill grows to 4.15 in (105 mm) with an MT-5 taper. Cross slide travel is 11 in (279 mm). Those rows, together with box ways on a 45° bed, describe a lathe intended to take heavy cuts on large-diameter steel while still positioning to +/- 0.00010 in (0.0025 mm).

Motor and nose are shared with the SL-10, 40 hp (29.8 kW) peak on A2-8, and maximum speed is 3,000 rpm. On an 18 in part that speed is rarely the limit; torque is, and the 2 speed ZF gearbox option addresses it. Bar capacity is already at 3.6 in in the base machine, so no big bore option is listed for this model.

As on the SL-10, working length is 24 in (610 mm) as standard and 46 in (1,168 mm) or 80 in (2,032 mm) with the extended Z travel options. The machine is 128 x 69 in (3,251 x 1,753 mm) in the standard length, weighs 16,000 lb (7,258 kg) and needs 80 A. Live tooling in VDI-40 or BMT-55, a Y axis turret, a parts catcher and a bar feeder are available.

Full Specifications

Parameter	Value
Max Swing	28 in (711 mm)
Max Turning Diameter	18 in (457 mm)
Max Turning Length	24 in (610 mm); 46 in (1,168 mm) or 80 in (2,032 mm) optional
Distance Between Centers	27 in (686 mm); 51 in (1,295 mm) or 83 in (2,108 mm) optional
X Axis Travel	11 in (279 mm)
Z Axis Travel	24 in (610 mm); 46 in (1,168 mm) or 80 in (2,032 mm) optional
Turret Stations	12
Turret Tooling	1 in (25 mm) BOT (VDI-40, BMT-55)
Turret Index Time	1 second
Spindle Nose	A2-8
Spindle Bore	4.17 in (106 mm)
Bar Capacity	3.6 in (91 mm)
Chuck Size	12 in (305 mm); 15 in (381 mm) optional
Max Spindle Speed	3,000 rpm
Spindle Motor Power	40 hp (29.8 kW) peak
Tailstock Quill Travel	4.0 in (102 mm)
Tailstock Quill Diameter	4.15 in (105 mm)
Tailstock Quill Taper	MT-5
Positioning Accuracy	+/- 0.00010 in (0.0025 mm)
Repeatability	+/- 0.00005 in (0.0013 mm)
Rapid Traverse Xz	1,200 ipm (30.5 m/min)
Servo Type	AC Digital Brushless
Axis Thrust	10,732 lb (4,868 kgf) X, Z
Coolant Capacity	40 gal (151 L)
Coolant Flow	5 gpm (19 L/min)
Power Requirement	80 A
Voltage Requirement	380-500 VAC, 3 phase (208-250 VAC optional)
Shipping Dimensions	128 x 69 x 70 in (3,251 x 1,753 x 1,778 mm)
Machine Dimensions	128 x 69 x 70 in (3,251 x 1,753 x 1,778 mm)
Machine Weight	16,000 lb (7,258 kg)

Specifications sourced from fryermachine.com — verified 2026-10-04

Strengths & Limitations

Strengths

18 in (457 mm) maximum turning diameter with a 12 in (305 mm) chuck, 15 in (381 mm) optional
3.6 in (91 mm) bar capacity through a 4.17 in (106 mm) bore as standard
10,732 lb of peak axis thrust on X and Z
4.15 in (105 mm) tailstock quill with MT-5 taper
Working length extendable to 80 in (2,032 mm)

Limitations

Maximum speed of 3,000 rpm limits small-diameter work
Same 40 hp (29.8 kW) peak motor as the SL-10
Standard working length is 24 in (610 mm)
Coolant tank of 40 gal (151 L) with a 5 gpm (19 L/min) pump

Best For

Large-diameter chucking work up to 18 in (457 mm) Heavy bar work up to 3.6 in (91 mm) Long, stiff shafts with the extended Z travel options Close-tolerance turning of steel parts in production lots

Frequently Asked Questions

01 What is the largest part the Fryer SL-12 can turn?

Maximum turning diameter is 18 in (457 mm) under a 28 in (711 mm) swing over the bed. Working length is 24 in (610 mm) as standard and 46 in (1,168 mm) or 80 in (2,032 mm) with the extended Z travel options. Cross slide travel is 11 in (279 mm).

02 How does the SL-12 differ from the SL-10?

The SL-10 has a 10 in (254 mm) chuck, a 3.4 in (86 mm) bore, 6,360 lb of axis thrust and runs to 3,500 rpm. The SL-12 has a 12 in (305 mm) chuck, a 4.17 in (106 mm) bore, 10,732 lb of thrust, a larger tailstock quill and runs to 3,000 rpm. Both have 40 hp (29.8 kW) peak and an A2-8 nose.

03 What bar capacity does the SL-12 have?

3.6 in (91 mm), with a spindle bore of 4.17 in (106 mm). Fryer lists a magazine style bar feeder with 2.5" capacity on the options sheet, for bars up to 4' in length; stock larger than that is loaded by other means.

04 What control does the SL-12 use?

The series page describes the Fryer / Siemens 828-HS CNC with fast set-up and conversational programming, and lists shop floor and G code programming and a tool and part probe system. Fryer offers the series with a Siemens or Fanuc CNC.
