GF Machining Mikron VCE 1000 Pro
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
Overview
The Mikron VCE 1000 Pro is a production-oriented VMC from GF Machining Solutions VCE Pro series, designed for shops needing reliable high-uptime milling with GF build quality at a more accessible price than the MILL P or MILL E series.
Travels: 1,020 x 560 x 600 mm (40.2 x 22.0 x 23.6 in). Table: 1,000 x 560 mm (39.4 x 22.0 in), 1,350 kg (2,976 lb) capacity.
Standard spindle runs at 16,000 RPM with BT40/HSK-A63 taper. 24-pocket magazine (expandable to 60). Heidenhain TNC 640 control. Pricing: $160,000 to $260,000.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,020 mm (40.2 in) |
| Y-Axis Travel | 560 mm (22.0 in) |
| Z-Axis Travel | 600 mm (23.6 in) |
| Table Size | 1,000 x 560 mm (39.4 x 22.0 in) |
| Table Load Capacity | 3000 kg |
| Max Spindle Speed | 16,000 RPM (10,000 RPM option) |
| Spindle Taper | BT40 / HSK-A63 |
| Tool Capacity | 40 / 60 pockets - HSK-A6330 / 40 / 60 pockets - ISO & BT4024 / 40 pockets - ISO & BT50 |
| CNC Control | Heidenhain TNC 640 |
| Travel X Y Z | 2000 x 900 x 800 mm |
| Feed Rate X Y Z | 20 m/min |
| Rapid Feed Rate Xy Z | 40 m/min |
| Working Table | 2100 x 850 mm |
| Working Spindle | 16'000 rpm - HSK-A63 / ISO & BT 4010'000 rpm - ISO & BT406'000 rpm - ISO & BT50 |
| Automation | System 3R Workpartner 1+, Transformer WorkMaster & Transformer 6-axis |
Specifications sourced from gfms.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 1,020 x 560 x 600 mm travels with 1,350 kg table capacity provides generous working volume
- GF build quality and thermal stability at the VCE Pro price point
- Multiple spindle speed options optimize for the dominant material
- HSK-A63 or BT40 taper maintains compatibility with standard tooling
- Tool magazine expandable to 60 pockets supports complex programs
- Heidenhain TNC 640 provides advanced contour processing and look-ahead
Limitations
- Lacks ITC thermal compensation and Step-Tec spindle of MILL P series
- Competes with established Japanese and Korean VMCs at similar prices
- 3-axis configuration requires refixturing for multi-face work
- Limited high-speed finishing vs dedicated HSM machines with 30K+ RPM
Best For
Frequently Asked Questions
01
$160,000-$260,000 new depending on configuration.
02
VCE Pro is below MILL E. MILL E has higher speeds, better thermal management, broader automation. VCE Pro offers solid capability at lower cost.
03
16,000 RPM (10,000 RPM option)
04
Compatible with System 3R pallets and robotic loading.

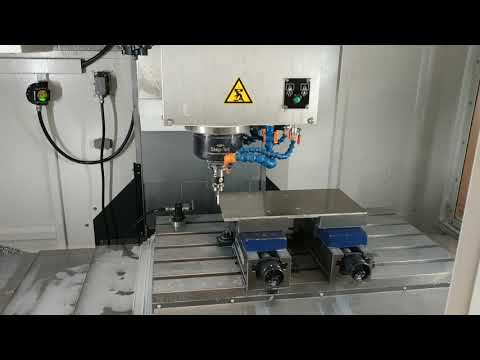

Videos
