Haas Automation Vertical Machining Centers

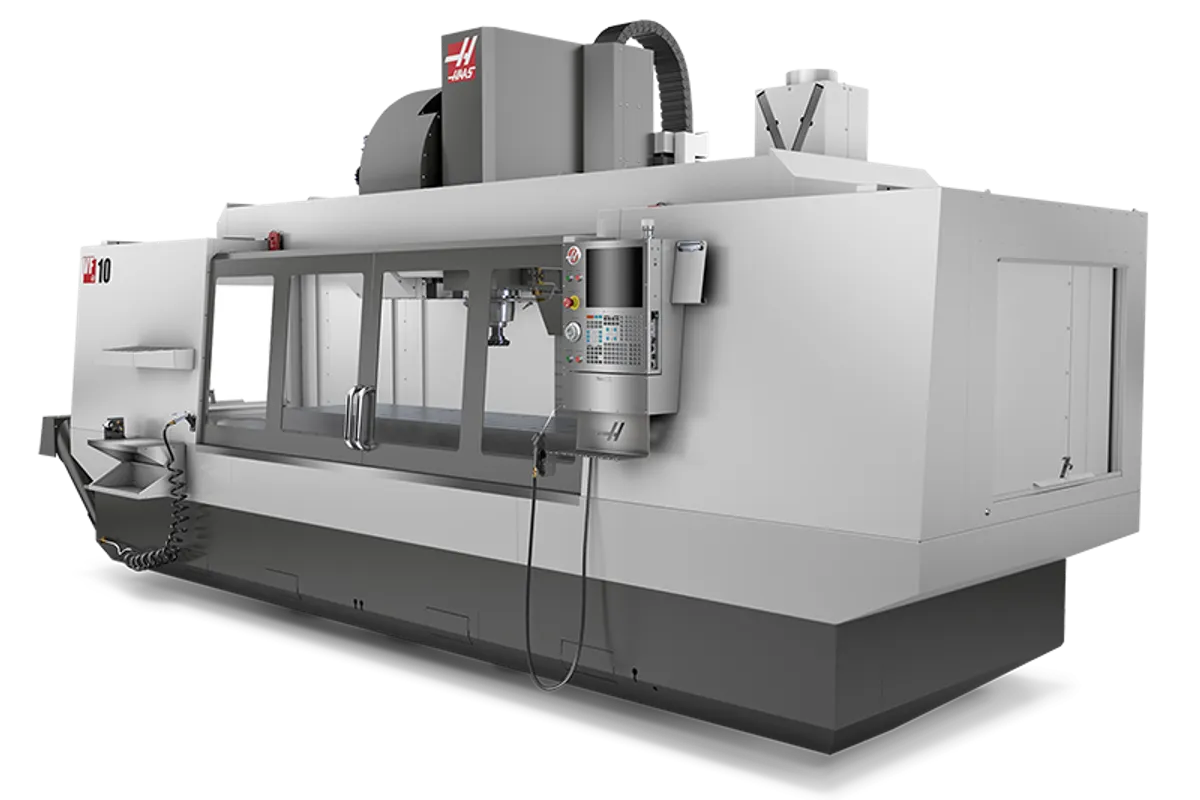

Haas VF-10/50

$210,000 - $275,000 Updated 2026-03-16

Key Specifications

X Travel

3,048 mm (120 in)

Y Travel

813 mm (32 in)

Z Travel

762 mm (30 in)

Max Spindle

7,500 RPM

Spindle Taper

CT50 / BT50

Tool Capacity

30+1 SMTC

Overview

The Haas VF-10/50 is the largest 50-taper VMC in the Haas VF lineup, combining the maximum X-travel of the VF-10 platform with the heavy-duty 50-taper spindle. With 3,048 x 813 x 762 mm (120 x 32 x 30 in) of travel, it handles the longest parts in the Haas vertical lineup.

The 2-speed gearbox spindle delivers 460 Nm (340 ft-lbf) of torque at 700 RPM with a 7,500 RPM max speed from 22.4 kW (30 hp). This is the same proven spindle unit used across the 50-taper VF range. At 3,048 mm of X-travel, the VF-10/50 can machine workpieces up to 10 feet long in a single setup — eliminating the need to reposition or use multiple operations.

The table measures 3,048 x 737 mm (120 x 29 in) and supports up to 2,268 kg (5,000 lb). The long table is ideal for running multiple parts in a row, machining long structural components, or processing large mold and die work that exceeds the capacity of mid-frame VMCs.

At approximately 13,154 kg (29,000 lb), the VF-10/50 is one of the heaviest VMCs Haas offers. That mass is essential for maintaining cut quality across the full 120 inches of X-travel — without it, vibration and deflection would degrade accuracy at the extremes of travel.

Base price starts around $210,000. The VF-10/50 serves a specific niche: shops that need both extreme X-travel and 50-taper torque for heavy ferrous materials. If your longest parts are under 84 inches, the VF-7/50 costs less and has a smaller footprint. Specs sourced from Haas Automation published data.

Full Specifications

Parameter	Value
X-Axis Travel	3,048 mm (120 in)
Y-Axis Travel	813 mm (32 in)
Z-Axis Travel	762 mm (30 in)
Spindle Nose To Table Max	965 mm (38 in)
Spindle Nose To Table Min	203 mm (8 in)
Max Spindle Speed	7,500 RPM
Spindle Taper	CT50 / BT50
Spindle Motor Power	30.0 hp
Spindle Torque Max	460 Nm (340 ft-lbf) @ 700 RPM
Spindle Drive	2-Speed Gearbox
Spindle Cooling	Liquid Cooled
Tool Capacity	30+1 SMTC
Tool To Tool	4.20 s
Chip To Chip	6.30 s
Max Tool Diameter	4.0 in
Max Tool Weight	30.0 lb
Table Size	3,048 x 737 mm (120 x 29 in)
Table Load Max	2,268 kg (5,000 lb)
T Slots	7 slots, 80 mm (3.15 in) center distance
Max Cutting Feedrate	12.7 m/min (500 ipm)
Rapid Traverse X	18.0 m/min (710 ipm)
Rapid Traverse Y	18.0 m/min (710 ipm)
Rapid Traverse Z	15.2 m/min (600 ipm)
Machine Weight	13,154 kg (29,000 lb)
CNC Control	Haas Next Generation Control (NGC)
Coolant Capacity	95 gal
Air Required	4 scfm @ 100 psi
Electrical Low	220 VAC 3-phase, 80 A
Electrical High	440 VAC 3-phase, 40 A
Travels	S.A.E
X Axis	120.00 in
Y Axis	32.00 in
Z Axis	30.00 in
Spindle Nose To Table	5.0 in
Spindle	S.A.E
Max Rating	30.0 hp
Max Speed	7500 rpm
Max Torque	340.0 ft-lbf @ 700 rpm
Drive System	2-Speed Gearbox
Taper	CT or BT 50
Bearing Lubrication	Air / Oil Injection
Cooling	Liquid Cooled
Table	S.A.E
Length	120.0 in
Width	28.0 in
T Slot Width	0.626 in to 0.630 in
T Slot Center Distance	4.92 in
Number Of Std T Slots	5
Max Weight On Table	4000 lb
Feedrates	S.A.E
Max Cutting	360 ipm
Rapids On X	360 ipm
Rapids On Y	600 ipm
Rapids On Z	600 ipm
Axis Motors	S.A.E
Max Thrust X	3400 lbf
Max Thrust Y	4100 lbf
Max Thrust Z	5600 lbf
Tool Changer	S.A.E
Type	SMTC
Capacity	30+1
Max Tool Diameter Large	10.0 in
Max Tool Length	16.00 in
General	S.A.E
Air Requirements	S.A.E
Inline Air Hose	3/8 in
Coupler	3/8 in
Air Pressure Min	80 psi
Electrical Specification	S.A.E
Input Ac Voltage Low	220 VAC
Full Load Amps Low	70 A
Input Ac Voltage High	440 VAC
Full Load Amps High	35 A
Dimensions Shipping	S.A.E
Domestic Pallet	288.0 in x 102.0 in x 132.0 in
Export Crate	288.0 in x 105.0 in x 133.5 in
Machine Weight	31600 lb
Domestic Pallet W Ec Option	288 in x 102 in x 140 in
Export Crate W Ec Option	288 in x 105 in x 141 in
Weight W Ec Option	31600 lb
Haas Rotary	HAAS MACHINE
Ha2ts	VF-10/50
Ha5c	VF-10/50
Ha5c T	VF-10/50
Ha5c2	VF-10/50
Ha5c2 T	VF-10/50
Ha5c3	VF-10/50
Ha5c3 T	VF-10/50
Ha5c4	VF-10/50
Ha5c4 T	VF-10/50
Ha5cs	VF-10/50
Hqda5	VF-10/50
Hrc160	VF-10/50
Hrc210	VF-10/50
Hrt160	VF-10/50
Hrt160 2	VF-10/50
Hrt160sp	VF-10/50
Hrt160ss	VF-10/50
Hrt200hs	VF-10/50
Hrt210	VF-10/50
Hrt210 2	VF-10/50
Hrt210ht	VF-10/50
Hrt210m	VF-10/50
Hrt210sp	VF-10/50
Hrt210ss	VF-10/50
Hrt210vm	VF-10/50
Hrt310	VF-10/50
Hrt310sp	VF-10/50
Hrt310ss	VF-10/50
Hrt450	VF-10/50
Hrta5	VF-10/50
Hrta6	VF-10/50
Lt260	VF-10/50
Lt350	VF-10/50
T5c	VF-10/50
T5c2	VF-10/50
T5c3	VF-10/50
T5c4	VF-10/50
Th240	VF-10/50
Th450	VF-10/50
Tr160	VF-10/50
Tr160 2	VF-10/50
Tr200y	VF-10/50
Tr210	VF-10/50
Tr310	VF-10/50
Tr500ss	VF-10/50
Trt100	VF-10/50
Trt160	VF-10/50
Trt210	VF-10/50
Trt310	VF-10/50
Trt70	VF-10/50

Specifications sourced from haascnc.com — verified 2026-03-28

Strengths & Limitations

Strengths

3,048 mm (120 in) X-travel is the longest in the Haas VMC lineup — machines 10-foot parts in a single setup
460 Nm (340 ft-lbf) torque from 2-speed gearbox delivers heavy cutting authority across the full travel
13,154 kg (29,000 lb) machine weight ensures stability and vibration damping at extreme X-travel positions
2,268 kg (5,000 lb) table load supports heavy long workpieces and multi-part fixture plates
Eliminates repositioning operations on long parts, improving accuracy and reducing cycle time
120-inch table allows running many smaller parts in a row for production efficiency

Limitations

Massive footprint requires significant floor space — the machine spans over 6 meters in length
7,500 RPM max speed limits aluminum work — the 40-taper VF-10 offers higher RPM
29,000 lb shipping weight demands heavy rigging and potentially reinforced flooring
Base price around $210K is justified only for shops that regularly machine long, heavy parts
50-taper tooling inventory is significantly more expensive than 40-taper
Long X-travel means higher non-cutting time on rapid moves between features at opposite ends

Best For

Shops machining structural steel components, beams, and plates up to 3 meters in length Large mold base and die work requiring both extreme length and 50-taper cutting authority Energy sector component machining — turbine housings, manifolds, and long shaft supports Multi-part production runs where parts can be loaded across the full table length Heavy equipment manufacturers machining long frame members and structural elements Shops eliminating multi-setup operations by consolidating long parts into single-setup machining

Frequently Asked Questions

01 What does a new Haas VF-10/50 cost?

Base price starts around $210,000. With through-spindle coolant, probing, chip conveyor, and other common options, expect $245,000-$275,000. It's the most expensive VF-series VMC due to the combination of extreme travel and 50-taper spindle.

02 How does the VF-10/50 compare to the VF-7/50?

The VF-10/50 adds 914 mm (36 in) more X-travel (3,048 vs 2,134 mm). Both share the same Y-travel, Z-travel, spindle, and tool changer. The VF-10/50 weighs about 2,721 kg (6,000 lb) more. Choose the VF-10/50 only if your parts exceed 84 inches in length.

03 What floor requirements does the VF-10/50 have?

At 13,154 kg (29,000 lb), the VF-10/50 requires a concrete floor capable of supporting concentrated point loads. Typically 150 mm (6 in) minimum reinforced concrete is needed. Consult a structural engineer if your shop floor was not designed for heavy machine tools.

04 Is there a longer Haas VMC available?

The VF-10/50 is the longest VMC Haas offers at 120 inches of X-travel. For even longer parts, you would need to look at Haas gantry-style machines or consider manufacturers that build bridge-type mills with travel exceeding 3 meters.

05 Can I use the VF-10/50 for production runs of smaller parts?

Yes. The long table is excellent for loading multiple smaller parts in a row. You can set up a series of vises across the 120-inch table and machine multiple parts per cycle, which is very efficient for production work on parts that individually fit smaller machines.
