Fryer 5X-60

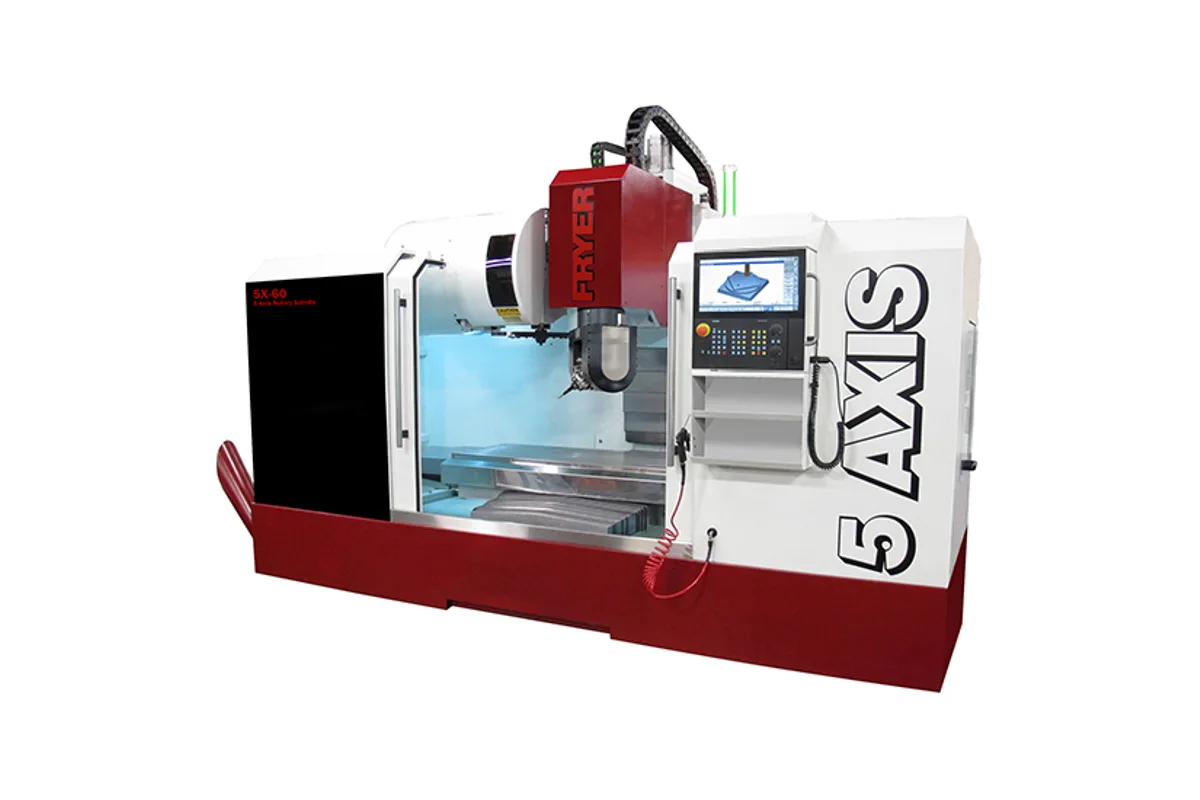

Image: fryermachine.com, Fryer
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Fryer 5X-60 cost?
Price estimate
We do not have a price for the Fryer 5X-60 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fryer 5X-60 is a 5-axis machining center in which the spindle does the tilting and rotating and the part stays flat on the table. Travels are 60 x 30 x 35 in (1,524 x 762 x 889 mm) on linear ways, and the head, which Fryer identifies as a Kessler 2-axis unit, gives an A travel of +/- 95° and a C travel of +/- 200°.
Putting both rotary axes in the head suits parts that are awkward to swing on a trunnion: long, heavy or fixture-bound workpieces. The table is 24 x 67 in (610 x 1,702 mm) and carries 5,000 lb (2,268 kg) regardless of what the head is doing. What the arrangement gives up is reach. The spindle nose sits 11 in (279 mm) from the centre of rotation, so every tilt sweeps the tool through an arc that uses up X, Y and Z travel, and the usable 5-axis envelope is smaller than the linear travels suggest.
The spindle is a high-speed unit: 200 - 18,000 rpm, HSK-63A, 35 hp (26.1 kW) peak with 40 ft-lb (54 Nm) at 1,000 rpm. It is the faster and lighter of the two spindles in the series; the 5X-120 and 5X-160 carry 55 hp (41.0 kW) at 15,000 rpm. Rapids are 1,200 ipm (30.5 m/min), the rotary axes position to 5 seconds of arc, and Fryer lists Heidenhain glass scales among the series features.
A 40-station arm type changer is standard. The control is a full 5-axis Siemens SINUMERIK ONE or Fanuc 31i B5. Supply is 125 A at 380-500 VAC, and the machine weighs 20,000 lb (9,072 kg).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 60 in (1,524 mm) |
| Y Axis Travel | 30 in (762 mm) |
| Z Axis Travel | 35 in (889 mm) |
| A Axis Range | +/- 95° |
| C Axis Range | +/- 200° |
| Max Table Load | 5,000 lb (2,268 kg) |
| Table Size | 24 x 67 in (610 x 1,702 mm) |
| Way Type | Linear |
| T-Slots | 5 / 0.709 in (18 mm) |
| Table Top to Floor | 32 in (813 mm) |
| Spindle Motor Power | 35 hp (26.1 kW) peak |
| Max Spindle Speed | 200 - 18,000 rpm |
| Spindle Torque | 40 ft-lb (54 Nm) at 1,000 rpm |
| Spindle Taper | HSK-63A |
| Spindle Nose to Center of Rotation | 11 in (279 mm) |
| Distance Spindle Nose to Table Vertical | 0 - 30 in (0 - 762 mm) |
| Distance Spindle Nose to Table Horizontal | 5 - 40 in (127 - 1,016 mm) |
| Spindle Center to Column | 30 in (762 mm) |
| Tool Capacity | 40-station arm type (60 tool optional) |
| Tool Change Time | 3 seconds |
| Max Tool Diameter (full magazine) | 3.0 in (76 mm) |
| Max Tool Diameter (adjacent pockets empty) | 5.9 in (150 mm) |
| Max Tool Weight | 15.0 lb (6.8 kg) |
| Max Tool Length | 13 in (330 mm) |
| Positioning Accuracy | +/- 0.0002 in (0.0051 mm) |
| Repeatability | +/- 0.0001 in (0.0025 mm) |
| Positioning Accuracy A C | 5 seconds of arc |
| Repeatability A C | 3 seconds of arc |
| Rapid Traverse Xyz | 1,200 ipm (30.5 m/min) X, Y, Z |
| Cutting Feed Rate | 0.001 - 800 ipm (up to 20.3 m/min) X, Y, Z; 100 ipm A, C |
| Servo Type | AC Digital Brushless |
| Axis Thrust | 4,500 lb (2,041 kgf) |
| Air Requirement | 90 psi (6.2 bar), 5 cfm (142 L/min) |
| Coolant Capacity | 100 gal (379 L) |
| Coolant Flow | 9 gpm (34 L/min) |
| Door Opening Width | 62 in (1,575 mm) |
| Power Requirement | 125 A, 380-500 VAC, 3 phase |
| Shipping Dimensions | 161 x 89 x 93 in (4,089 x 2,261 x 2,362 mm) |
| Machine Dimensions | 161 x 112 x 112 in (4,089 x 2,845 x 2,845 mm) |
| Machine Weight | 20,000 lb (9,072 kg) |
Specifications sourced from fryermachine.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Two-axis head: A travel of +/- 95° and C travel of +/- 200°, with the part fixed on the table
- 18,000 rpm HSK-63A spindle, 35 hp (26.1 kW) peak
- 1,200 ipm (30.5 m/min) rapids on linear ways
- Rotary positioning accuracy of 5 seconds of arc
- 40-station tool changer as standard, 60 tools optional
Limitations
- Spindle torque is 40 ft-lb (54 Nm), far below the 90 ft-lb (122 Nm) of the 5X-120
- The 11 in (279 mm) from spindle nose to centre of rotation reduces usable travel when the head tilts
- Requires 125 A at 380-500 VAC
- Tools are limited to 3.0 in (76 mm) in diameter with the magazine full and 15.0 lb
Best For
Frequently Asked Questions
01
With a 2-axis articulating spindle head rather than a tilting table. Fryer describes a Kessler tilting/rotary head with 360° of rotation and 200° of spindle tilt; its specification table lists A travel of +/- 95° and C travel of +/- 200°. The part stays on a fixed-orientation 24 x 67 in (610 x 1,702 mm) table.
02
An HSK-63A spindle running 200 - 18,000 rpm with 35 hp (26.1 kW) peak and 40 ft-lb (54 Nm) at 1,000 rpm. The spindle nose is 11 in (279 mm) from the centre of rotation. A lighter carbon fiber duty articulating head is listed as an option in place of the Kessler head.
03
Linear positioning accuracy is +/- 0.0002 in (0.0051 mm) with repeatability of +/- 0.0001 in (0.0025 mm). For the A and C axes the table gives 5 seconds of arc accuracy and 3 seconds of arc repeatability. Fryer lists high power torque motors and Heidenhain glass scales for the series.
04
With the spindle vertical, spindle nose to table is 0 - 30 in (0 - 762 mm). With the spindle horizontal it is 5 - 40 in (127 - 1,016 mm). The spindle centre is 30 in (762 mm) from the column and the door opens 62 in (1,575 mm).
