Fidia UHE 1000

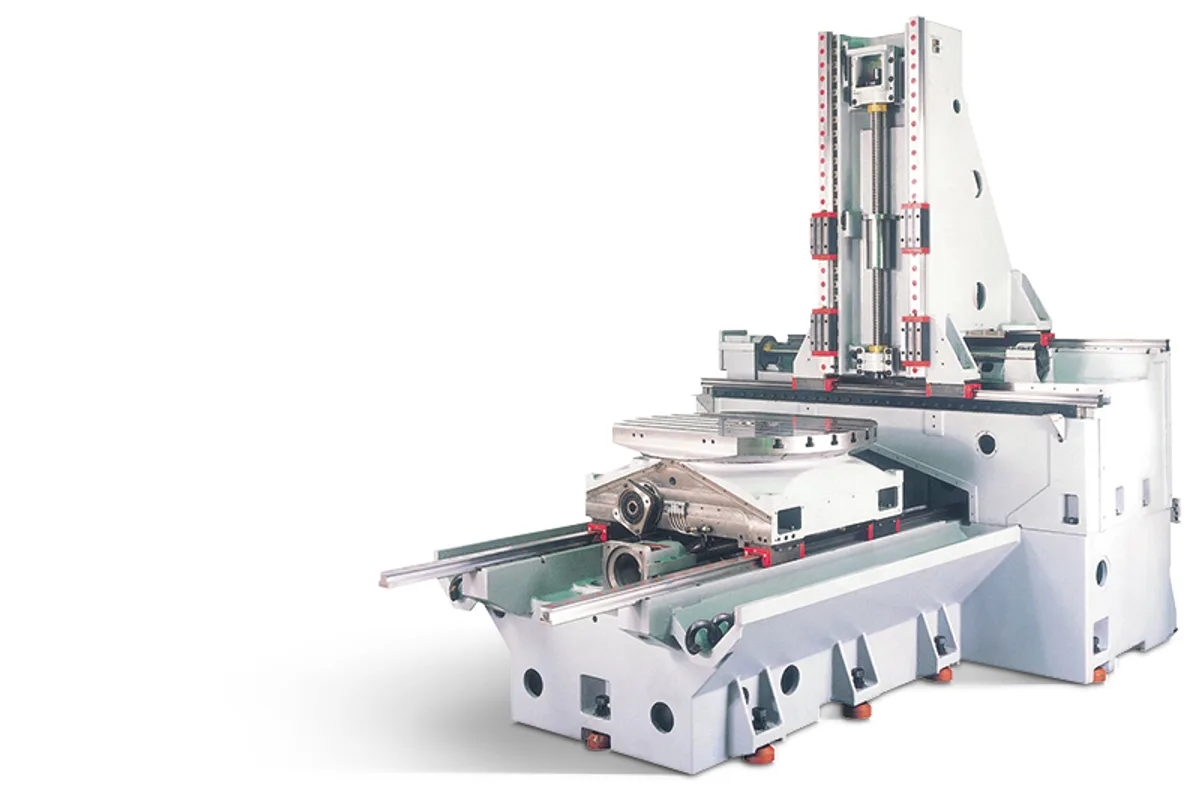

Image: fidia.it, Fidia
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
x axis travel
y axis travel
How much does the Fidia UHE 1000 cost?
Price estimate
We do not have a price for the Fidia UHE 1000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Fidia UHE 1000 is a 5-axis universal machining centre that splits its rotary axes between a swivelling head and a rotary table. Linear travels are 1,000 mm (39.4 in) in X, 800 mm (31.5 in) in Y and 700 mm (27.6 in) in Z, and the 1,000 x 800 mm (39.4 x 31.5 in) table carries 1,500 kg (3,307 lb).
The B axis is in the head. A torque motor swings the spindle through 0° ÷ 180°, from vertical to horizontal, in 0.001° increments, with a direct angular encoder and a hydraulic brake. The C axis is the table, driven by a worm gear with a direct rotary encoder and a clamping torque of 3,090 Nm. Because the table rotates and never tilts, a heavy part stays flat on its fixture through the whole cycle.
Fidia builds the frame from 3 separate castings: bed, X axis column and spindle headstock. The ballscrews are 50/50/50 mm diameter, directly coupled to the servo motors, on 55/55/55 mm roller guideways. Linear scales on the linear axes and rotary encoders on B and C are part of the basic machine. Maximum feed is 24 m/min.
The standard spindle gives 18,000 rpm on HSK 63A or BT#40 with 26/32 kW - 124/154 Nm (S1/S6); a 24,000 rpm HSK 63A electrospindle is optional. A 40-position chain magazine is standard, tool to tool in 3 sec, for tools up to 120 mm / 300 mm and 7 kg. The UHE 1600 is the heavy-duty sibling, with a 4,000 kg (8,818 lb) table load.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,000 mm (39.4 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 700 mm (27.6 in) |
| Max Feed | 24 m/min |
| Table Size | 1,000 x 800 mm (39.4 x 31.5 in) |
| Table Drive | Worm gear |
| Max Table Load | 1,500 kg (3,307 lb) |
| Max Rotating Diameter | 800 mm (31.5 in) |
| Table Minimum Increment | 0.001° |
| Table Clamping Torque | 3,090 Nm |
| Table Max Feed | 11.1 rpm |
| Head Travel | 0° ÷ 180° |
| Head Indexing Increment | 0.001° |
| Head Max Feed | 16.6 rpm |
| Spindle Power Torque | 26/32 kW - 124/154 Nm (S1/S6) |
| Spindle Taper | HSK 63A or BT#40 |
| Max Spindle Speed | 18,000 rpm (optional 24,000 rpm HSK 63A) |
| Tool Capacity | 40 positions |
| Tool Change Time | 3 sec (tool to tool) |
| Max Tool Size | 120 mm / 300 mm (diameter/length) |
| Max Tool Weight | 7 kg |
| Ballscrews | 50/50/50 mm diameter, 12/12/12 mm pitch (X/Y/Z) |
| Ballscrew Precision Class | C3 - mm/300mm : 0.008 |
| Linear Roller Guide Width | 55/55/55 mm (X/Y/Z) |
| Distance Floor to Table Top | 1,000 mm (39.4 in) |
| Power Requirement | 20 kVA |
| Machine Dimensions | 4,000 x 4,000 x 3,500 mm (L x W x H) |
Specifications sourced from fidia.it — verified 2026-10-05
Strengths & Limitations
Strengths
- Rotary table that does not tilt, carrying 1,500 kg (3,307 lb)
- Torque motor swivel head covering 0° ÷ 180° in 0.001° increments
- Linear scales and direct rotary encoders on B and C in the basic machine
- 18,000 rpm spindle with 26/32 kW - 124/154 Nm (S1/S6), 24,000 rpm optional
- 40-position chain magazine with 3 sec tool to tool
Limitations
- The C axis table turns at only 11.1 rpm on its worm gear; the UHE 1600 table reaches 60 rpm
- Head travel of 0° ÷ 180° means undercuts depend on rotating the table
- Maximum tool weight is 7 kg, with tools up to 120 mm / 300 mm
- Maximum feed is 24 m/min on the linear axes
Best For
Frequently Asked Questions
01
Three linear axes, a B axis in the swivelling milling head and a C axis in the rotary table. The head is driven by a torque motor through 0° ÷ 180° and the table by a worm gear. Both rotary axes have a minimum increment of 0.001° and direct encoders.
02
The table is 1,000 x 800 mm (39.4 x 31.5 in) with a maximum load of 1,500 kg (3,307 lb) and a maximum rotating diameter of 800 mm (31.5 in). Its clamping torque is 3,090 Nm and the distance from floor to table top is 1,000 mm (39.4 in).
03
The standard spindle runs at 18,000 rpm with 26/32 kW - 124/154 Nm (S1/S6) on an HSK 63A or BT#40 taper. The optional electro spindle reaches 24,000 rpm on HSK 63A with 21/27 Kw and 85/116 Nm.
04
A 40 positions chain type magazine with a double swing arm is standard, with a tool to tool time of 3 sec. Tools can be up to 120 mm / 300 mm in diameter and length and 7 kg. The option list includes an ATC with 52/60/80 positions.
