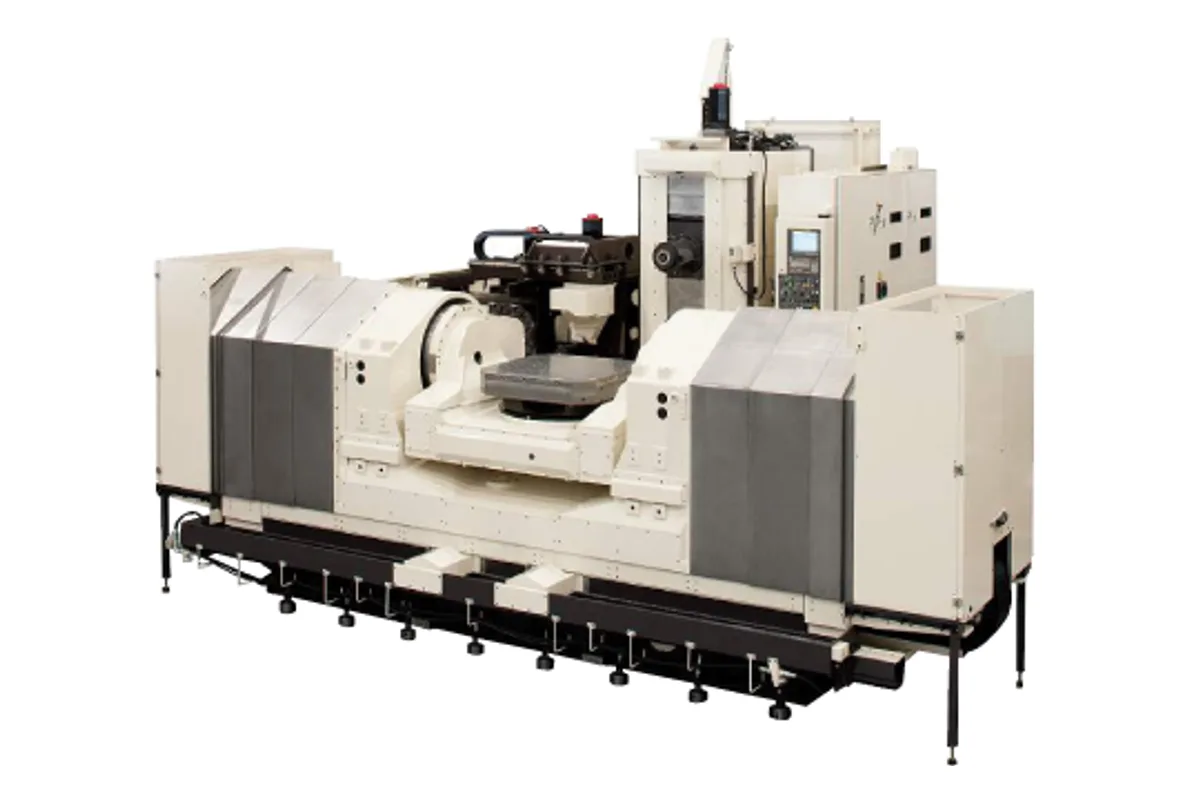

Yasda YBM 10T-100TT
Image: yasda.co.jp, Yasda Precision
Key Specifications
X Travel
Y Travel
Z Travel
Max Spindle
Spindle Taper
Tool Capacity
How much does the Yasda YBM 10T-100TT cost?
Price estimate
We do not have a price for the Yasda YBM 10T-100TT that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Yasda says the YBM 10T-100TT demonstrates overwhelming power and superior capability for machining large workpieces such as aerospace parts and difficult-to-cut materials. It is a table trunnion type 5-axis machine with a table working size of 1,000 x 1,000 mm (39.4 x 39.4 in) and travels of 1,500 mm (59.1 in) in X, 1,200 mm (47.2 in) in Y and 1,100 mm (43.3 in) in Z.
Those travels are the same as on the YBM 10T precision center, so the trunnion has been added without giving up reach. What does change is height. The machine stands 4,885 mm (192.3 in), against 4,125 mm for the YBM 10T, and that has to be checked against the building before anything else.
The spindle list is short and aimed at heavy cutting. The base spindle runs 50-10,000 min-1 on MAS BT50. The only alternative is a high-torque spindle that runs 60-10,000 min-1 on the same taper, so the top speed is kept while low-speed pull is added. For titanium and nickel alloys, where cutting speeds are low and forces high, that is the configuration to ask about. No faster spindle is offered.
A trunnion carrying a table of this size is a large mass to tilt, and Yasda publishes no tilt range, rotation range or table load on the product page. Get those figures early. The magazine holds 60 tools, with 90 tools or 120-450 tools as options. No pallet changer is standard; a 5PLS APC is optional. The control is a FANUC 31i-B5 Plus.
Full Specifications
| Parameter | Value |
|---|---|
| X-Axis Travel | 1,500 mm (59.1 in) |
| Y-Axis Travel | 1,200 mm (47.2 in) |
| Z-Axis Travel | 1,100 mm (43.3 in) |
| Table Working Size | 1,000 x 1,000 mm (39.4 x 39.4 in) |
| Max Spindle Speed | 50-10,000 min-1 (60-10,000 min-1 high-torque spindle opt.) |
| Spindle Taper | MAS BT50 |
| Tool Capacity | 60 tools (90 tools/120-450 tools opt.) |
| APC | 5PLS (opt.) |
| CNC Control | FANUC 31i-B5 Plus |
| Machine Height | 4,885 mm (192.3 in) |
Specifications sourced from yasda.co.jp — verified 2026-10-05
Strengths & Limitations
Strengths
- Table trunnion type 5-axis machine with a 1,000 x 1,000 mm (39.4 x 39.4 in) table working size
- Same 1,500 x 1,200 x 1,100 mm travels as the YBM 10T precision center
- Optional high-torque spindle that still reaches 10,000 min-1
- MAS BT50 taper on both spindles
- Tool storage up to 120-450 tools and a 5PLS APC as options
Limitations
- Machine height of 4,885 mm (192.3 in)
- Spindle speed ends at 10,000 min-1 on both spindles
- Tilt range, rotation range and table load are not published on the product page
- A pallet changer is optional and not part of the base machine
Best For
Frequently Asked Questions
01
Yasda names large workpieces such as aerospace parts and difficult-to-cut materials. It is a table trunnion type 5-axis machine with a 1,000 x 1,000 mm table working size.
02
1,500 mm (59.1 in) in X, 1,200 mm (47.2 in) in Y and 1,100 mm (43.3 in) in Z. No stroke extension is listed among the options for this model, unlike the YBM 10T.
03
The base spindle runs 50-10,000 min-1 with a MAS BT50 taper hole. The optional high-torque spindle runs 60-10,000 min-1, also with MAS BT50. No higher-speed spindle is listed.
04
Machine height is 4,885 mm (192.3 in). The YBM 10T, which has the same travels without the trunnion, stands 4,125 mm with its 1,200 mm Y stroke.
