Fermat WRF 130

Specs verified 2026-10-05 · fermatmachinery.com Updated 2026-10-05

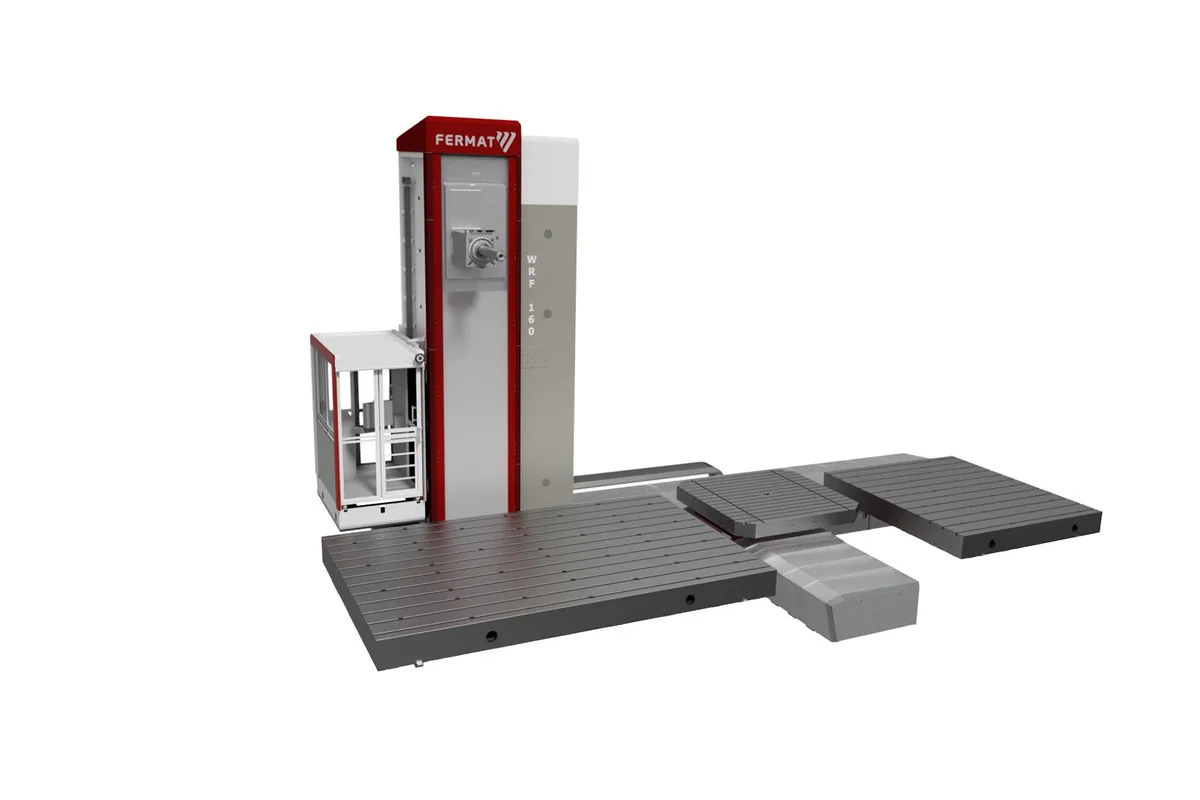

Image: fermatmachinery.com, Fermat

Key Specifications

Max Spindle

3,400 rpm (opt. 4,000 rpm)

Spindle Taper

SK 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100

spindle diameter

130 mm (5.1 in)

spindle power heidenhain siemens

S1/S6: 41/61.5 kW (55.0/82.5 hp); 53/77.9 kW (71.1/104.5 hp)

spindle torque heidenhain siemens

S1/S6: 2,099/3,149 Nm (1,548/2,323 lb-ft); 2,713/3,989 Nm (2,001/2,942 lb-ft)

spindle power fanuc

S1/S3: 37/45 kW (49.6/60.3 hp); 53/77.9 kW (71.1/104.5 hp)

How much does the Fermat WRF 130 cost?

Price estimate

Uncertain

We do not have a price for the Fermat WRF 130 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Fermat WRF 130 opens Fermat's large floor-type series. It pairs a 130 mm (5.1 in) boring spindle with a ram that strokes 1,000 mm (39.4 in), or 1,200 mm (47.2 in) as an option, on a column that can travel 4,000 - 27,500 mm (157.5 - 1,082.7 in) along the bed.

Height is the first thing that separates it from the lighter floor-type model below it. Headstock travel in Y starts at 2,500 mm (98.4 in) and is offered in eight lengths up to 6,000 mm (236.2 in), so tall weldments, press frames and large casings can be machined top to bottom in one setup. Fermat equips the series with an operator's cabin that travels both horizontally and vertically, which is what makes work at that height practical to watch.

Of the three WRF sizes this one has the fastest spindle, 3,400 rpm with 4,000 rpm optional, and the smallest motors: 41/61.5 kW or 53/77.9 kW (S1/S6) with a Heidenhain or Siemens control. Torque is 2,099/3,149 Nm or 2,713/3,989 Nm. The WRF 150 moves to 58/86 kW and a 1,200 mm (47.2 in) standard ram.

Spindle travel in W is 800 mm (31.5 in). Rapid feed is 20,000 mm/min (787.4 ipm) in X, 15,000 mm/min (590.6 ipm) in Y and 10,000 mm/min (393.7 ipm) in Z and W. Rotary tables are optional accessories, listed from the T20 at 20,000 kg (44,092 lb) to the T100 at 100,000 kg (220,459 lb). A tilting headstock is also optional.

Full Specifications

Parameter	Value
Spindle Diameter	130 mm (5.1 in)
Spindle Taper	SK 50 (DIN, MAS 45°, ANSI) / BIG+ / HSK100
Max Spindle Speed	3,400 rpm (opt. 4,000 rpm)
Spindle Power Heidenhain Siemens	S1/S6: 41/61.5 kW (55.0/82.5 hp); 53/77.9 kW (71.1/104.5 hp)
Spindle Torque Heidenhain Siemens	S1/S6: 2,099/3,149 Nm (1,548/2,323 lb-ft); 2,713/3,989 Nm (2,001/2,942 lb-ft)
Spindle Power Fanuc	S1/S3: 37/45 kW (49.6/60.3 hp); 53/77.9 kW (71.1/104.5 hp)
Spindle Torque Fanuc	S1/S3: 2,362/2,873 Nm (1,742/2,119 lb-ft); 2,713/3,989 Nm (2,001/2,942 lb-ft)
X Axis Travel	4,000 - 27,500 mm (157.5 - 1,082.7 in)
Y Axis Travel	2,500 / 3,000 / 3,500 / 4,000 / 4,500 / 5,000 / 5,500 / 6,000 mm (98.4 / 118.1 / 137.8 / 157.5 / 177.2 / 196.9 / 216.5 / 236.2 in)
Z Axis Travel	1,000 mm (39.4 in), opt. 1,200 mm (47.2 in)
W Axis Travel	800 mm (31.5 in)
Rapid Traverse Xy	20,000, 15,000 mm/min (787.4, 590.6 ipm)
Rapid Traverse Zw	10,000, 10,000 mm/min (393.7, 393.7 ipm)
Optional Rotary Table Max Load	T20 - 20,000 kg (44,092 lb) / T25 - 25,000 kg (55,115 lb) / T50 - 50,000 kg (110,229 lb) / T60 - 60,000 kg (132,275 lb) / T80 - 80,000 kg (176,367 lb) / T100 - 100,000 kg (220,459 lb)

Specifications sourced from fermatmachinery.com — verified 2026-10-05

Strengths & Limitations

Strengths

Y travel from 2,500 mm (98.4 in) to 6,000 mm (236.2 in) in eight lengths
X travel of 4,000 - 27,500 mm (157.5 - 1,082.7 in)
Highest spindle speed of the WRF sizes: 3,400 rpm, 4,000 rpm optional
1,000 mm (39.4 in) ram plus 800 mm (31.5 in) of spindle travel, with a 1,200 mm (47.2 in) ram optional
Optional rotary tables from 20,000 kg (44,092 lb) to 100,000 kg (220,459 lb)
Travelling operator's cabin and optional tilting headstock

Limitations

Smallest motors of the WRF line at 41/61.5 kW or 53/77.9 kW; the WRF 150 offers 58/86 kW or 74/109 kW
Spindle travel is 800 mm (31.5 in), the shortest W axis of the series
Z and W rapid feed is 10,000 mm/min (393.7 ipm), half the X figure
Rotary tables and floor plates are separate items to specify

Best For

Tall weldments and frames needing up to 6,000 mm (236.2 in) of Y Long parts along a bed of up to 27,500 mm (1,082.7 in) Mixed boring and milling where spindle speed matters more than torque Heavy parts on optional rotary tables up to 100,000 kg (220,459 lb)

Frequently Asked Questions

01 How does the WRF 130 differ from the WRF 150?

The WRF 150 has a 150 mm (5.9 in) spindle at 2,800 rpm, motors of 58/86 kW or 74/109 kW with Heidenhain or Siemens, a 1,200 mm (47.2 in) ram and 1,000 mm (39.4 in) of spindle travel. The WRF 130 has a 130 mm (5.1 in) spindle at 3,400 rpm, 41/61.5 kW or 53/77.9 kW, a 1,000 mm (39.4 in) ram and 800 mm (31.5 in) of spindle travel. X, Y and the rapid feeds are shared.

02 What travels can the WRF 130 be built with?

X is 4,000 - 27,500 mm (157.5 - 1,082.7 in). Y is one of 2,500 / 3,000 / 3,500 / 4,000 / 4,500 / 5,000 / 5,500 / 6,000 mm. The ram travels 1,000 mm (39.4 in) in Z, optionally 1,200 mm (47.2 in), and the spindle 800 mm (31.5 in) in W.

03 What does the Fanuc version of the WRF 130 deliver?

With a Fanuc CNC the table lists 37/45 kW or 53/77.9 kW (S1/S3) and torque of 2,362/2,873 Nm or 2,713/3,989 Nm. With Heidenhain or Siemens the smaller motor is 41/61.5 kW with 2,099/3,149 Nm. The larger motor has the same rating under all three controls.

04 What carries the workpiece on a WRF 130?

Floor plates, rotary tables, or both. Fermat lists rotary tables as an optional accessory with these loads: T20 20,000 kg, T25 25,000 kg, T50 50,000 kg, T60 60,000 kg, T80 80,000 kg and T100 100,000 kg. The accessory list also names a tilting table.
