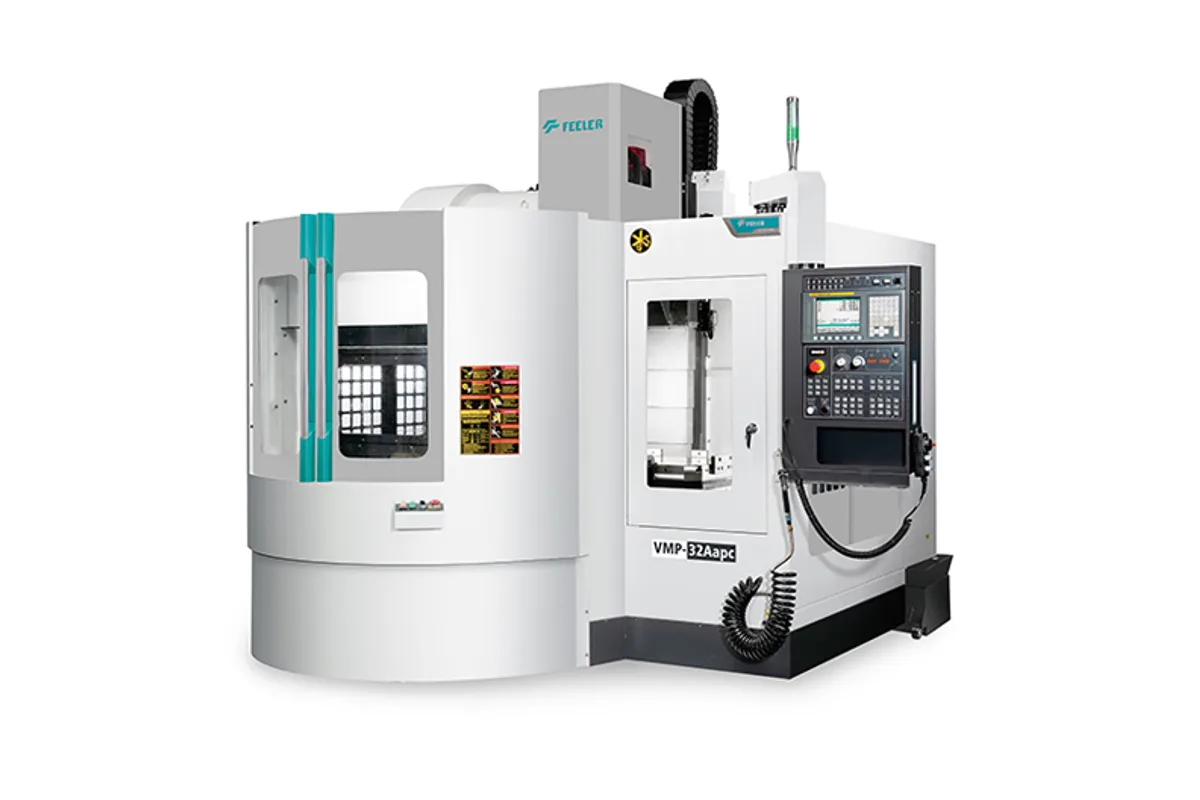

Feeler VMP-32APC
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
x axis travel
y axis travel
How much does the Feeler VMP-32APC cost?
Price estimate
We do not have a price for the Feeler VMP-32APC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
For batch work on mid-sized light parts, Feeler offers the VMP-32APC: the 820 mm class VMP machine with an automatic pallet changer and 700 x 500 mm (27.6 x 19.7 in) pallets. Each pallet takes 200 kg (441 lb).
Unlike many pallet conversions, this one gives nothing away in travel. X is 820 mm (32.3 in), Y is 520 mm (20.5 in) and Z is 505 mm (19.9 in), the same three figures as the fixed-table VMP-32. Both X and Y travel are larger than the pallet, so the tool can run clear of the fixture on every side, useful for edge profiling and for side-entry cutters.
The pallet load is the trade. The VMP-32 table carries 800 kg; here the figure is 200 kg per pallet with the fixture included. That steers the machine toward aluminium and thin-walled parts, die castings and similar work where the part weighs little and clamping takes time.
Spindle speed is 10,000 rpm on a 7/24 No.40 taper, the magazine holds 22 tools, and rapid traverse is 40 m/min (1,575 ipm) in X and Y and 30 m/min (1,181 ipm) in Z. Feeler describes the VMP series as a rigid cast iron design with an A-frame column and names automotive component machining as a main use, which fits a pallet machine of this size well. The series page gives no pallet exchange time.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 820 mm (32.3 in) |
| Y Axis Travel | 520 mm (20.5 in) |
| Z Axis Travel | 505 mm (19.9 in) |
| Table Size | 700 x 500 mm (27.6 x 19.7 in) |
| Max Table Load | 200 kg (441 lb) |
| Max Spindle Speed | 10,000 rpm |
| Spindle Taper | 7/24 Taper No.40 |
| Rapid Traverse X | 40 m/min (1,575 ipm) |
| Rapid Traverse Y | 40 m/min (1,575 ipm) |
| Rapid Traverse Z | 30 m/min (1,181 ipm) |
| Tool Capacity | 22 |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Pallet changer with 700 x 500 mm (27.6 x 19.7 in) pallets
- Full 820 x 520 x 505 mm travels of the fixed-table VMP-32 are kept
- X and Y travel both exceed the pallet size, so tools can clear the fixture edges
- 22 tools and 40 m/min (1,575 ipm) X and Y rapids
Limitations
- 200 kg (441 lb) per pallet, a quarter of the VMP-32 table rating
- Pallet exchange time is not published for this model
- Spindle limited to 10,000 rpm; the VMX-820APC lists 12,000 rpm
- Z rapid of 30 m/min is slower than X and Y
Best For
Frequently Asked Questions
01
Pallets are 700 x 500 mm (27.6 x 19.7 in) and the maximum loading weight is 200 kg (441 lb) each. Fixture weight counts toward that figure.
02
No. Both list 820 mm of X, 520 mm of Y and 505 mm of Z. The difference is the work surface and its rating: a 950 x 520 mm table at 800 kg on the VMP-32, a 700 x 500 mm pallet at 200 kg here.
03
The VMX-820APC has the same travels, pallet size and 200 kg rating, with a 12,000 rpm spindle and 24 tools. The VMP-32APC has a 10,000 rpm spindle and 22 tools. Rapids are 40 m/min on X and Y and 30 m/min on Z for both.
04
A 10,000 rpm spindle with a 7/24 taper No.40. Power and torque do not appear in the series table. Feeler's text calls it a high-speed spindle and pairs it with hardened linear guides and Turcite B wear pads across the series.
