Feeler FT-350(MC)
Image: feeler.com, Feeler
Key Specifications
Max Spindle
Max Turn Length
chuck size
max turning diameter
bar capacity
x axis travel
How much does the Feeler FT-350(MC) cost?
Price estimate
We do not have a price for the Feeler FT-350(MC) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

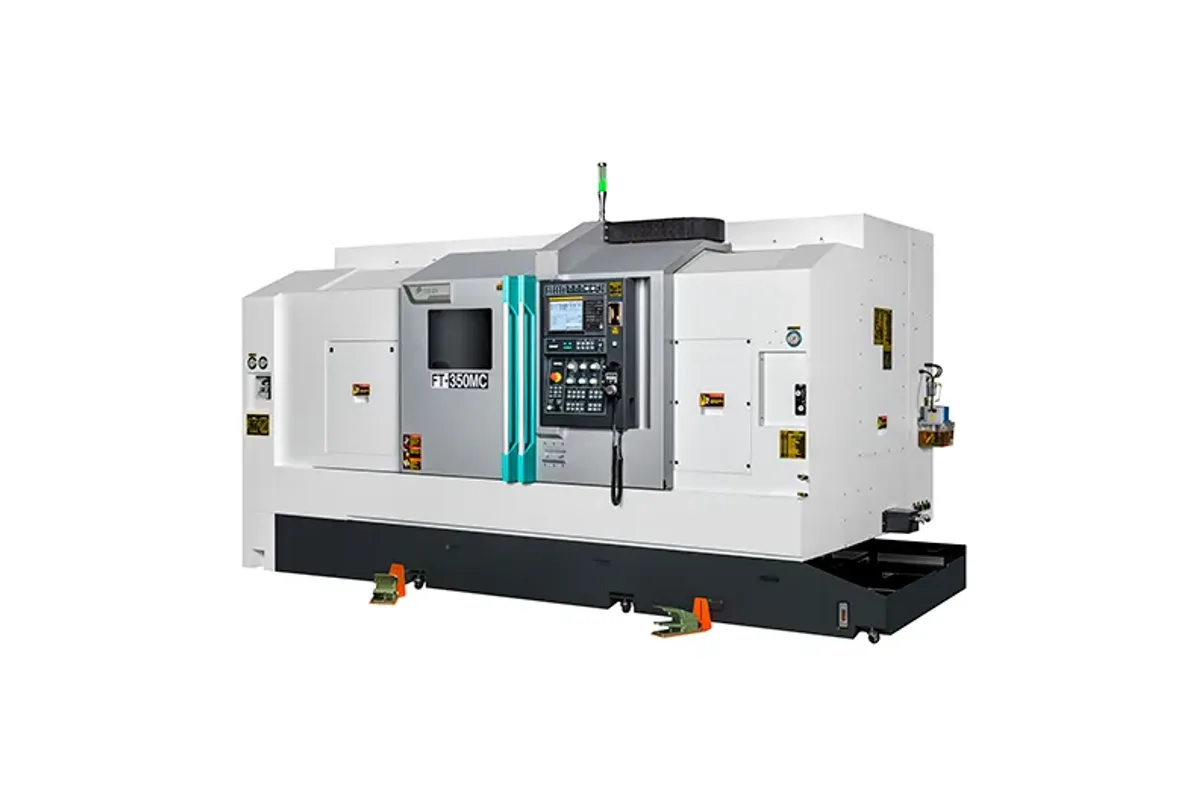

The Feeler FT-350(MC) is a 12 in (305 mm) chuck box way lathe for heavy turning, with a maximum turning diameter of 620 mm (24.4 in) and a turning length of 1,060 mm (41.7 in). Feeler says the FT-350 emphasizes heavy cutting and stability.
The diameter figure is the one that sets it apart from the FT-250(MC), which has nearly the same length. X travel is printed as 310+20 mm, enough to face a large flange or turn a brake-drum sized part, and the bar capacity of 91 mm (3.6 in) through a 102 mm bore handles heavy bar and tube.
The spindle nose is A2-8 and the top speed 3,300 rpm. The maker describes sleeve-type spindles and mentions optional A2-8 or A2-11 spindles; the A2-11 version appears in the table as the separate FT-350AL(MC), with a larger bore and lower speed. The tailstock has an MT-5 taper, and Feeler notes strong Z-axis and tailstock guide supports on an FEA-optimized base. That matters at this size, because a long heavy shaft pushes hard against the tailstock during roughing.
The turret is BMT65-12, and the MC in the name marks the driven-tool version. Operator-side details in the text include a cantilever-style control panel and a fully enclosed electrical cabinet that keeps dust and coolant out. Missing from the page are motor power, torque and rapid rates. For a lathe bought to remove metal quickly, ask for the torque at low speed and whether a gearbox is fitted.
Full Specifications
| Parameter | Value |
|---|---|
| Chuck Size | 12 in (305 mm) |
| Max Turning Diameter | 620 mm (24.4 in) |
| Max Turning Length | 1,060 mm (41.7 in) |
| Bar Capacity | 91 mm (3.6 in) |
| X Axis Travel | 310+20 mm (12.2+0.8 in) |
| Z E Axis Travel | 1,130 mm (44.5 in) |
| Max Spindle Speed | 3,300 rpm |
| Spindle Nose | A2-8 |
| Spindle Bore | 102 mm (4.0 in) |
| Tailstock Taper | MT-5 |
| Turret Stations | BMT65-12 |
Specifications sourced from feeler.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 620 mm (24.4 in) maximum turning diameter
- 91 mm (3.6 in) bar capacity through a 102 mm bore
- MT-5 tailstock with reinforced guide supports, per Feeler
- FEA-optimized base on a 45-degree slant bed
- BMT65-12 turret with a driven-tool MC version
Limitations
- Spindle speed of 3,300 rpm limits small-diameter work
- No Y axis or sub-spindle column for this size
- Motor power, torque and gearing are not published
- No rapid traverse rates in the table
Best For
Frequently Asked Questions
01
A 12 in (305 mm) chuck, 620 mm (24.4 in) maximum turning diameter, 1,060 mm (41.7 in) maximum turning length and 91 mm (3.6 in) of bar work capacity. Z travel is 1,130 mm (44.5 in).
02
The FT-350AL(MC) is longer and has the bigger spindle: 1,520 mm of turning length, an A2-11 nose, a 131 mm bore, 115 mm of bar capacity and 2,000 rpm. The FT-350(MC) has an A2-8 nose, a 102 mm bore and 3,300 rpm.
03
That the FT-350 has a FEA-optimized base and robust Z-axis and tailstock guide supports for motion accuracy, sleeve-type spindles, a cantilever-style control panel and a fully enclosed electrical cabinet.
04
The column heading FT-350(MC) covers a driven-tool MC version, and the turret is listed as BMT65-12 with 12 stations. Driven-tool speed and power are not stated on the series page.
