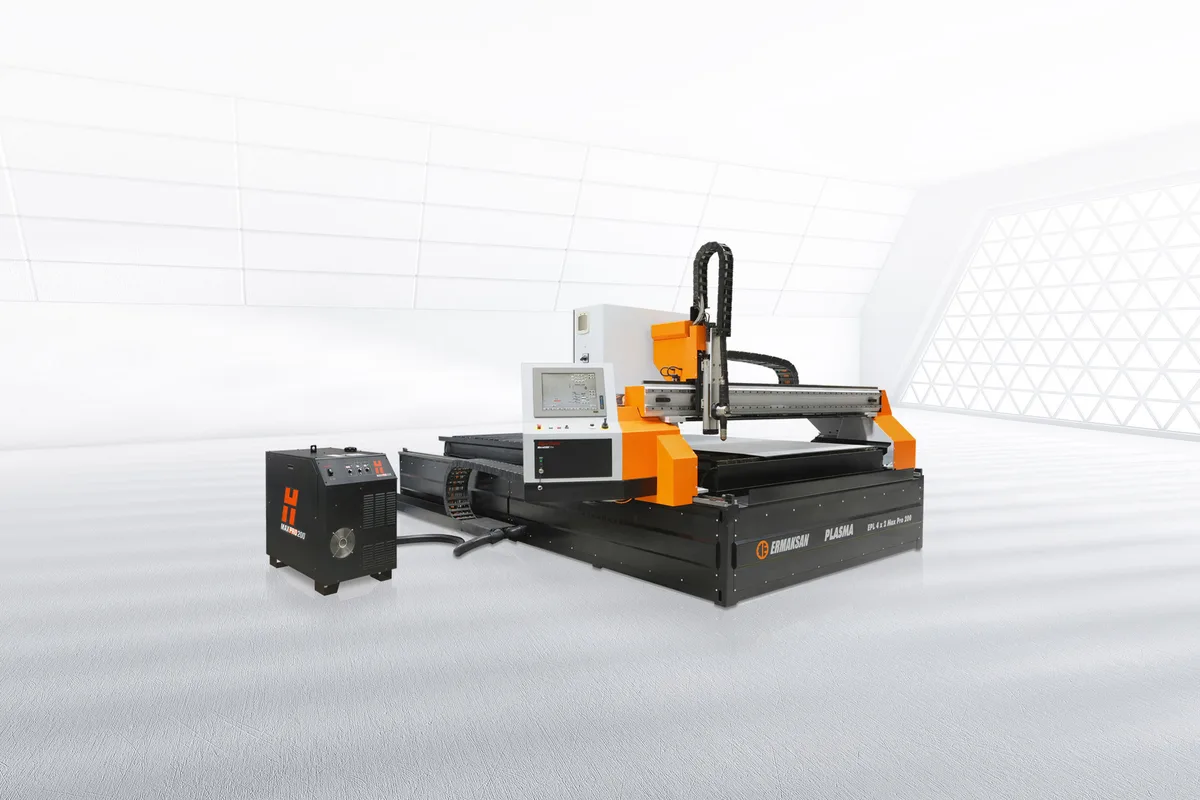

Ermak Smart Plasma 3060
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 3060 cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 3060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Smart Plasma 3060 offers a 3,000 mm (118.1 in) cutting width over 6,000 mm (236.2 in) of length, a bed big enough to hold four of the smallest standard sheets at once.
Multi-sheet loading is how a table like this pays for itself. The operator fills the bed, starts a long program and clears finished parts behind the gantry. A 35 m/min traverse speed keeps the dead time between sheets low.
The figures for the structure are 4,950 mm (194.9 in) of total width and 8,600 kg (18,959 lb). The Smart Plasma 2560 is 7,650 kg, so the wider bridge adds less than a tonne.
Ermak's table lists the Hypertherm Maxpro200 with a cutting capacity of 1 to 50 mm. For lighter work the maker's equipment list offers Powermax units; the Powermax 105 SYNC and Powermax 125 are both shown as options.
Axes are X, Y and Z. The standard controller is a Hypertherm Edge Connect TC with network interfaces and a USB port, and the control panel sits on the bridge. Supply is 400V, 50Hz with 6 Bar air, and the table height is 750 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 3,000 mm (118.1 in) |
| Cutting Length | 6,000 mm (236.2 in) |
| Total Width | 4,950 mm (194.9 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 8,600 kg (18,959 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,000 x 6,000 mm bed holds several sheets at once
- 8,600 kg (18,959 lb) for a three-metre gantry
- 35 m/min traverse cuts dead time between sheets
- Choice of Maxpro and Powermax plasma units
- Network interfaces and USB port on the controller
Limitations
- 4,950 mm (194.9 in) of floor width
- Three axes: bevels need a different series
- Powermax 105 SYNC and Powermax 125 are options
- Length limited to 6,000 mm
Best For
Frequently Asked Questions
01
The cutting width is 3,000 mm (118.1 in) and the cutting length 6,000 mm (236.2 in). The machine's total width is 4,950 mm (194.9 in).
02
The table names the Hypertherm Maxpro200, with a 1 to 50 mm cutting capacity. Ermak's equipment list also shows the Powermax 105 SYNC and Powermax 125 as options.
03
8,600 kg (18,959 lb). The twelve-metre Smart Plasma 30120, built on a gantry of equal width, is listed at 15,000 kg.
04
Ermak states that a network connection can be set up with the controller, and that it can be used to access the machine remotely. A USB port is part of the standard feature as well.
