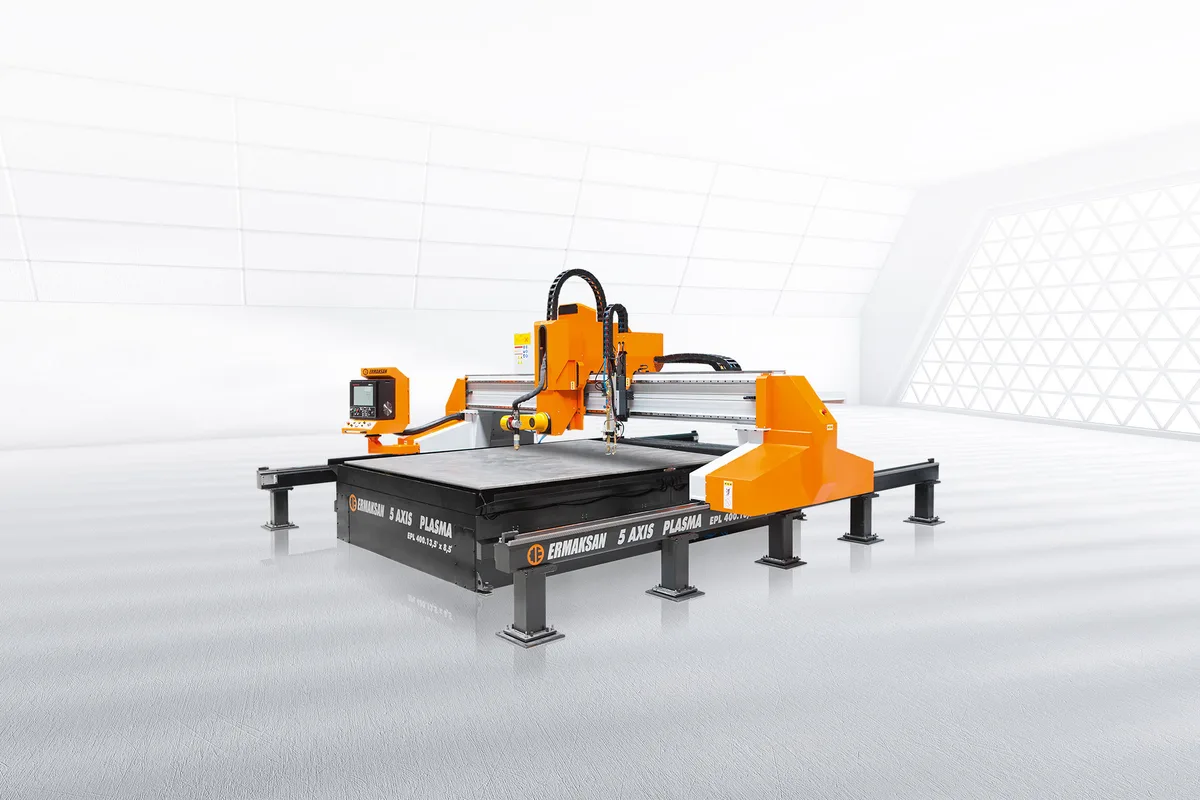

Ermak EPL 3/5 Axis Plasma 1530
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 1530 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 1530 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak EPL 3/5 Axis Plasma 1530 is the smallest gantry in Ermak's high-definition plasma series. It cuts over 1,500 mm (59.1 in) of width and 3,000 mm (118.1 in) of length, the standard small sheet, with a Hypertherm HPR130XD plasma unit.
The axis list in the table reads X, Y, Z, A, B. The two rotary axes belong to the bevel head, which Ermak's page describes as optional 5-axis cutting technology; a machine ordered without it cuts square edges on three axes.
For a 1,500 mm cutting width the gantry is broad. Total width is 4,200 mm (165.4 in), so the cell needs almost three times the sheet width once the rails and bridge ends are counted. Height is 2,280 mm and the table stands 750 mm from the floor.
Cutting capacity is listed as 1 to 38 mm, and traverse speed as 20 m/min. Position repeatability is ±0.05 mm to DIN 28206.
At 5,150 kg (11,354 lb) this is a machine that a modest floor slab can take. Ermak lists a compact table, which joins the cutting table to the machine body, as the standard arrangement for small models. Supply is 400V, 50Hz and 6 Bar air.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 1,500 mm (59.1 in) |
| Cutting Length | 3,000 mm (118.1 in) |
| Total Width | 4,200 mm (165.4 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 5,150 kg (11,354 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- Bevel-capable axis layout (X, Y, Z, A, B) in the smallest table size
- Hypertherm HPR130XD unit with a 1 to 38 mm cutting capacity
- 5,150 kg (11,354 lb), the lightest machine of the series
- Ermak THC torch height control is standard
- Compact table design listed as standard for small models
Limitations
- Cutting area ends at 1,500 x 3,000 mm
- 4,200 mm total width for a 1,500 mm cutting width
- 20 m/min traverse speed, the series figure
- The 5-axis cutting head and the filtering unit are options
Best For
Frequently Asked Questions
01
Cutting width is 1,500 mm (59.1 in) and cutting length 3,000 mm (118.1 in). The table height is 750 mm and the listed cutting capacity is 1 to 38 mm.
02
The table lists the axes as X, Y, Z, A, B, but Ermak's equipment list marks the 5-axis cutting head as optional. Confirm with the maker whether a quoted machine has three or five axes.
03
The specification table names the Hypertherm HPR130XD. Ermak also lists the XPR170, XPR300 and HPR400 XD power units as options for the series.
04
The gantry is 4,200 mm (165.4 in) wide and 2,280 mm (89.8 in) high, and the machine weighs 5,150 kg (11,354 lb). It needs a 400V, 50Hz supply and 6 Bar air.
