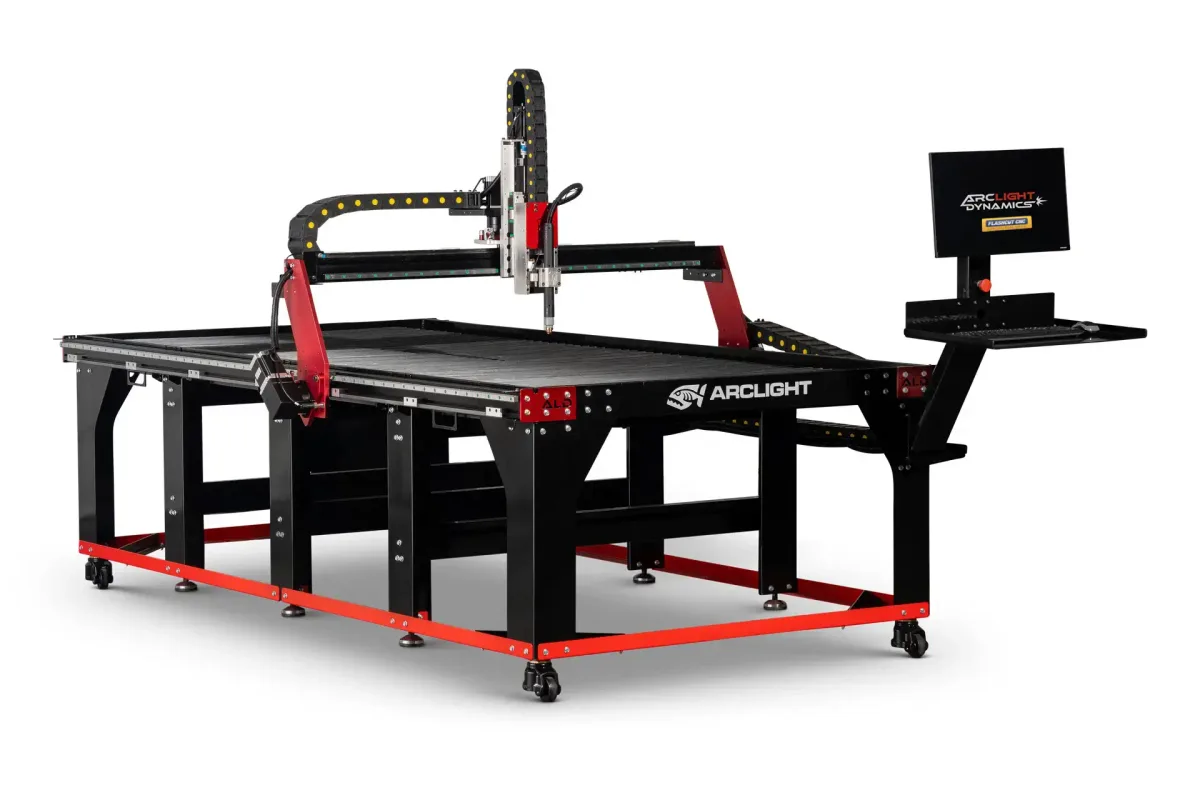

Arclight Dynamics Arc Pro Elite V3 4x8

Full 4 x 8 sheets load directly onto the Arclight Dynamics Arc Pro Elite V3 4x8, whose cutting envelope is 54 x 109 in with 9 in of Z. It is the Arc Pro platform fitted with the Flashcut CNC control package. The envelope is longer than the sheet by about a foot, which leaves room to clamp, to start off the edge, or to cut a remnant beside it.

Mechanically the Arc Pro Elite V3 is the Arc Pro table: a welded steel frame, a dual-drive gantry on machined aluminum risers, NEMA 34 motors with planetary gear boxes, and Hiwin 20 mm precision linear guide rails. Z runs on a ball screw. Arclight lists positioning accuracy as 0.001 in and rates the table for 1.5 in mild steel. Leveling rollers are standard, and the wiring is enclosed. None of that differs from the Ultra version of the same size; what the Elite name buys is the control.

The base is 61 x 121 in and overall dimensions are listed as 81 x 162 in and 74 in tall. At 1,100 lb the table still moves on its rollers when the pan is empty; filled, the pan holds 109.1 gallons. Sheet handling decides the layout more than the table does, because a 4 x 8 sheet has to come in flat from one side.

What sets this table apart is Flashcut CNC, which combines drawing, toolpath generation and machine control. A shop that receives customer DXF files gets the most from it: the fix tool repairs open or doubled geometry, and true shape nesting places parts from several files over one or more sheets. Images can be traced into outline or centerline toolpaths. Torch height control with dynamic voltage sampling is included, and the plasma cutter is a separate selection.
