Koike Aronson Plate Pro

Specs verified 2026-10-05 · koike.com Updated 2026-10-05

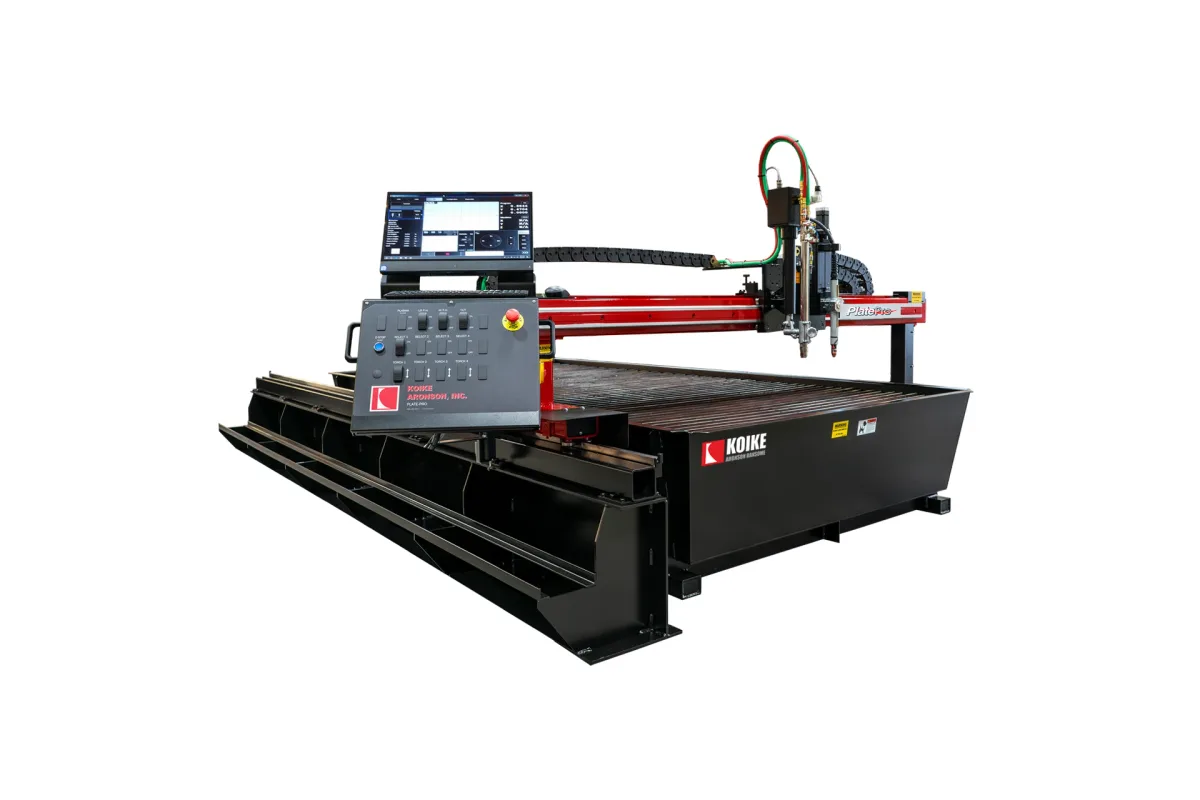

Image: koike.com, Koike Aronson

Key Specifications

Rapid Traverse

800 ipm (20.3 m/min)

effective cutting width

PLP1500: 60 in (1,524 mm); PLP2000: 72 in (1,829 mm); PLP2500: 96 in (2,438 mm)

cutting length

10 ft, 12 ft, 20 ft and 24 ft (3.0 m, 3.7 m, 6.1 m and 7.3 m)

total machine width

PLP1500: 133 in (3,378 mm); PLP2000: 145 in (3,683 mm); PLP2500: 169 in (4,293 mm)

machine rail gauge

PLP1500: 87 1/2 in (2,223 mm); PLP2000: 99 1/2 in (2,527 mm); PLP2500: 123 1/2 in (3,137 mm)

width between rail supports

PLP1500: 77 1/2 in (1,969 mm); PLP2000: 89 1/2 in (2,273 mm); PLP2500: 113 1/2 in (2,883 mm)

How much does the Koike Aronson Plate Pro cost?

Price estimate

Uncertain

We do not have a price for the Koike Aronson Plate Pro that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Koike Aronson Plate Pro is a pedestal-rail CNC plasma and oxy-fuel machine for plate shops with limited space, built as the PLP1500, PLP2000 and PLP2500. Effective cutting width is 60 in (1,524 mm), 72 in (1,829 mm) or 96 in (2,438 mm), and cutting length is 10 ft, 12 ft, 20 ft or 24 ft. Koike lists a table capacity of 6 in (152 mm) and plasma systems from 45 to 200 amp.

This is the lightest of Koike's rail machines in its motion package. The drive is stepper, the cross axis runs on a replaceable linear roundway, and rapid traverse is 800 ipm (20.3 m/min) with a maximum contour speed of 400 ipm (10.2 m/min). The rail sits on a pedestal weldment at the side of the table instead of on the floor, which is what keeps the footprint small: total machine width is 133 in (3,378 mm) on the PLP1500 and 169 in (4,293 mm) on the PLP2500.

Up to 4 tools can be carried, with a maximum of 2 slave stations and 2 plasma or marker stations. The oxy-fuel stations use a motorized lifter with a 6-inch (150 mm) stroke, and the Hi-Lo gas system is rated for a maximum of 4 in (100 mm) thick material with 3 torches. Heavier plate is therefore a one-torch job.

The standard control is a FlashCut CNC 21 in panel PC and the machine voltage is 115/1/60. The optional manual plasma bevel station bevels in the rail axis only. Water and downdraft tables are both offered; the brochure notes that the cutting table shown is optional.

Full Specifications

Parameter	Value
Effective Cutting Width	PLP1500: 60 in (1,524 mm); PLP2000: 72 in (1,829 mm); PLP2500: 96 in (2,438 mm)
Cutting Length	10 ft, 12 ft, 20 ft and 24 ft (3.0 m, 3.7 m, 6.1 m and 7.3 m)
Total Machine Width	PLP1500: 133 in (3,378 mm); PLP2000: 145 in (3,683 mm); PLP2500: 169 in (4,293 mm)
Machine Rail Gauge	PLP1500: 87 1/2 in (2,223 mm); PLP2000: 99 1/2 in (2,527 mm); PLP2500: 123 1/2 in (3,137 mm)
Width Between Rail Supports	PLP1500: 77 1/2 in (1,969 mm); PLP2000: 89 1/2 in (2,273 mm); PLP2500: 113 1/2 in (2,883 mm)
Table Height	30 in (762 mm)
Table Width	PLP1500: 64 in (1,626 mm); PLP2000: 76 in (1,930 mm); PLP2500: 100 in (2,540 mm)
Distance Heat Shield to Floor	36 3/8 in (924 mm)
Table Capacity	6 in (152 mm)
Rapid Traverse Rate	800 ipm (20.3 m/min)
Contour Speed Max	400 ipm (10.2 m/min)
CNC Control	FlashCut CNC 21 in panel PC (standard)
Drive System	Stepper
Max Slave Stations	2
Max Plasma or Marker Stations	2
Number of Tools	Up to 4
Plasma Systems	45-200 amp plasma systems
Oxy Fuel Gas System	Hi-Lo/Basic
Oxy Fuel Capacity	Maximum 4 in (100 mm) thick material with 3 torches (Hi-Lo oxy-fuel gas system)
Power Requirement	115/1/60

Specifications sourced from koike.com — verified 2026-10-05

Strengths & Limitations

Strengths

Up to 4 tools, with as many as 2 plasma or marker stations
Table capacity of 6 in (152 mm) with oxy-fuel, and 45-200 amp plasma systems
Pedestal-mounted rail keeps total machine width to 133 in (3,378 mm) on the PLP1500
Cutting lengths of 10 ft, 12 ft, 20 ft and 24 ft on three widths
Machine voltage is 115/1/60

Limitations

Stepper drive with 800 ipm (20.3 m/min) rapid traverse and 400 ipm (10.2 m/min) maximum contour speed
Multi-torch oxy-fuel is limited to 4 in (100 mm) thick material with 3 torches
Plasma bevel is manual and works in the rail axis only
Widest model is the PLP2500 at 96 in (2,438 mm) of effective cutting width

Best For

Plate shops with limited floor space Mixed plasma and oxy-fuel cutting of plate up to 6 in Multi-torch oxy-fuel strip cutting on plate up to 4 in Shops that want a rail machine on single-phase machine power

Frequently Asked Questions

01 What sizes is the Plate Pro available in?

Three widths and four lengths. The PLP1500 has 60 in (1,524 mm) of effective cutting width, the PLP2000 72 in (1,829 mm) and the PLP2500 96 in (2,438 mm). Each can be ordered with a cutting length of 10 ft, 12 ft, 20 ft or 24 ft. Table height is 30 in (762 mm) on all of them.

02 How many torches can the Plate Pro carry?

The table lists up to 4 tools, with a maximum of 2 slave stations and a maximum of 2 plasma or marker stations. The brochure describes up to three oxy-fuel stations, each on a motorized lifter with a 6-inch (150 mm) stroke, controlled from the operator console.

03 How thick can the Plate Pro cut?

Koike gives a table capacity of 6 in (152 mm). With the Hi-Lo oxy-fuel gas system and 3 torches cutting together the maximum is 4 in (100 mm) thick material. Plasma thickness depends on the system chosen from the 45-200 amp range.

04 What control and drives does the Plate Pro use?

The standard machine CNC is a FlashCut CNC 21 in panel PC, and the drive system is stepper. Rapid traverse is 800 ipm (20.3 m/min) and the maximum contour speed is 400 ipm (10.2 m/min). Limit switches on both axes handle over-travel and homing.
