Ermak Smart Plasma 30120

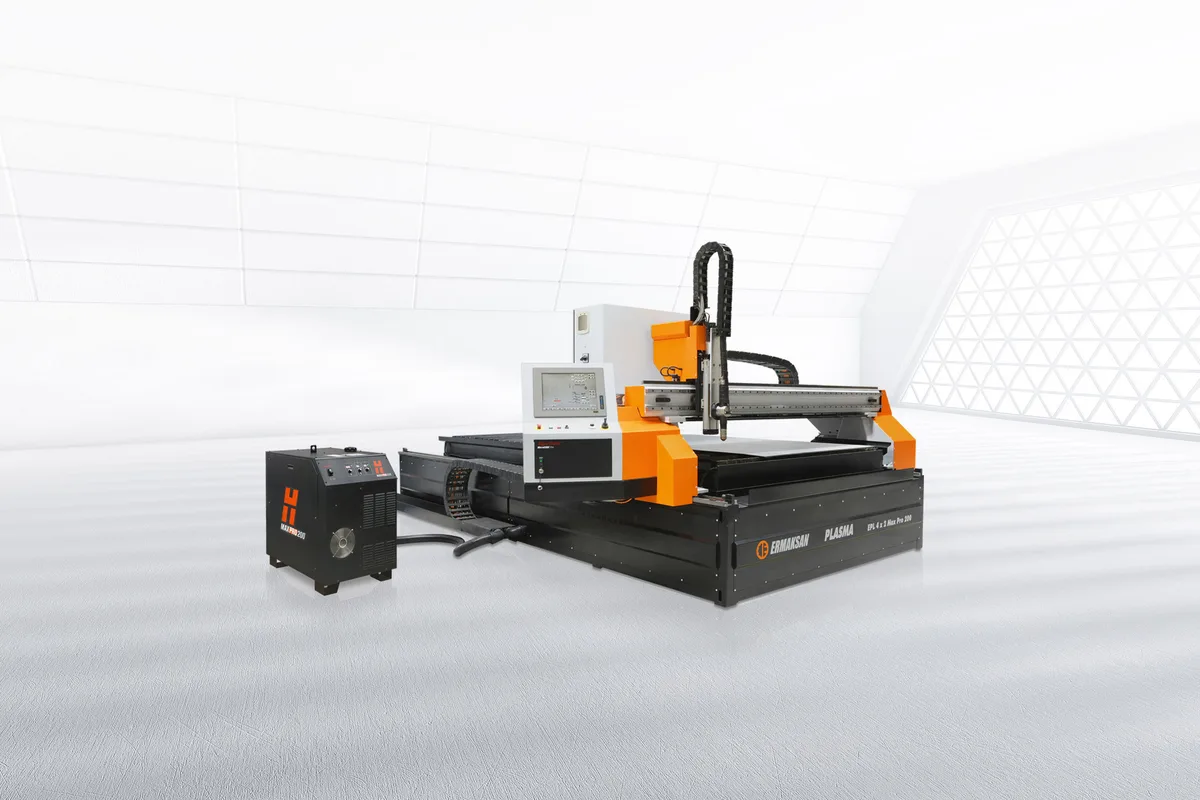

Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 30120 cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 30120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Three metres wide and twelve long, the Ermak Smart Plasma 30120 has a cutting area of 3,000 mm (118.1 in) by 12,000 mm (472.4 in) and weighs a round 15,000 kg (33,069 lb).
It is a volume machine for square-edge plate parts. With that much bed, a shop can dedicate one half to a running job and the other to loading the next, working the two zones alternately all shift. Position repeatability is ±0.05 mm to DIN 28206 wherever on the bed the part lies.
The table lists a traverse speed of 35 m/min, noticeably above the 20 m/min of the EPL 3/5 Axis Plasma 30120, which covers an identical area with bevel axes and weighs 16,900 kg. Total width here is 4,950 mm (194.9 in).
Cutting capacity is 1 to 50 mm with the Hypertherm Maxpro200. An oxy-fuel system is optional, and Ermak notes that ProNest integration lets the two processes be combined in one program.
A bed of this size produces a lot of fume. The filtering unit, which removes smoke and small particles by suction, is on the options list and should be part of the planning from the start.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 3,000 mm (118.1 in) |
| Cutting Length | 12,000 mm (472.4 in) |
| Total Width | 4,950 mm (194.9 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 15,000 kg (33,069 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,000 x 12,000 mm cutting area for two-zone working
- 35 m/min traverse, the figure for the whole Smart Plasma line
- 15,000 kg (33,069 lb) machine weight
- Optional oxy-fuel process integrated through ProNest
- Ermak THC torch height control is standard
Limitations
- No A and B axes for bevel cutting
- Filtering unit is an option on a bed that needs one
- 4,950 mm wide with a rail of more than twelve metres
- Plasma cutting capacity ends at 50 mm
Best For
Frequently Asked Questions
01
A cutting area of 3,000 mm (118.1 in) by 12,000 mm (472.4 in). That is one full-length wide plate, or two six-metre plates worked as separate zones.
02
In traverse, yes. This machine is listed at 35 m/min; the EPL 3/5 Axis Plasma 30120 is listed at 20 m/min. Cutting speed itself depends on the plasma unit and the plate.
03
The oxy-fuel cutting system is an option. Ermak states that advanced ProNest software integration enables a multi-process cutting advantage.
04
15,000 kg (33,069 lb), with a total width of 4,950 mm (194.9 in) and a total height of 2,280 mm (89.8 in). Supply is 400V, 50Hz and 6 Bar air.
