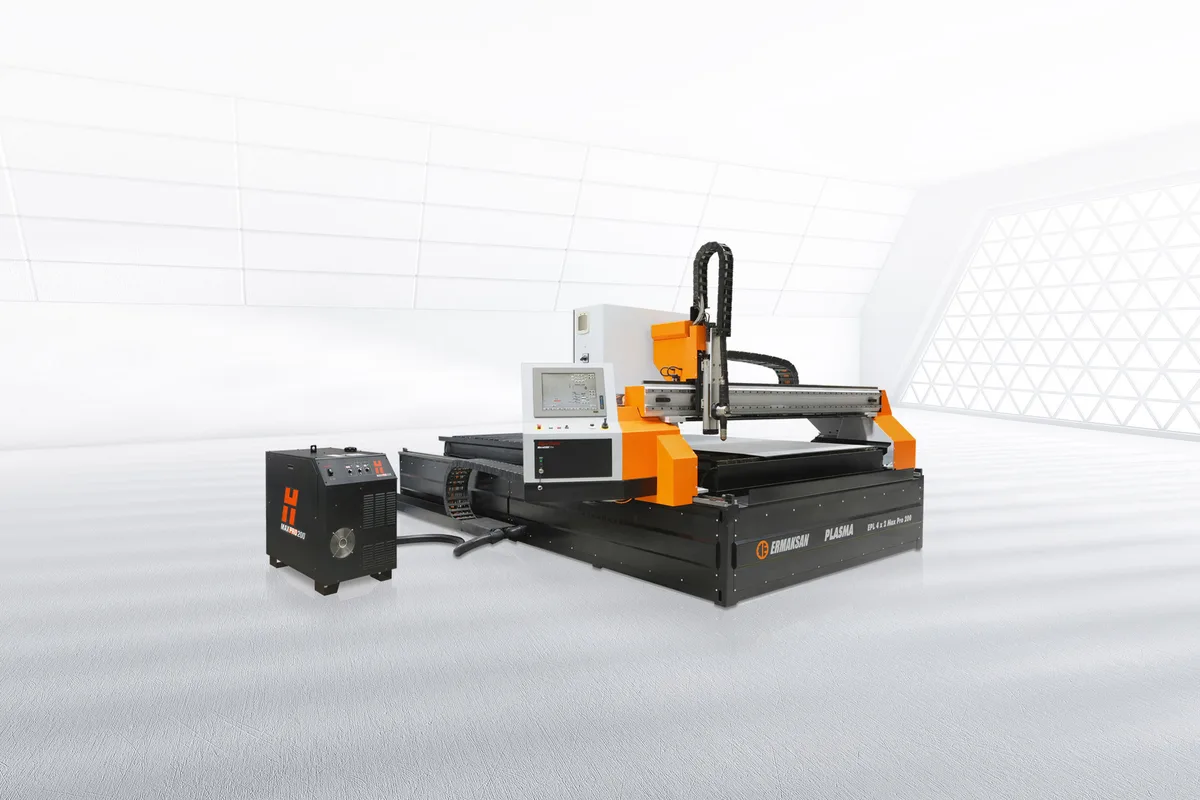

Ermak Smart Plasma 25120
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 25120 cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 25120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Smart Plasma 25120 takes a complete mill plate, 2,500 mm (98.4 in) wide and 12,000 mm (472.4 in) long, on a three-axis gantry.
For square-edge structural work this is often all a steel shop needs. Beams get their end plates, stiffeners and cleats from the plate that arrives on the truck, cut in one setup without splitting it first.
Ermak lists the weight at 14,100 kg (31,085 lb) and the total width at 4,450 mm (175.2 in). The bevel-capable EPL 3/5 Axis Plasma 25120 is 5,200 mm wide and weighs 15,850 kg, so the three-axis machine saves floor width more than mass. Its total height is 2,280 mm.
The table gives 35 m/min of traverse speed, a cutting capacity of 1 to 50 mm with the Hypertherm Maxpro200, and Ermak THC height control.
Marking is worth adding on a bed this size. The optional pneumatic marking pen engraves text or figures on flat surfaces, so part numbers go on before the plate is cut apart. Ermak also lists Design2Fab layout software as an option next to the standard ProNest LT.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,500 mm (98.4 in) |
| Cutting Length | 12,000 mm (472.4 in) |
| Total Width | 4,450 mm (175.2 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 14,100 kg (31,085 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,500 x 12,000 mm cutting area for whole mill plates
- 4,450 mm total width, narrower than the bevel-capable series
- 1 to 50 mm capacity and 35 m/min traverse
- Optional marking pen for part numbers
- ProNest LT is standard; Design2Fab is offered as an option
Limitations
- 14,100 kg (31,085 lb) of machine and a long rail to install
- No bevel head is offered in this line
- Marking pen and Design2Fab software are options
- Table height fixed at 750 mm
Best For
Frequently Asked Questions
01
Yes. The cutting length is 12,000 mm (472.4 in) and the cutting width 2,500 mm (98.4 in). Cutting capacity is listed as 1 to 50 mm.
02
The EPL 3/5 Axis Plasma 25120 has A and B axes, is 5,200 mm wide, weighs 15,850 kg and traverses at 20 m/min. This model has three axes, is 4,450 mm wide, weighs 14,100 kg (31,085 lb) and traverses at 35 m/min.
03
ProNest LT nesting software is standard. Design2Fab, a sheet metal layout package for duct work and similar jobs, is listed as an option.
04
The table lists 400V, 50Hz and 6 Bar air. The machine stands 2,280 mm (89.8 in) high with the table surface at 750 mm (29.5 in).
