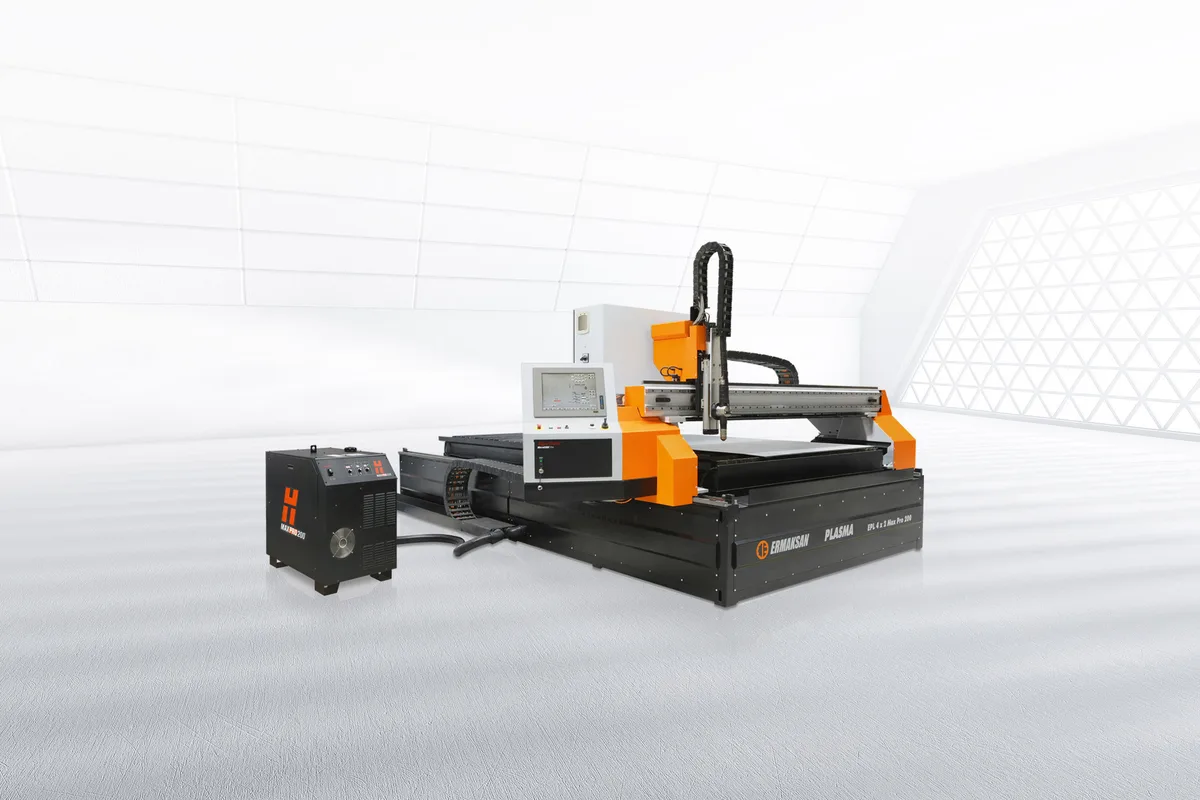

Ermak Smart Plasma 20120
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 20120 cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 20120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Smart Plasma 20120 runs a 2,000 mm (78.7 in) wide gantry along 12,000 mm (472.4 in) of rail. In machine mass and floor width it is the smallest twelve-metre plasma bed Ermak lists: 12,150 kg (26,786 lb) on a total width of 3,950 mm (155.5 in).
Speed helps on a long rail. At 35 m/min the gantry crosses the full cutting length in roughly twenty seconds, so moving between plates at opposite ends of the bed costs little.
The Hypertherm Maxpro200 unit named in the table has a cutting capacity of 1 to 50 mm. Thicker material is the business of the oxy-fuel option, for which Ermak lists the IHT M4000 CAP automatic gap control.
Three axes are listed, X, Y and Z. A buyer who needs bevels along a twelve-metre edge should look at the EPL 3/5 Axis Plasma 20120 instead, which has A and B axes but traverses at 20 m/min and weighs 13,550 kg.
Standard functions include the return feature, which takes the torch back to the last point where cutting stopped, and switching between metric and inch units.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,000 mm (78.7 in) |
| Cutting Length | 12,000 mm (472.4 in) |
| Total Width | 3,950 mm (155.5 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 12,150 kg (26,786 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 12,000 mm cutting length on a gantry only 3,950 mm wide
- 35 m/min traverse makes end-to-end moves quick
- 12,150 kg (26,786 lb) for a twelve-metre bed
- Return feature and unit switching are standard
- Optional oxy-fuel system with IHT M4000 CAP gap control
Limitations
- No bevel axes on any Smart Plasma model
- Cutting width is limited to 2,000 mm
- Oxy-fuel and its gap control are options
- Plasma capacity ends at 50 mm
Best For
Frequently Asked Questions
01
12,000 mm (472.4 in) long and 2,000 mm (78.7 in) wide. The gantry is 3,950 mm (155.5 in) wide in total and 2,280 mm (89.8 in) high.
02
12,150 kg (26,786 lb). The six-metre Smart Plasma 2060, which uses a gantry of equal total width, weighs 6,750 kg.
03
Not with plasma: the table gives 1 to 50 mm for the Hypertherm Maxpro200. Ermak offers an oxy-fuel cutting system as an option, with the IHT M4000 CAP automatic gap control.
04
Within this line, no. The EPL 3/5 Axis Plasma 20120 offers the same 2,000 x 12,000 mm cutting area with A and B axes, at a 20 m/min traverse speed.
