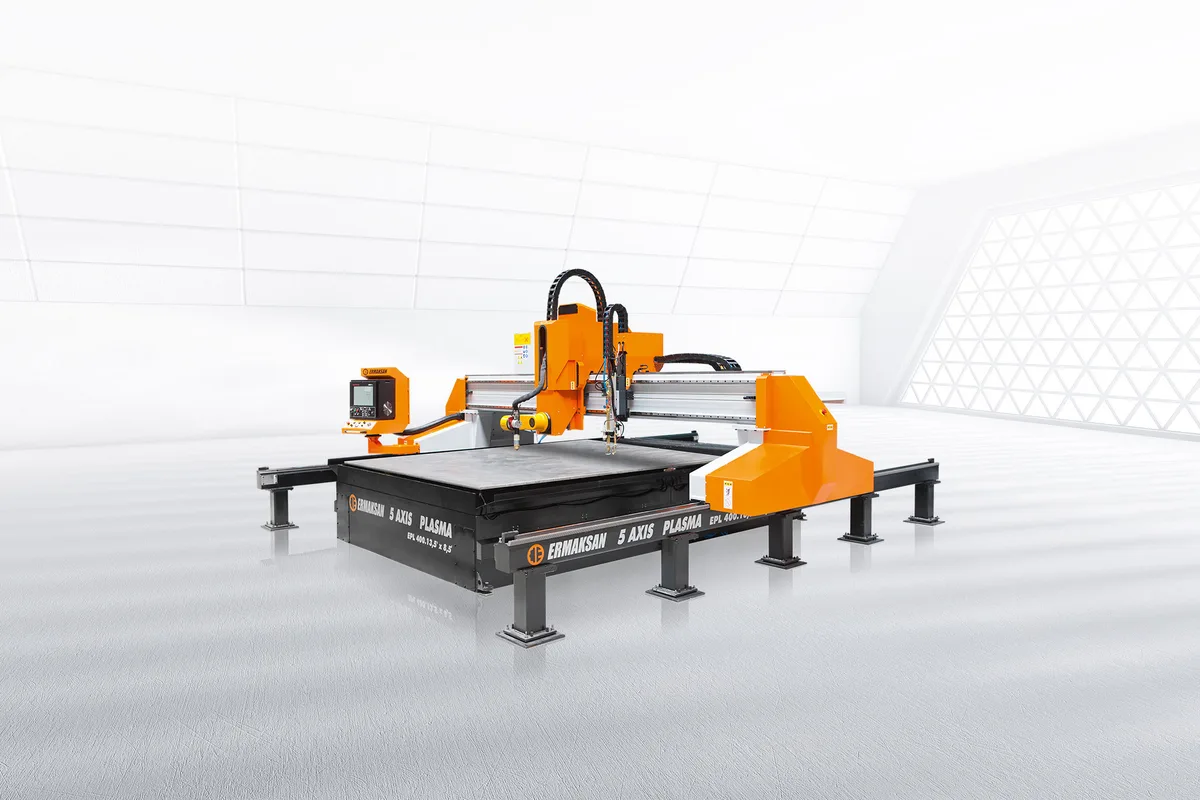

Ermak EPL 3/5 Axis Plasma 30120
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 30120 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 30120 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak EPL 3/5 Axis Plasma 30120 combines the series' three-metre gantry with its long rail, giving a cutting area 3,000 mm (118.1 in) wide and 12,000 mm (472.4 in) long.
In area terms this is a production table. It holds eight sheets of the smallest standard format at once, or two wide plates end to end, so one loading shift can feed the torch for hours. The bottleneck moves from the machine to the crane and the people clearing parts.
The machine weighs 16,900 kg (37,257 lb). Its gantry is 5,700 mm (224.4 in) wide overall, as on the EPL 3/5 Axis Plasma 3060, which shares the bridge and weighs 9,950 kg.
Ermak's table gives the Hypertherm HPR130XD as the plasma unit, with 1 to 38 mm of capacity, and a traverse speed of 20 m/min.
On a table this large the optional equipment list deserves a careful read. The emergency stop cable around the gantry, the light curtain and the cage barrier are all options, as is the electric panel cooler that keeps the control cabinet at a stable temperature.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 3,000 mm (118.1 in) |
| Cutting Length | 12,000 mm (472.4 in) |
| Total Width | 5,700 mm (224.4 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 16,900 kg (37,257 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,000 x 12,000 mm cutting area for multi-sheet production
- Gantry shared with the six-metre model at 5,700 mm total width
- Hypertherm HPR130XD plasma unit and Ermak THC in the table
- Bevel-capable axis layout (X, Y, Z, A, B)
- Optional electric panel cooler for hot workshops
Limitations
- 16,900 kg (37,257 lb) and a rail longer than twelve metres to install
- Emergency stop cable, light curtain and cage barrier are options
- 20 m/min traverse over a 12,000 mm length
- Cutting capacity of 38 mm with the listed source
Best For
Frequently Asked Questions
01
The cutting area is 3,000 mm (118.1 in) by 12,000 mm (472.4 in). That is room for a full-length wide plate or for several smaller sheets laid out along the rail.
02
Ermak lists the light curtain, the cage barrier and the emergency stop cable around the gantry as optional items, so they should be specified with the order for a table of this size.
03
16,900 kg (37,257 lb). The six-metre EPL 3/5 Axis Plasma 3060 weighs 9,950 kg, so the extra rail and table account for most of the difference.
04
The table lists 400V, 50Hz and 6 Bar air. An electric panel cooler for the control cabinet is available as an option.
