Arclight Dynamics Arc Max Unlimited 6x12

Q: How much does the Arclight Dynamics Arc Max Unlimited 6x12 cost?

The price estimate for the Arclight Dynamics Arc Max Unlimited 6x12 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/arclight-dynamics-arc-max-unlimited-6x12#price; the request is passed to Arclight Dynamics or an authorised dealer.

Specs verified 2026-10-05 · arclightcnc.com Updated 2026-10-05

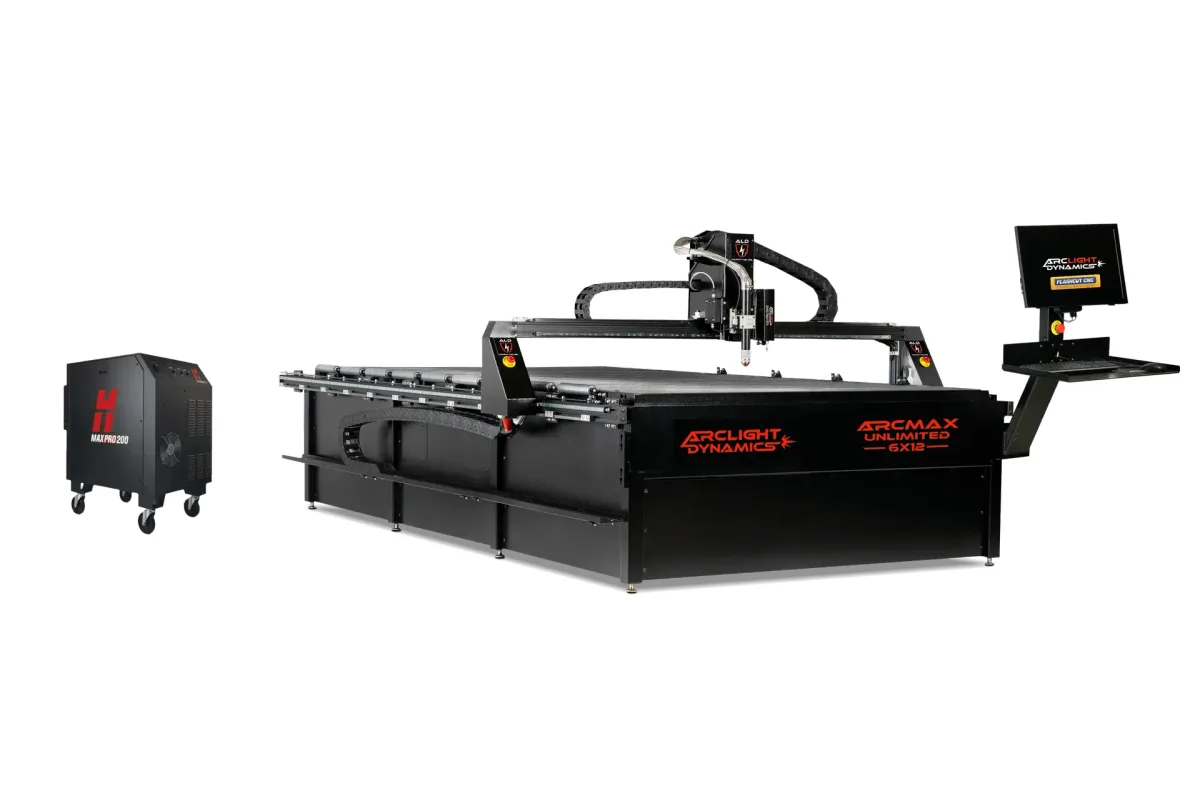

Arclight Dynamics Arc Max Unlimited 6x12 CNC plasma table

Image: arclightcnc.com, Arclight Dynamics

Key Specifications

Accuracy

0.001 in (0.025 mm)

cutting area

73 x 149 x 6.5 in (1,854 x 3,785 x 165 mm)

max plate thickness

3 in (76 mm) mild steel

table load capacity

8,978 lb (4,072 kg)

machine dimensions

100.5 in L x 167 in W x 60 in H (2,553 x 4,242 x 1,524 mm)

base dimensions

82 x 157 in (2,083 x 3,988 mm)

How much does the Arclight Dynamics Arc Max Unlimited 6x12 cost?

Price estimate

Uncertain

We do not have a price for the Arclight Dynamics Arc Max Unlimited 6x12 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Arclight Dynamics Arc Max Unlimited 6x12 is the largest size in its series: a 73 x 149 in cutting envelope with 6.5 in of Z. It is the reinforced Arc Max table built for 3 in plate, with FlashCut CNC as standard. Six feet of width and twelve of length cover oversize plate and long structural parts without re-indexing.

A plate 3 in thick is a load before it is a cut, and the Unlimited is built around that. Legs are gusseted, slats are 4.5 in deep, and Arclight lists 8,978 lb of weight capacity for this size on a reinforced, fully welded frame of 3 x 3 in tubing. The gantry is the low-mass aluminum dual-drive design with 8.5 in of clearance, on Hiwin 20 mm linear guide rails, with NEMA 34 stepper motors rated 940 oz. Positioning accuracy is listed as 0.001 in.

Everything about siting it is large. The water pan holds 420 gallons, the table is listed at 3,500 lb, the base is 82 x 157 in and overall dimensions are 100.5 in L x 167 in W x 60 in H. Plate of this size moves by crane, so the loading side needs hook coverage and the delivery needs a clear, straight path.

FlashCut CNC is standard and handles drawing, nesting and cutting in one program, including true shape nesting across several DXF files and sheets. The table is meant to be paired with a Hypertherm MAXPRO200 or an oxy-fuel torch for heavy plate, and the cutting source is selected separately. Below the 4.5 in slats, the 8 1/2 in deep water pan has an expanded metal barrier for small parts and drains through twin 1.25 in ball valves.

Full Specifications

Parameter	Value
Cutting Area	73 x 149 x 6.5 in (1,854 x 3,785 x 165 mm)
Max Plate Thickness	3 in (76 mm) mild steel
Table Load Capacity	8,978 lb (4,072 kg)
Machine Dimensions	100.5 in L x 167 in W x 60 in H (2,553 x 4,242 x 1,524 mm)
Base Dimensions	82 x 157 in (2,083 x 3,988 mm)
Machine Weight	3,500 lb (1,588 kg)
Water Pan Capacity	420 gallons (1,590 L)
Positioning Accuracy	0.001 in (0.025 mm)
Frame	Reinforced and Fully Welded Steel
Frame Tubing	3 x 3 in (76 x 76 mm) steel tubing, 3/16 in (4.8 mm) wall
Gantry	Low mass aluminum dual-drive gantry
Gantry Clearance	8.5 in (216 mm)
Linear Guides	Hiwin 20 mm precision linear guide rails
Water Pan Depth	8 1/2 in (216 mm), 12g steel
Water Pan Drains	Twin 1.25 in (32 mm) ball valve drains
Slat Depth	4.5 in (114 mm)
Motors	NEMA 34 stepper, 940 oz
CNC Control	Flashcut CNC (integrated CAD/CAM/CNC)
Table Power	110 V / 15-20 A

Specifications sourced from arclightcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

Frame designed for 3 in mild steel plate, with 8,978 lb of listed weight capacity
Gusseted legs and 4.5 in deep slats
FlashCut CNC standard, with integrated CAD/CAM/CNC and true shape nesting
Largest envelope in the series at 73 x 149 in

Limitations

Z in the cutting envelope is 6.5 in, no more than on the lighter Arc Max versions
Stepper motors, not servos, move a table intended for heavy plate
420 gallon water pan and overall dimensions of 100.5 in L x 167 in W x 60 in H
Plate this size needs crane handling

Best For

Oversize plate and long structural parts on 6 x 12 stock High-volume nesting on large plate Heavy plate and structural work up to 3 in mild steel

Frequently Asked Questions

01 How big is the cutting envelope of the Arc Max Unlimited 6x12?

73 x 149 in, with 6.5 in of Z. It is the largest size Arclight lists for this series and takes 6 x 12 plate, which slides on over rollers built into the frame.

02 What control and motors does the Arc Max Unlimited have?

FlashCut CNC, an integrated CAD/CAM/CNC system, is standard. The motors are NEMA 34 steppers rated 940 oz, driving a dual-drive aluminum gantry on Hiwin 20 mm precision linear guide rails. Positioning accuracy is listed as 0.001 in.

03 What does a shop need for the Arc Max Unlimited 6x12?

Floor for a base of 82 x 157 in and overall dimensions of 100.5 in L x 167 in W x 60 in H, a floor that carries 3,500 lb plus 420 gallons of water and the plate, 110 V at 15 to 20 A for the table, and lifting gear for the material.

04 How much plate can the Arc Max Unlimited carry?

Arclight states that the frame is designed to hold up to 3 in mild steel plate across its entire cutting envelope, and lists a weight capacity of 8,978 lb for this size. The legs are gusseted and the slats are 4.5 in deep.
