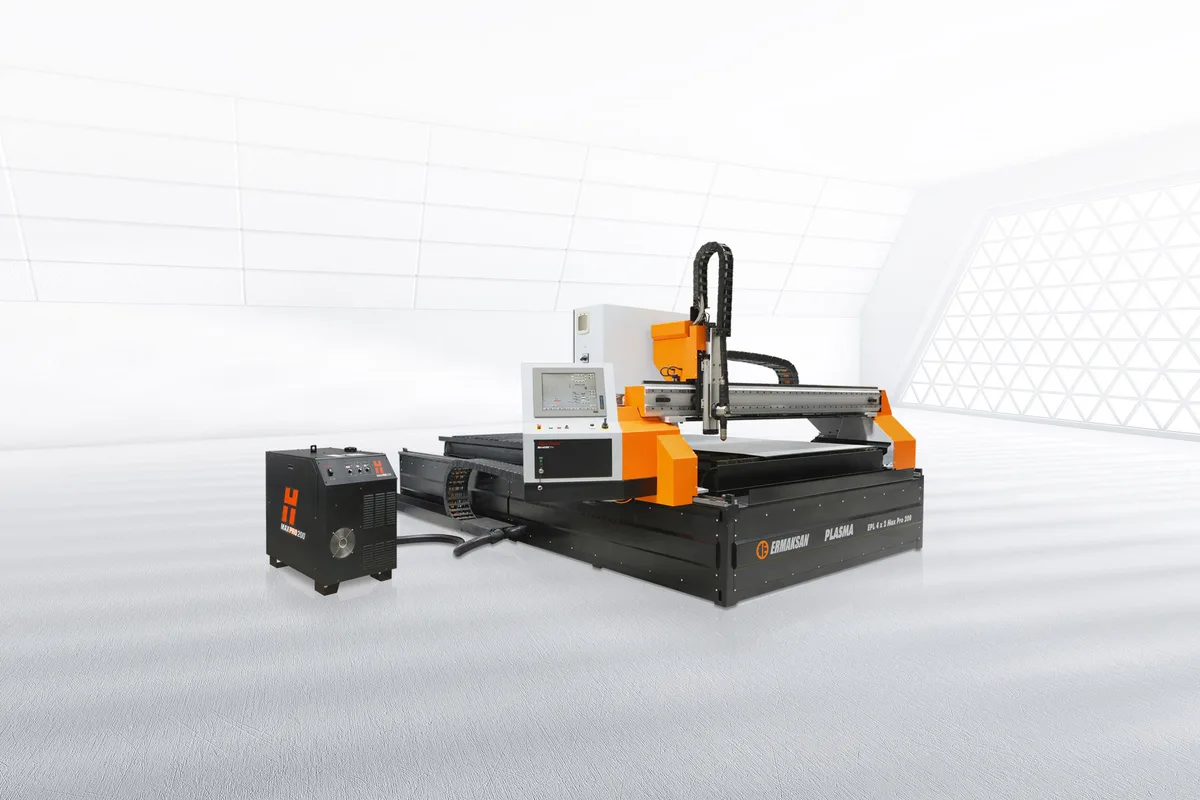

Ermak Smart Plasma 2060
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak Smart Plasma 2060 cost?
Price estimate
We do not have a price for the Ermak Smart Plasma 2060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak Smart Plasma 2060 is the first model of the line without the Compact label. Its cutting area is 2,000 mm (78.7 in) wide and 6,000 mm (236.2 in) long.
The step is visible in the weight. This machine is listed at 6,750 kg (14,881 lb), half as much again as the Smart Plasma 2040 Compact at 4,500 kg, and its total width is 3,950 mm (155.5 in).
Six metres of bed let a shop buy plate in the long format and cut frame members, stringers and long brackets in one piece. The traverse speed of 35 m/min keeps repositioning over that distance short.
Plasma is supplied by the Hypertherm Maxpro200 named in the table, with a cutting capacity of 1 to 50 mm. Ermak describes that unit as built for heavy-duty, high-capacity cutting and gouging. Note that the maker's equipment list marks it as optional, so a quotation should state which power unit is included.
The standard plate alignment function lets a plate be placed roughly on the table and referenced from two corners with the torch or the laser light, which saves crane time on long plate.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,000 mm (78.7 in) |
| Cutting Length | 6,000 mm (236.2 in) |
| Total Width | 3,950 mm (155.5 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 100 mm (3.9 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 35 m/min |
| Machine Axes | X, Y, Z |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm Maxpro200 |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 50 mm (0.04 - 1.97 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 6,750 kg (14,881 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,000 x 6,000 mm cutting area for long-format plate
- 35 m/min traverse over the six-metre bed
- Plate alignment from two corners saves positioning time
- 6,750 kg (14,881 lb), lighter than the bevel-capable series at this size
- Hypertherm Edge Connect TC controller is standard
Limitations
- Heavier and wider than the Compact models
- Equipment list marks the Maxpro200 unit as optional
- Three-axis machine without automatic bevel
- Cutting width stops at 2,000 mm
Best For
Frequently Asked Questions
01
Up to 2,000 mm (78.7 in) wide and 6,000 mm (236.2 in) long, in thicknesses from 1 to 50 mm according to the table. The table surface is 750 mm above the floor.
02
No. The standard plate alignment feature allows a plate placed arbitrarily on the cutting table to be aligned by reference from two corners, using the torch or the laser light.
03
The EPL 3/5 Axis Plasma 2060 weighs 8,150 kg, is 4,700 mm wide and traverses at 20 m/min. This model weighs 6,750 kg (14,881 lb), is 3,950 mm wide and traverses at 35 m/min, but has no bevel axes.
04
The specification table names the Hypertherm Maxpro200, while Ermak's equipment list shows it as optional alongside several Powermax units. Ask the maker which one a given offer contains.
