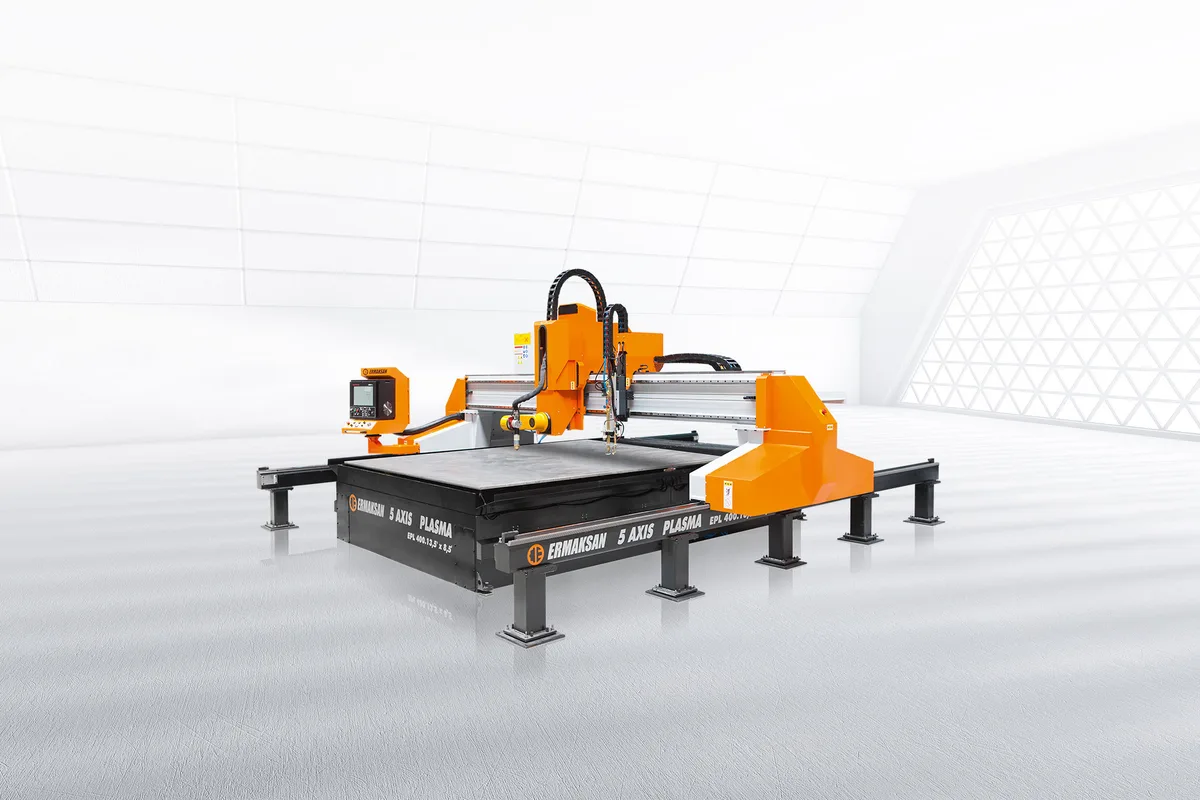

Ermak EPL 3/5 Axis Plasma 2560
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 2560 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 2560 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak EPL 3/5 Axis Plasma 2560 is built for 2,500 mm (98.4 in) wide plate, cut over a length of 6,000 mm (236.2 in). Heavy plate is commonly rolled at that width, so this is the first size in the series that takes it untrimmed.
Widening the two-metre gantry to this size raises the total width to 5,200 mm (204.7 in) and the weight to 9,200 kg (20,282 lb). The EPL 3/5 Axis Plasma 2060, for comparison, weighs 8,150 kg.
With heavy plate comes weld preparation. The A and B axes named in the table serve the 5-axis cutting head, an option that produces vertical and angular cuts with the angle values set automatically. Ermak also lists an oxygen cutting station for the series.
The plasma unit is the Hypertherm HPR130XD, with 1 to 38 mm of capacity. Plate above that range calls for one of the larger optional power units or for oxy-fuel.
Gantry height is 2,280 mm, the table height 750 mm and the traverse speed 20 m/min. The supply is 400V, 50Hz with 6 Bar air, and position repeatability is ±0.05 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,500 mm (98.4 in) |
| Cutting Length | 6,000 mm (236.2 in) |
| Total Width | 5,200 mm (204.7 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 9,200 kg (20,282 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,500 mm cutting width for untrimmed heavy plate
- 6,000 mm cutting length for six-metre plate
- A and B axes for the optional 5-axis bevel head
- Oxygen cutting station listed for the series
- 9,200 kg (20,282 lb) machine weight
Limitations
- Total width grows to 5,200 mm (204.7 in)
- 38 mm capacity with the HPR130XD; thicker plate needs an optional unit
- The bevel head is not standard equipment
- 20 m/min traverse speed on every size
Best For
Frequently Asked Questions
01
The cutting width is 2,500 mm (98.4 in) and the cutting length 6,000 mm (236.2 in). Overall, the gantry is 5,200 mm (204.7 in) wide.
02
The table's capacity of 1 to 38 mm applies to the Hypertherm HPR130XD. Ermak lists the HPR400 XD and XPR power units as options and an oxy-fuel cutting system for thicker work.
03
It weighs 9,200 kg (20,282 lb). The EPL 3/5 Axis Plasma 2060, with the same 6,000 mm length and a 2,000 mm width, weighs 8,150 kg.
04
Ermak describes the optional 5-axis cutting head as calculating all angles automatically during cutting, for vertical and angular cuts. The machine's table lists the axes X, Y, Z, A, B.
More from Ermak
Other CNC Plasma Cutting
Machitech Titanium Cut
ShopSabre SideKick 8
ESAB Plasmarc Precision CNC Plasma System
Voortman V304

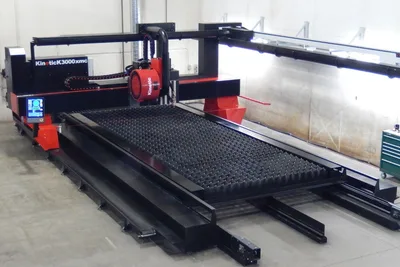

Kinetic K3000
