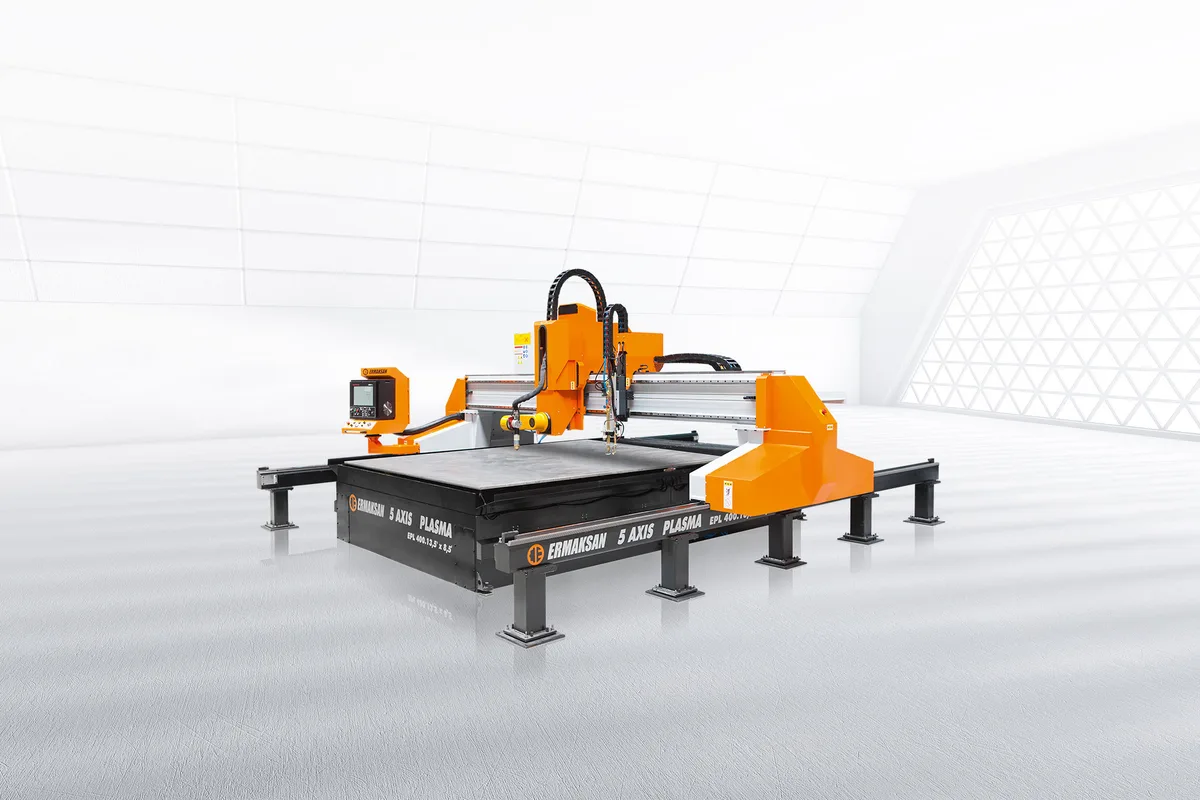

Ermak EPL 3/5 Axis Plasma 3060
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 3060 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 3060 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Three metres of cutting width put the Ermak EPL 3/5 Axis Plasma 3060 in the wide-plate class. Its cutting area is 3,000 mm (118.1 in) by 6,000 mm (236.2 in).
A 3,000 mm table is chosen less for one wide plate than for flexibility. Two small-format sheets lie side by side, large rings and base plates fit without rotation, and nests have more freedom than on a narrower bed.
The weight penalty is small. At 9,950 kg (21,936 lb) the machine is not far above the 9,200 kg of the EPL 3/5 Axis Plasma 2560, though the gantry's total width goes from 5,200 mm to 5,700 mm (224.4 in).
Specification rows that do not depend on size are the Hypertherm HPR130XD plasma unit, the 1 to 38 mm cutting capacity, a traverse speed of 20 m/min and position repeatability of ±0.05 mm. Table height is 750 mm.
The controller is a Hypertherm Edge Connect TC. Ermak states that a network connection can be set up with the controller for remote access to the machine, and that the software switches between metric and inch units.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 3,000 mm (118.1 in) |
| Cutting Length | 6,000 mm (236.2 in) |
| Total Width | 5,700 mm (224.4 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 9,950 kg (21,936 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 3,000 mm cutting width takes two small-format sheets side by side
- 9,950 kg (21,936 lb), under ten tonnes for a three-metre gantry
- 6,000 mm cutting length for six-metre plate
- Network connection for remote access is a standard feature
- Hypertherm HPR130XD with Ermak THC height control
Limitations
- Total gantry width of 5,700 mm (224.4 in)
- Twelve-metre plate needs the longer model
- Traverse speed limited to 20 m/min
- 5-axis cutting head and safety light curtain are options
Best For
Frequently Asked Questions
01
3,000 mm (118.1 in) wide by 6,000 mm (236.2 in) long. The gantry is 5,700 mm (224.4 in) wide overall, 2,280 mm high, and the table is at 750 mm.
02
The EPL 3/5 Axis Plasma 2560 weighs 9,200 kg and has a total width of 5,200 mm. This model weighs 9,950 kg (21,936 lb) and is 5,700 mm wide, for a 3,000 mm cutting width.
03
Yes. Ermak states that a network connection can be set up with the controller and used to access the machine remotely; a USB port is part of the same standard feature.
04
A capacity of 1 to 38 mm with the Hypertherm HPR130XD plasma unit, a 20 m/min traverse speed and ±0.05 mm position repeatability to DIN 28206.
