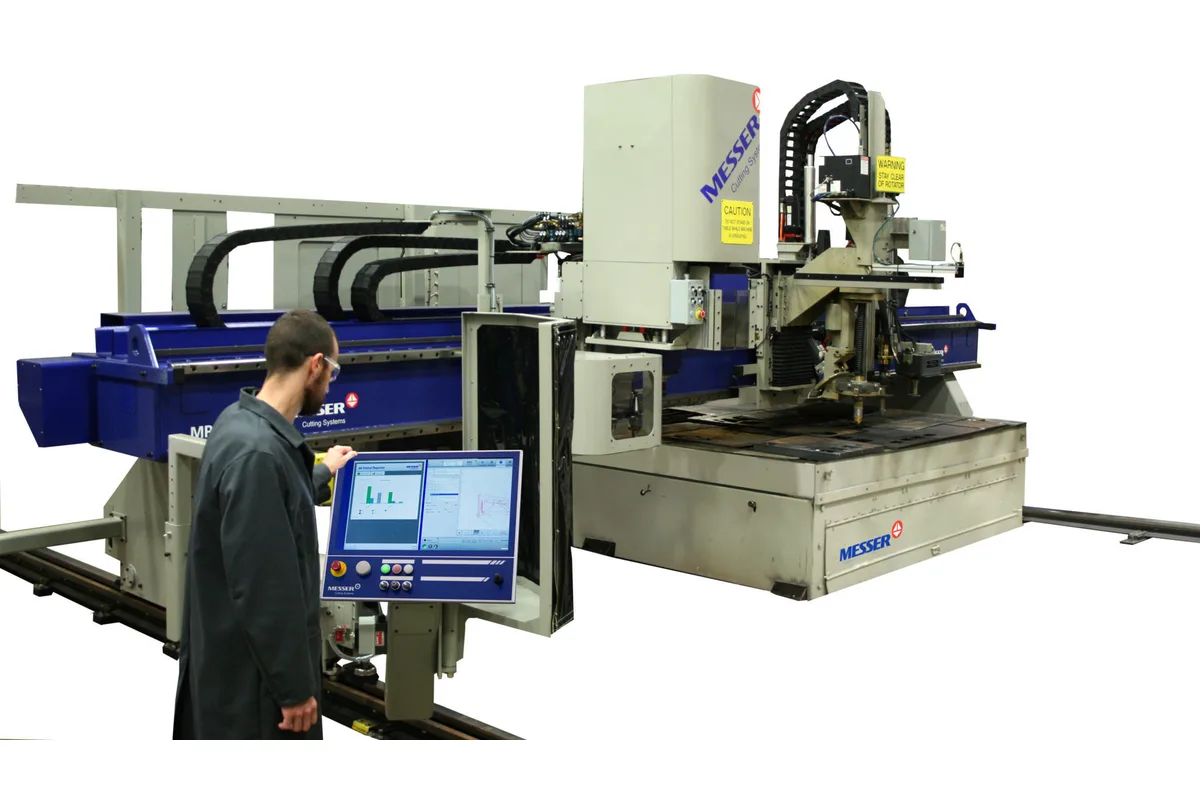

Messer MPC2000

Specs verified 2026-10-05 · us.messer-cutting.com Updated 2026-10-05

Image: us.messer-cutting.com, Messer Cutting Systems

Key Specifications

Accuracy

+/- 0.010 in (0.25 mm) in any 72 in (1,829 mm) move, measured with a laser interferometer

Repeatability

+/- 0.003 in (0.08 mm)

cutting width

8 ft to 28 ft (2.4 m to 8.5 m)

cutting length

Up to 200 ft (61.0 m)

material thickness

26 ga. to 8 in (203 mm) thick plate

materials

Mild steel, stainless steel and aluminum

How much does the Messer MPC2000 cost?

Price estimate

Uncertain

We do not have a price for the Messer MPC2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Messer MPC2000 is a large multi-process gantry for plate up to 28 ft wide. Cutting widths run from 8 ft to 28 ft (2.4 m to 8.5 m), cutting lengths go up to 200 ft (61.0 m), and it cuts 26 ga. to 8 in (203 mm) thick plate. Optional precision plasma goes to 800 amps on up to four straight plasma torches.

The structure is a dual beam: the front process beam, which carries the tools, is separate from the rear utility beam, so that vibration from the services does not reach the cut. The gantry runs on 115 lb/yd machined crane rail with twin 6 hp (4.5 kW) AC drives on the X-axis and one on the Y-axis, and the pinions are held in mesh by an air-over-oil system for zero backlash.

Motion accuracy is +/- 0.010 in (0.25 mm) with repeatability of +/- 0.003 in (0.08 mm) in any 72 in (1,829 mm) move, measured with a laser interferometer. Positioning speed is up to 1,400 ipm (35.6 m/min) with acceleration up to 32 in/sec² (0.81 m/s²), and contouring speed up to 400 ipm (10.2 m/min). The PL-1 plasma lifter travels at 880 ipm (22.4 m/min) and has a programmable retract.

What the base gantry lacks, options supply. Contour bevelers are offered for both plasma and oxyfuel, with K, V, X, Y and I cuts; the Global Infinity rotator cuts edges from +45° through -45°. A drill with a CAT 40 spindle handles drilling up to 2 in (51 mm) in diameter and tapping up to 1 in (25 mm). Shops that need heavier drilling or milling should look at the MPC2000 MC, which has a CAT 50 spindle and a 24 tool changer as standard.

Full Specifications

Parameter	Value
Cutting Width	8 ft to 28 ft (2.4 m to 8.5 m)
Cutting Length	Up to 200 ft (61.0 m)
Material Thickness	26 ga. to 8 in (203 mm) thick plate
Materials	Mild steel, stainless steel and aluminum
Positioning Accuracy	+/- 0.010 in (0.25 mm) in any 72 in (1,829 mm) move, measured with a laser interferometer
Repeatability	+/- 0.003 in (0.08 mm)
Contouring Speed	Up to 400 ipm (10.2 m/min)
Positioning Speed	Up to 1,400 ipm (35.6 m/min)
Acceleration	Up to 32 in/sec² (0.81 m/s²)
Drives	Twin 6 hp (4.5 kW) AC drives for the X-axis and one for the Y-axis
X Axis Rail	115 lb/yd machined crane rail
Plasma Current	Up to 800 amps (optional precision plasma); up to four straight plasma torches
Plasma Lifter	PL-1, 880 ipm (22.4 m/min), arc voltage height control
Bevel Angle	+45° through -45° (optional Global Infinity rotator)
Drilling Capacity	Up to 2 in (51 mm) diameter; tapping up to 1 in (25 mm) diameter (optional, CAT 40 spindle)
CNC Control	Global ControlPlus, Windows based, 24 in touch screen
Standards	Designed and manufactured in the USA to machine tool and ISO 230-2 standards; UL/CUL

Specifications sourced from us.messer-cutting.com — verified 2026-10-05

Strengths & Limitations

Strengths

Cutting widths from 8 ft to 28 ft (2.4 m to 8.5 m) and lengths up to 200 ft (61.0 m)
Repeatability of +/- 0.003 in (0.08 mm) in any 72 in (1,829 mm) move
Dual beam construction isolates the process beam from the utility beam
Optional plasma up to 800 amps with up to four straight plasma torches
Optional CAT 40 drill: drilling to 2 in (51 mm) and tapping to 1 in (25 mm) diameter

Limitations

Drilling is an option and stops at 2 in (51 mm) diameter; the MPC2000 MC drills to 2.5 in (64 mm)
Positioning speed of 1,400 ipm (35.6 m/min) is below the 1,700 ipm (43.2 m/min) of the Titan III
Plate thickness is limited to 8 in (203 mm), where the TMC4500 DB goes to 12 in (305 mm)
Plasma, bevel units, markers and drilling are all optional equipment

Best For

Wide plate, up to 28 ft, in service centers and heavy fabrication Multi-torch plasma with up to four straight torches Contour bevels by plasma or oxyfuel on large parts Occasional drilling and tapping without a dedicated machining gantry

Frequently Asked Questions

01 How large can the MPC2000 be built?

Cutting widths run from 8 ft to 28 ft (2.4 m to 8.5 m) and cutting lengths up to 200 ft (61.0 m). The powertrack can be on the right or left, on the floor or overhead, and the control console mounts on either side. It cuts 26 ga. to 8 in (203 mm) thick plate.

02 How accurate is the MPC2000?

Machine motion accuracy is +/- 0.010 in (0.25 mm) with repeatability of +/- 0.003 in (0.08 mm) in any 72 in (1,829 mm) move, measured with a laser interferometer. The machine is designed and manufactured in the USA to machine tool and ISO 230-2 standards.

03 What drives the MPC2000?

Twin 6 hp (4.5 kW) AC drives on the X-axis and one on the Y-axis, through planetary gearboxes and large diameter pinions with air-over-oil engagement. The X-axis runs on 115 lb/yd machined crane rail and the Y-axis on linear ways. Positioning speed is up to 1,400 ipm (35.6 m/min).

04 Can the MPC2000 drill and tap?

As an option. The drill has a CAT 40 spindle, with a maximum drill diameter of 2 in (51 mm) and a maximum tapping diameter of 1 in (25 mm). For drilling up to 2.5 in (64 mm), milling and a 24 tool rotary changer, Messer builds the MPC2000 MC.

05 What bevel options does the MPC2000 have?

Plasma beveling units include the Infinity and Deltae rotators and a manual stripping bevel unit for the X-axis; the Global Infinity rotator cuts edges of +45° through -45°. Oxyfuel bevel units come as single position, triple position, contour and DAF/L.
