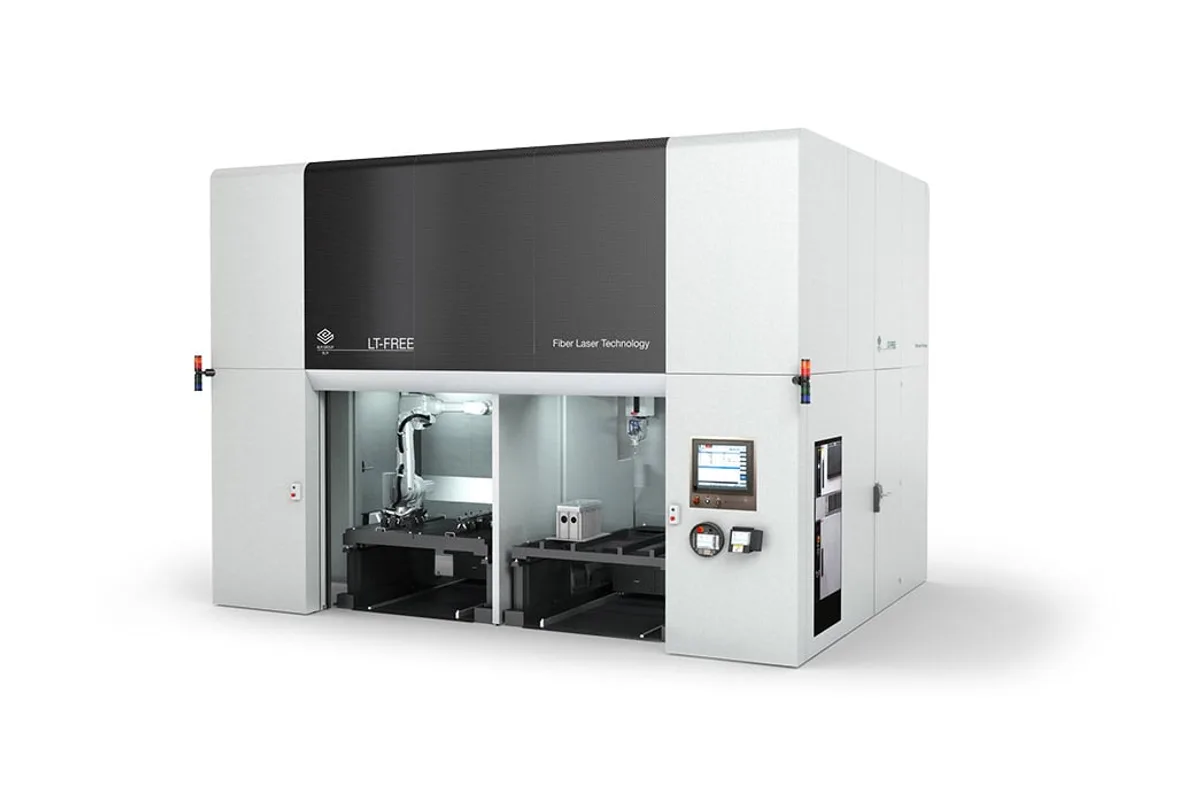

BLM Group LT-FREE

Specs verified 2026-10-05 · blmgroup.com Updated 2026-10-05

Image: blmgroup.com, BLM Group

Key Specifications

Accuracy

±0.002 in (0.05 mm)

Repeatability

±0.002 in (0.05 mm)

laser source

Fiber, 2 kW - 3 kW - 4 kW

cutting head

head axes

handling robot

ABB IRB 2600 20 Kg

How much does the BLM Group LT-FREE cost?

Price estimate

Uncertain

We do not have a price for the BLM Group LT-FREE that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Bent tube, hydroformed sections, extrusions and stamped sheet are the work of the BLM Group LT-FREE, an enclosed 5-axis fiber laser cell for parts that are already three-dimensional when they reach the laser. A CNC head on a 5-axis system does the cutting. A handling robot can present the part, and the fiber source is 2 kW - 3 kW - 4 kW.

This is a different job from a Lasertube's. Machines such as the LT7 cut straight bar before it is bent. The LT-FREE trims, pierces and slots the part afterwards, so hole positions are not shifted by the bending that follows. BLM presents the cell as a replacement for cutting, drilling, punching, milling and deburring, done as separate steps, with the part finished in a single work cycle.

Three configurations share the cutting system. The base cell has a dual fixed working table of 59 x 39 in (1,500 x 1,000 mm). SPLIT CABIN has two cutting zones fed by translating tables, listed as 2 for 118 x 39 in (3,000 x 1,000 mm), so one station is loaded while the head works at the other. TURN TABLE uses 1 rotary table, 118 in (3,000 mm), which suits long parts and larger batches.

Accuracy and repeatability are both ±0.002 in (0.05 mm). When a robot holds the part it can turn it in space between cuts, and BLM points out that this removes manual repositioning and the reconfiguring of fixed jigs. The head is narrow, which matters inside a bent assembly where a wide nozzle body would collide.

Installed power is 60 - 66 kW. The control is PC-based and listed as SIEMENS, with BLM's unified operator interface, and programs are prepared offline in ArGo, where the cycle can be simulated to obtain the cycle time before a part is loaded.

Full Specifications

Parameter	Value
Laser Source	Fiber, 2 kW - 3 kW - 4 kW
Cutting Head	3D
Head Axes	5
Positioning Accuracy	±0.002 in (0.05 mm)
Repeatability	±0.002 in (0.05 mm)
Handling Robot	ABB IRB 2600 20 Kg
Working Table	59 x 39 in (1,500 x 1,000 mm)
Split Cabin Working Tables	2 for 118 x 39 in (3,000 x 1,000 mm)
Turn Table Working Table	1 rotary table, 118 in (3,000 mm)
Enclosure	Class C1
Installed Power	60 - 66 kW
CNC Control	PC-based, SIEMENS
Operator Interface	Unified BLM GROUP interface

Specifications sourced from blmgroup.com — verified 2026-10-05

Strengths & Limitations

Strengths

5-axis CNC cutting head that reaches bent, hydroformed, extruded and stamped parts
Three configurations: fixed tables, SPLIT CABIN with 2 cutting stations, or TURN TABLE with a rotary table
Accuracy and repeatability of ±0.002 in (0.05 mm)
Handling robot repositions the part, so fixed jigs need not be reconfigured
Fiber source of 2 kW - 3 kW - 4 kW
Offline programming and cycle simulation in ArGo

Limitations

The base working table is 59 x 39 in (1,500 x 1,000 mm); longer parts need the SPLIT CABIN or TURN TABLE version
Installed power of 60 - 66 kW has to be available where the cell is installed
Does not load or cut straight bar from a bundle; that remains Lasertube work
Each part family needs a fixture or a robot gripping position to be set up before cutting

Best For

Trimming and piercing tube after bending Hydroformed, extruded and stamped parts that need 5-axis cuts Parallel loading and cutting on two stations or a rotary table Robot-fed cells integrated into a larger production chain

Frequently Asked Questions

01 What kind of parts is the LT-FREE for?

Three-dimensional ones. BLM lists bent, hydroformed, extruded and drawn sections, and flat or stamped tubes and sheets. The 5-axis head cuts features into the formed part, where a tube laser such as the LT7 would cut straight stock before forming.

02 What are the LT-FREE configurations?

There are three. LT-FREE has a working table of 59 x 39 in (1,500 x 1,000 mm). LT-FREE SPLIT CABIN has working tables listed as 2 for 118 x 39 in (3,000 x 1,000 mm), in two cutting zones. LT-FREE TURN TABLE has 1 rotary table, 118 in (3,000 mm). The split and turn-table versions let loading and unloading overlap with cutting.

03 How accurate is the LT-FREE?

The technical table gives an accuracy of ±0.002 in (0.05 mm) and the same figure, ±0.002 in (0.05 mm), for repeatability. The head moving system has 5 axes and the enclosure is rated Class C1.

04 What does the handling robot do in the LT-FREE?

It holds and repositions the part in space during the cycle. BLM states that this eliminates manual repositioning and the reconfiguration of fixed jigs, and that the robot's six degrees of freedom, added to the 5-axis head, let the beam reach anywhere on the workpiece. The cell can be equipped with 2 robots.

05 What control and power supply does the LT-FREE use?

The control is PC-based and listed as SIEMENS, with the unified BLM GROUP operator interface. Installed power is 60 - 66 kW. The fiber laser source is offered at 2 kW - 3 kW - 4 kW.
