Bystronic ByTube Star 130
Key Specifications
max tube diameter
max tube length
laser power
max mild steel wall
max stainless wall
max aluminum wall
Overview

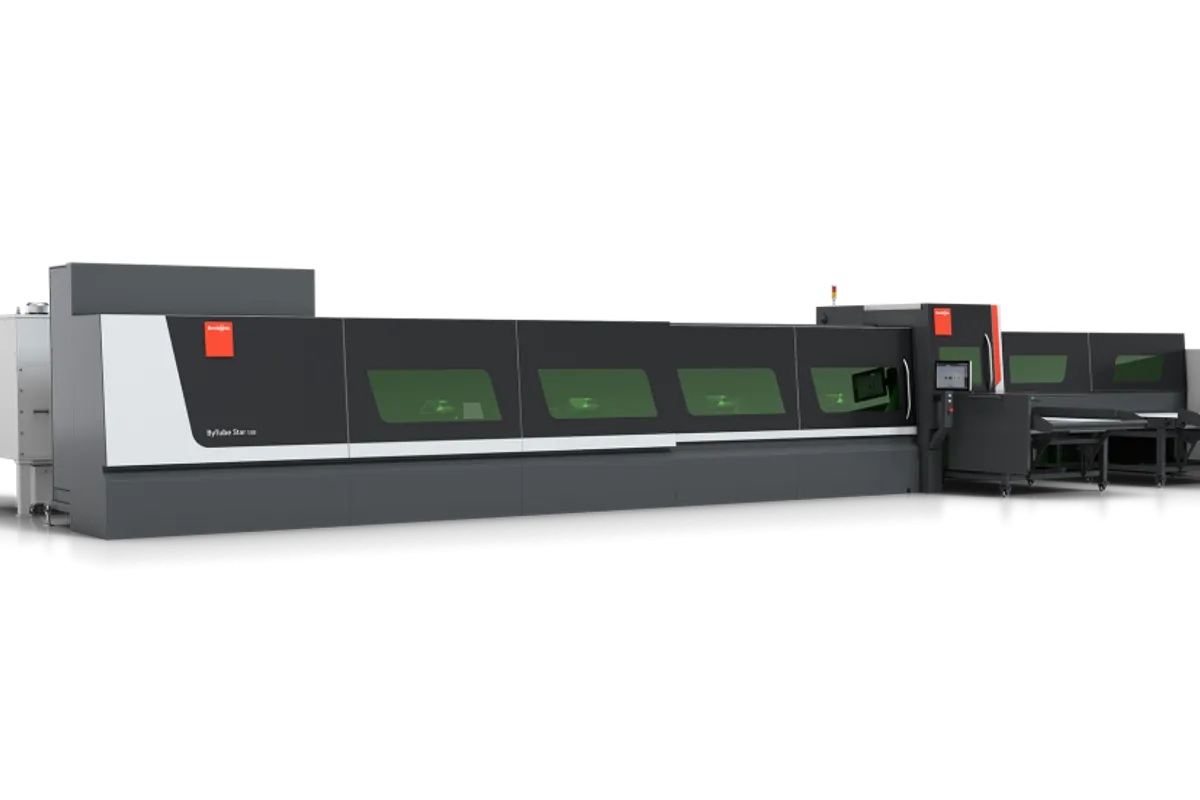

The Bystronic ByTube Star 130 is a fiber laser tube cutting system for round, square, rectangular, and open-profile tubes up to 130 mm diameter and 6,500 mm length. 3 kW fiber laser with automatic focus.
Cuts mild steel tube to 8 mm wall, stainless to 6 mm, aluminum to 4 mm. BySoft 7 Tube provides 3D programming with joint detection and weld prep. ByVision Tube control.
New: $350K-$550K. Used units scarce. Competitors: Trumpf TruLaser Tube, BLM Adige LT7, Mazak FabriGear.
Full Specifications
| Parameter | Value |
|---|---|
| Max Tube Diameter | 130 mm (5.1 in) |
| Max Tube Length | 6,500 mm (21.3 ft) |
| Laser Power | 3 kW fiber |
| Max Mild Steel Wall | 8 mm |
| Max Stainless Wall | 6 mm |
| Max Aluminum Wall | 4 mm |
| Profiles | Round, square, rectangular, oval, open |
| Positioning | 100 m/min |
| Rotation | 200 rpm |
| CNC Control | ByVision Tube / BySoft 7 Tube |
| Loading | Auto bundle loading available |
Specifications sourced from bystronic.com — verified 2026-03-28
Strengths & Limitations
Strengths
- Handles multiple tube profiles
- 3 kW fiber for excellent cut quality
- Automatic loading reduces intervention
- 3D programming with weld prep
- 6.5m tubes for structural work
- Integrates with Bystronic ecosystem
Limitations
- $350K-$550K for dedicated tube machine
- 130 mm max diameter
- 3 kW limits thick walls vs higher-power competitors
- Different skill set than flat sheet
- Niche used market
Best For
Frequently Asked Questions
01
$350K-$550K new. Used scarce.
02
Up to 130 mm diameter, 6,500 mm length.
03
Mild steel 8 mm, stainless 6 mm, aluminum 4 mm at max dia.
04
Trumpf has higher power for larger tubes. ByTube integrates with Bystronic ecosystem.
05
At 20-30+ hrs/month of tube cutting, dedicated laser pays for itself.
