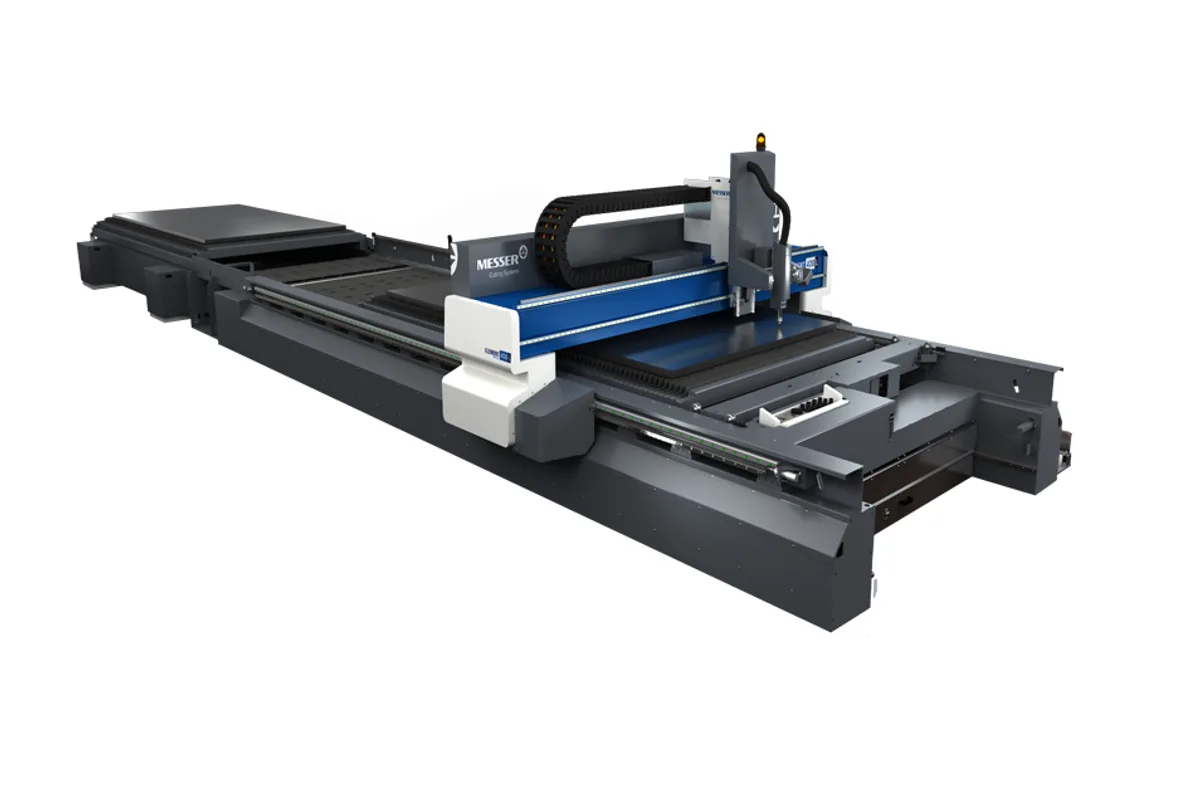

Messer Element 400L Unitized
Image: us.messer-cutting.com, Messer Cutting Systems
Key Specifications
working width
working length
sheet thickness
materials
laser power
bevel angle
How much does the Messer Element 400L Unitized cost?
Price estimate
We do not have a price for the Messer Element 400L Unitized that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Messer Element 400L Unitized is a fiber laser plate machine built for bevel cutting, on a unitized frame with an enclosure and a shuttle table. Working widths are 6 ft, 8 ft and 10 ft, working length goes up to 50 ft (15.2 m), and laser power is offered up to 20 kW for sheet up to 2 in (50 mm) thick.
The Bevel-U head is the reason the machine exists. It tilts the laser to +/- 50° and adjusts the angle continuously while cutting, producing I, V, Y, X and K edge shapes for weld preparation. Messer lists Y and K preparations with a land height from 1.5 mm for automated robot welding. The actual angle available depends on material, thickness and bevel type, so a thick K-bevel needs confirming with the maker.
A second process can share the gantry. Up to two processes are supported, and plasma bevel units, the Bevel-R and Bevel-S, are on the option list, so plate too thick for the laser can still be finished on the same table. Positioning speed is up to 140 m/min (5,512 ipm) on the combined X/Y axis, far beyond a plasma gantry.
Because any laser requires an enclosure, the footprint is much longer than the plate. For a 10 ft plate the overall machine length with shuttle table is 46.25 ft (14.1 m), and for a 50 ft plate 134.42 ft (41.0 m). Enclosure height is 11.79 ft (3.6 m) and loading height 3 ft (0.9 m). The Slagger self-cleaning table is standard, and the optional LNC unit cleans, changes and tests nozzles automatically.
Full Specifications
| Parameter | Value |
|---|---|
| Working Width | 6 ft, 8 ft and 10 ft (1.8 m, 2.4 m and 3.0 m) |
| Working Length | Up to 50 ft (15.2 m) |
| Sheet Thickness | Up to 2 in (50 mm) |
| Materials | Mild steel, stainless steel and aluminum |
| Laser Power | Up to 20 kW |
| Bevel Angle | +/- 50° (Bevel-U laser bevel cutting unit) |
| Positioning Speed | Up to 140 m/min (5,512 ipm), combination X/Y axis |
| Processes | Up to two processes; three-process machines possible depending on machine configuration |
| CNC Control | Global Connect, Windows based |
| Overall Machine Length by Plate Length | 10 ft: 46.25 ft (14.1 m); 15 ft: 57.28 ft (17.5 m); 20 ft: 68.29 ft (20.8 m); 25 ft: 79.32 ft (24.2 m); 30 ft: 90.34 ft (27.5 m); 40 ft: 112.38 ft (34.3 m); 50 ft: 134.42 ft (41.0 m) |
| Enclosure Length by Plate Length | 10 ft: 29.29 ft (8.9 m); 15 ft: 34.81 ft (10.6 m); 20 ft: 40.31 ft (12.3 m); 25 ft: 45.83 ft (14.0 m); 30 ft: 51.33 ft (15.6 m); 40 ft: 62.35 ft (19.0 m); 50 ft: 73.38 ft (22.4 m) |
| Overall Clearance Length by Plate Length | 10 ft: 49.25 ft (15.0 m); 15 ft: 60.28 ft (18.4 m); 20 ft: 71.29 ft (21.7 m); 25 ft: 82.32 ft (25.1 m); 30 ft: 93.34 ft (28.5 m); 40 ft: 115.38 ft (35.2 m); 50 ft: 137.42 ft (41.9 m) |
| Enclosure Height | 11.79 ft (3.6 m) |
| Loading Height | 3 ft (0.9 m) |
| Certification | UL/CUL |
Specifications sourced from us.messer-cutting.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Laser bevel cutting to +/- 50° with the Bevel-U unit, for I, V, Y, X and K edge shapes
- Laser power up to 20 kW and sheet thickness up to 2 in (50 mm)
- Working length up to 50 ft (15.2 m), on widths of 6 ft, 8 ft and 10 ft
- Positioning speed up to 140 m/min (5,512 ipm)
- Slagger self-cleaning table is standard, and a shuttle table handles material changes
Limitations
- Overall machine length is 46.25 ft (14.1 m) for a 10 ft plate, because of the shuttle table and enclosure
- Working width stops at 10 ft
- Bevel angle actually reached depends on material type, thickness and bevel type
- Automatic nozzle changing (LNC), gas mixing and plate alignment are options
Best For
Frequently Asked Questions
01
The Bevel-U laser bevel unit works to +/- 50°, adjusting the angle continuously during the cut. I, V, Y, X and K edge shapes are possible. Messer notes that the actual cutting angles depend on the material type, thickness and bevel type.
02
Working width is 6 ft, 8 ft or 10 ft and working length is up to 50 ft (15.2 m). Sheet thickness up to 2 in (50 mm) is possible. The machine cuts mild steel, stainless steel and aluminum.
03
Much more than the plate. With the shuttle table the overall machine length is 46.25 ft (14.1 m) for a 10 ft plate, 68.29 ft (20.8 m) for a 20 ft plate and 134.42 ft (41.0 m) for a 50 ft plate. Enclosure height is 11.79 ft (3.6 m).
04
Yes. Up to two processes are supported, and three-process machines are possible depending on the configuration. Plasma bevel cutting units, the Bevel-R and Bevel-S, are optional, as are plasma, inkjet and PinStamp marking systems.
05
The Global Connect, a Windows based control on a stand-alone console that tilts and swivels. An automatic sheet position detection system approaches the sheet edge at three points without contact and rotates the CNC program to match the plate.
