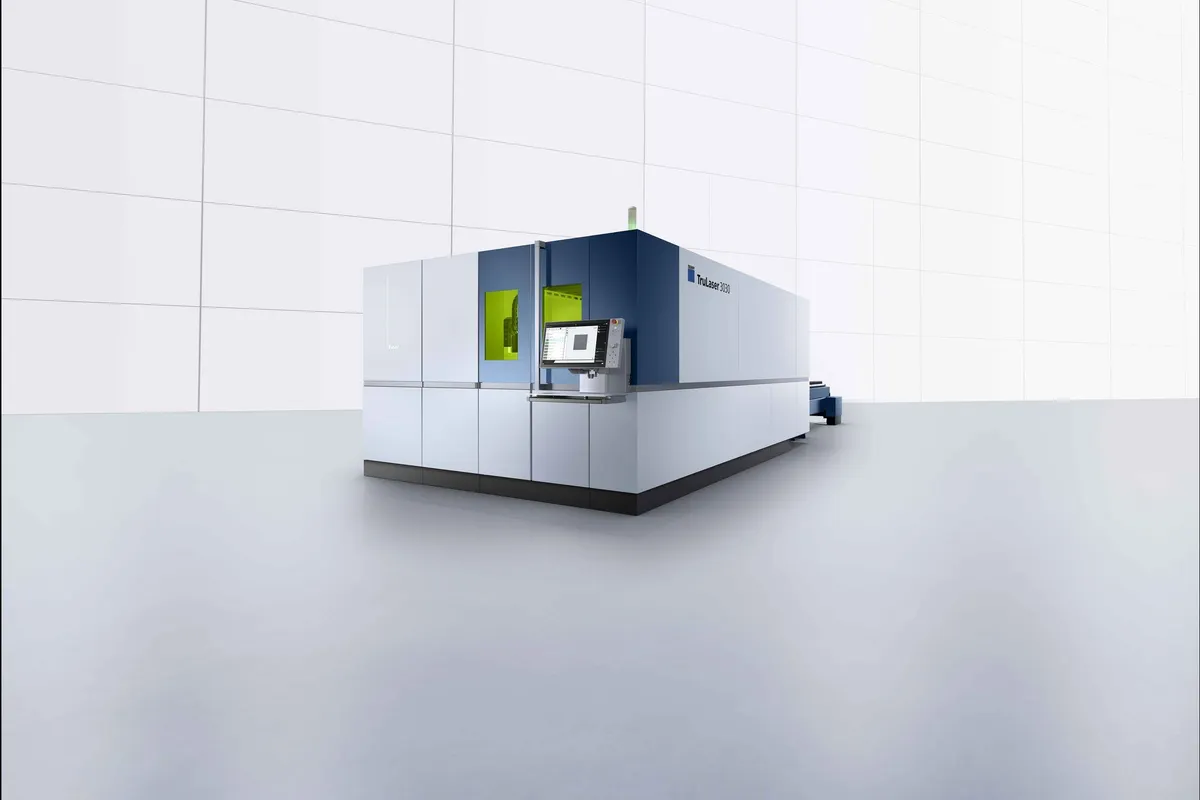

Trumpf TruLaser 3060 Fiber
Key Specifications
working area
laser type
laser power options
max thickness mild steel 12kw
max thickness stainless steel 12kw
max thickness aluminum 12kw
Overview
The Trumpf TruLaser 3060 Fiber is the large-format version of Trumpf's mid-range 2D fiber laser cutting platform, delivering a 6,000 x 2,500 mm (236 x 98 in) working area that handles full 10x20 ft sheets. It carries the complete 3000 series technology package -- BrightLine fiber, CoolLine, Highspeed Eco, NanoJoints -- in a format sized for structural steel, heavy equipment, and large panel fabrication.
Laser power options match the 3030: 4 kW, 6 kW, 9 kW, 12 kW, and 24 kW TruFiber beam sources. At 12 kW, cutting capabilities reach 30 mm mild steel (35 mm with thick-sheet package), 40 mm stainless (50 mm with package), and 30 mm aluminum (40 mm with package). The 24 kW option pushes capabilities further for extreme thick-plate applications. BrightLine fiber technology is particularly valuable at this format size, where parts are often large enough that edge quality on thick stainless and aluminum directly affects downstream welding and assembly.
Simultaneous positioning speed is 170 m/min, matching the 3030. The machine weighs 19,800 kg (43,651 lb) with dimensions of 15,450 x 6,878 x 2,200 mm (608 x 271 x 87 in). Table load capacity reaches 2,900 kg without pallet changer, or 4,900 kg with the heavy-duty version -- adequate for full 10x20 ft sheets of thick plate steel.
The 3060 is the mid-range alternative to both the entry-level TruLaser 1060 (same format, less technology, lower price) and the high-performance TruLaser 5060 (same format, faster dynamics, higher price). For fabricators who need the 3000 series' cutting technology on large sheets, it fills a specific and important niche.
Highspeed Eco mode's nitrogen savings are even more impactful at this format size, where sheets have more cutting length and gas consumption scales proportionally. A shop cutting 10x20 ft sheets of thin stainless at high volume can save tens of thousands of dollars annually in nitrogen costs with this mode enabled.
New TruLaser 3060 Fiber machines with 6 kW start around $550,000-$700,000. The 12 kW with automation runs $800,000-$1,100,000. The 24 kW fully loaded exceeds $1.3 million. The heavy-duty pallet changer is essentially standard equipment at this format size.
Full Specifications
| Parameter | Value |
|---|---|
| Working Area | 6,000 x 2,500 mm (236 x 98 in) |
| Laser Type | TruFiber (diode-pumped fiber laser) |
| Laser Power Options | 4 kW / 6 kW / 9 kW / 12 kW / 24 kW |
| Max Thickness Mild Steel 12kw | 30 mm (1.18 in); 35 mm with thick-sheet package |
| Max Thickness Stainless Steel 12kw | 40 mm (1.57 in); 50 mm with thick-sheet package |
| Max Thickness Aluminum 12kw | 30 mm (1.18 in); 40 mm with thick-sheet package |
| Max Positioning Speed | 170 m/min (simultaneous) |
| Table Load Capacity | 2,900 kg (without pallet changer); 4,900 kg (heavy-duty pallet changer) |
| Machine Weight | 19,800 kg (43,651 lb) |
| Machine Dimensions | 15,450 x 6,878 x 2,200 mm (608 x 271 x 87 in) |
| CNC Control | Touchpoint HMI (touchscreen) |
| Cutting Technology | BrightLine fiber, CoolLine, Highspeed Eco, NanoJoints, PierceLine |
| Collision Protection | Yes |
| Integrated Gas Mixer | Yes |
| Length | 9229 mm |
| Width | 6145 mm |
| Height | 2200 mm |
| Weight Of Basic Machine | 11700 kg1 |
| Simultaneous | 170 m/min |
| X Axis | 3000 mm |
| Y Axis | 1500 mm |
| Maximum Workpiece Weight Without Heavy Duty Pallet Changer | 1100 kg |
| Maximum Workpiece Weight With Heavy Duty Pallet Changer | 1800 kg |
| Maximum Workpiece Weight On Both Pallets With Heavy Duty Pallet Changer | 2200 kg2 |
| Maximum Laser Power | With 24 kW, the TruFiber 24001 cuts up to three times faster |
| Maximum Sheet Thickness Mild Steel | 40 mm |
| Maximum Mild Steel Sheet Thickness With Cutting Package For Thick Sheets | 60 mm |
| Maximum Sheet Thickness Stainless Steel | 40 mm |
| Maximum Stainless Steel Sheet Thickness With Cutting Package For Thick Sheets | 60 mm |
| Maximum Sheet Thickness Aluminum | 40 mm |
| Maximum Sheet Thickness Copper | 16 mm |
| Maximum Sheet Thickness Brass | 12.7 mm |
| Maximum Aluminum Sheet Thickness With Cutting Package For Thick Sheets | 40 mm |
| Average Power Input In Production Trufiber 4001 | 10 kW |
| Average Power Input In Production Trufiber 6001 | 11 kW |
| Average Power Input In Production Trufiber 9001 | 14.5 kW |
| Average Power Input In Production Trufiber 12001 | 16 kW |
| Average Power Input In Production Trufiber 24001 | 27 kW |
| The Best Results Without Compromise | BrightLine fiber facilitates excellent part quality and seamless part removal. |
| Intricate Cutting Even In Thick Mild Steel | With the CoolLine function, you can even create small contours in thick mild steel. |
| Utilize Remainder Sheets Post Produce Parts Easily | Using Drop&Cut, you can easily post-produce parts from remainder sheets. |
| Simple Machine Operation | The menu navigation on the large display works intuitively. Integrated cutting parameters increase the level of process reliability. |
| Increased Machine Availability | Condition Guide always monitors the condition of your machine. |
| Reliability Without Microjoints | Smart collision prevention reduces the risk of collisions during laser cutting. |
| Accurate Position Recognition | DetectLine determines the position of the sheet and enables precise post-processing of cut parts. |
| Highspeed And Highspeed Eco | A new nozzle design reduces nitrogen consumption by up to 70% – for double the sheet throughput. |
| Modeltrulaser 3030 Fibertrulaser 3040 Fibertrulaser 3060 Fibertrulaser 3080 Fiber | TruLaser 3030 fiberTruLaser 3040 fiberTruLaser 3060 fiberTruLaser 3080 fiber |
Specifications sourced from trumpf.com — verified 2026-03-28
Strengths & Limitations
Strengths
- 6,000 x 2,500 mm working area with full 3000 series technology stack -- BrightLine, CoolLine, Highspeed Eco -- on a 10x20 ft platform
- 24 kW laser option for extreme thick-plate work at a format size where large parts make high power essential
- Highspeed Eco nitrogen savings scale with sheet size -- larger sheets mean proportionally greater gas cost reduction
- 4,900 kg heavy-duty pallet changer handles the heaviest 10x20 ft plate steel sheets
- BrightLine fiber edge quality on large thick parts reduces downstream grinding and finishing before welding
- Full Trumpf automation ecosystem compatible -- STOPA towers, LiftMaster, SortMaster for large-format lights-out production
Limitations
- 19,800 kg weight and 15.45 m length require significant facility preparation including foundation reinforcement
- Pricing starts well above $500,000 and reaches $1.3 million+ fully loaded -- major capital commitment
- 170 m/min positioning across 6,000 mm X-axis travel means considerable non-cutting travel time between far-spaced parts
- Limited resale market for large-format mid-range machines compared to standard 5x10 ft platforms
- Trumpf service costs scale with machine size -- replacement parts and annual contracts are premium-priced
Best For
Frequently Asked Questions
01
New machines with 6 kW start around $550,000-$700,000. The 12 kW with automation runs $800,000-$1,100,000. The 24 kW fully loaded exceeds $1.3 million. Used machines from 2019-2022 trade in the $300,000-$600,000 range depending on configuration, laser hours, and included automation.
02
Both cover the same 6,000 x 2,500 mm working area with identical laser power options. The 3060 adds BrightLine fiber for better edge quality on thick material, CoolLine for controlled piercing, Highspeed Eco for nitrogen savings, and faster 170 m/min positioning (vs 140 m/min). The 1060 costs 30-40% less. Choose the 3060 if edge quality, operating costs, and production efficiency justify the premium.
03
The machine measures 15,450 x 6,878 x 2,200 mm. With pallet changer operation, automation equipment, and service access, plan for approximately 20 x 10 meters (65 x 33 ft) minimum. Foundation must support 19,800 kg base weight plus loaded sheets up to 4,900 kg.
04
The 24 kW option dramatically increases cutting speed on thick mild steel and stainless, and pushes maximum cutting thickness higher. It's worth it for shops that regularly process plate above 20 mm, where the speed increase per part can justify the higher upfront and operating costs. For shops primarily cutting thin to medium sheet, 12 kW is more than adequate.
05
Yes, with proper automation. Trumpf offers LiftMaster for loading/unloading, SortMaster for part sorting, and STOPA storage towers for material management. Combined with collision protection, NanoJoints, and PierceLine, the machine can run extended unattended shifts. The key is adequate raw material capacity in the STOPA tower and reliable part removal.
