Ermak ETP 1500x2500

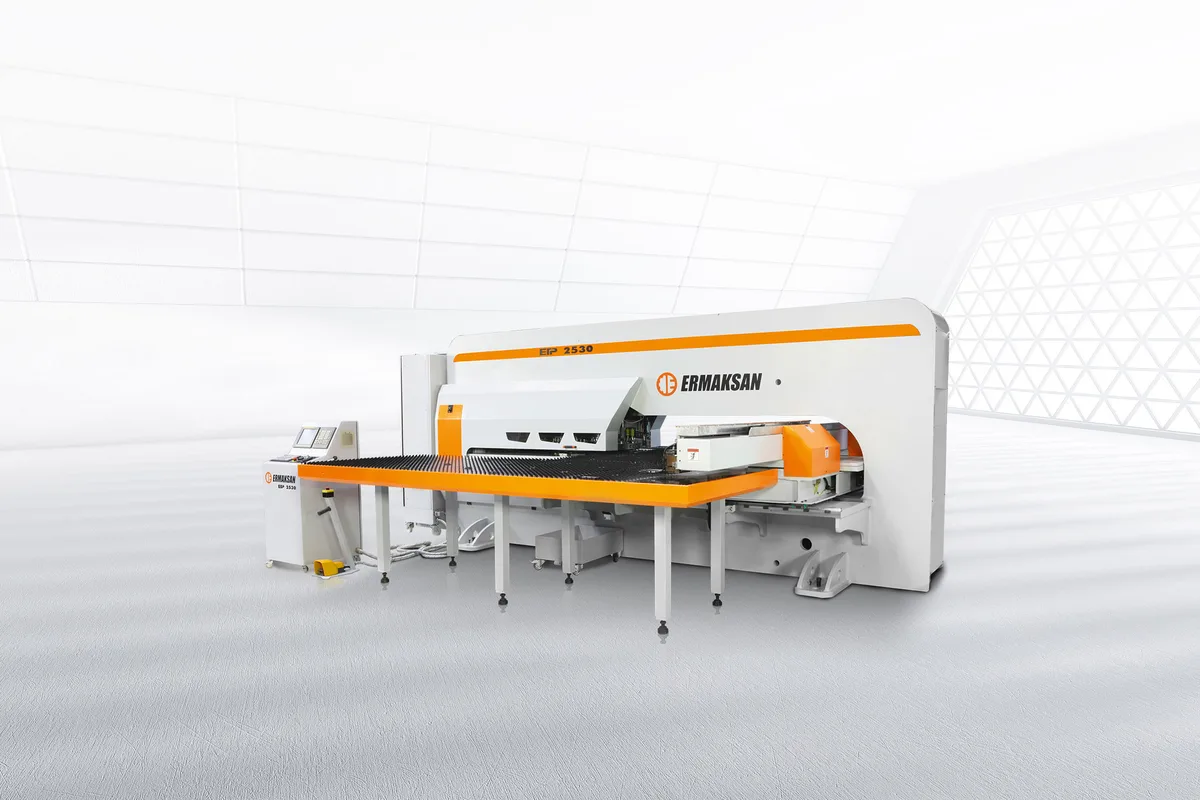

Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
punching force
max sheet size
turret stations
max punch diameter
How much does the Ermak ETP 1500x2500 cost?
Price estimate
We do not have a price for the Ermak ETP 1500x2500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Thirty Ton, 33 stations and a 2,500 x 1,500 mm (98.4 x 59.1 in) sheet: the Ermak ETP 1500x2500 is the mid-size hydraulic turret punch press in Ermak's ETP line, and the smaller of the two models with the full-size press.
A 2,500 mm X axis fits the most common sheet length, and it trims the machine considerably. Width is 5,000 mm and weight 18,500 kg (40,785 lb). Three clamps are fitted, and the table is rated for 200 kg (441 lb).
Ermak notes a distortion prevention system for machines with an axis length of 2500 mm, which stops distortion and vibration on the ball screw. All axes are driven by Fanuc servo motors through absolute ball screws.
Hydraulics are close to those of the larger model: an 11 kW (14.8 hp) motor and an oil capacity of 280 lt. The stroke unit is the Voith Turbo H + L. The punch rate for marking is 1,200 strokes/min, with 900 strokes/min at a 1 mm step and 600 strokes/min at a 25 mm step.
The turret rotates at 20 rpm and carries three auto-index stations in the D size, so even large shaped tools can be turned to any angle. Index positioning accuracy is 0.01°.
Full Specifications
| Parameter | Value |
|---|---|
| Punching Force | 30 Ton (33 US tons) |
| Max Sheet Size | 2,500 x 1,500 mm (98.4 x 59.1 in) |
| Turret Stations | 33 |
| Max Punch Diameter | 88.9 mm (3.5 in), single tool in 1 mm sheet |
| X Axis Travel | 2,500 mm (98.4 in) + R |
| X Axis Speed | 80 m/min |
| Y Axis Travel | 1,500 mm (59.1 in) |
| Y Axis Speed | 80 m/min |
| Xy Combined Speed | 114 m/min |
| Turret Rotation Speed | 20 rpm |
| Auto Index Rotation Speed | 65 rpm |
| Punch Rate Marking | 1,200 strokes/min (1 mm stroke) |
| Punch Rate 1 Mm Step | 900 strokes/min (1 mm step in X and Y) |
| Punch Rate 25 Mm Step | 600 strokes/min (25 mm step in X and Y) |
| Max Thickness Fixed Station Mild Steel | 6.35 mm (0.25 in) |
| Max Thickness Fixed Station Stainless Steel | 3 mm (0.12 in) |
| Max Thickness Auto Index Station Mild Steel | 4 mm (0.16 in) |
| Max Thickness Auto Index Station Stainless Steel | 2.5 mm (0.10 in) |
| Repeatability | ±0.05 mm |
| Positioning Accuracy | ±0.1 mm |
| Index Positioning Accuracy | 0.01° |
| Multi Tool Change Time | 3 s |
| Max Sheet Weight | 200 kg (441 lb) |
| Main Motor Power | 11 kW (14.8 hp) |
| Oil Capacity | 280 lt |
| Air Pressure | 6 - 7 bar |
| Ram Stroke | 40 mm (1.57 in) |
| Sheet Clamps | 3 |
| Sheet Clamping Force | 1,200 kg (2,646 lb) |
| Power Supply | 25 kW (33.5 hp) |
| Air Supply | 2.5 L/min |
| CNC Control | GE Fanuc 31i-PB with Ermaksan HMI software |
| Press Drive | Voith Turbo H + L Hydraulic |
| Working Height | 950 mm (37.4 in) |
| Table Type | Brush, ball or brush + ball |
| Machine Length | 5,520 mm (217.3 in) |
| Machine Width | 5,000 mm (196.9 in) |
| Machine Height | 2,220 mm (87.4 in) |
| Machine Weight | 18,500 kg (40,785 lb) |
| CAD CAM Software | Metalix |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 30 Ton press on a table sized for 2,500 x 1,500 mm sheet
- 33 stations with three D-size auto-index stations
- Distortion prevention system on the ball screw
- Runs from a 25 kW (33.5 hp) power supply
- 18,500 kg (40,785 lb), lighter than the ETP 1500x3000 at 22,000 kg
Limitations
- Marking rate of 1,200 strokes/min
- Axis speed of 80 m/min, below the 120 m/min of the ETP 1250x2500
- 280 lt hydraulic oil fill
Best For
Frequently Asked Questions
01
Sheets up to 2,500 x 1,500 mm and 200 kg (441 lb), with 30 Ton of force. Thickness limits are 6.35 mm mild steel and 3 mm stainless in a fixed station, and 4 mm and 2.5 mm in an auto-index station.
02
The ETP 1250x2500 is a 20 Ton machine with 27 stations, a 1,250 mm Y travel and 120 m/min axes. The ETP 1500x2500 has 30 Ton, 33 stations, 1,500 mm of Y travel and 80 m/min axes.
03
The 33-station turret is given as 15xA+12xB+2xC+1xD with 3xD auto-index stations. Ermak says 8A, 3B or 1C tools can optionally be fitted to the index stations.
04
Length 5,520 mm, width 5,000 mm and height 2,220 mm, with a working height of 950 mm. The weight is 18,500 kg (40,785 lb).
