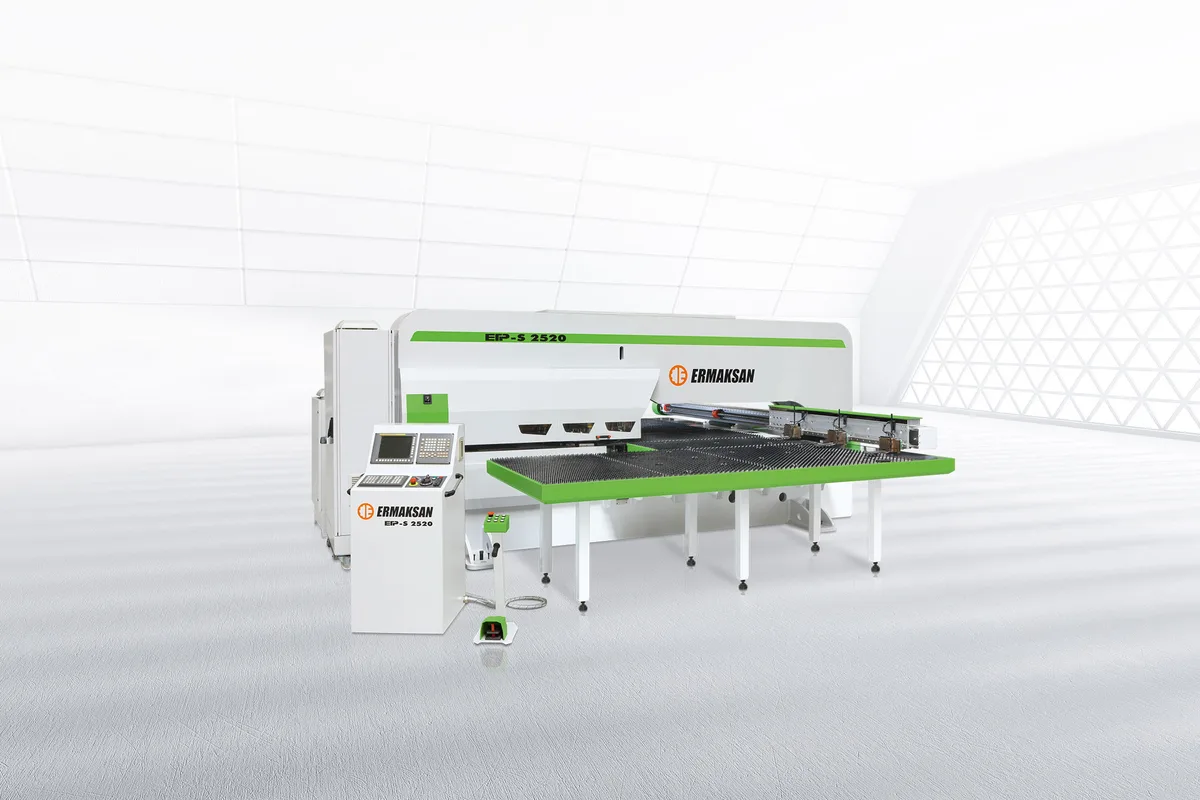

Ermak ETP-S 1500x2500 (20 ton)
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
punching force
max sheet size
turret stations
max punch diameter
How much does the Ermak ETP-S 1500x2500 (20 ton) cost?
Price estimate
We do not have a price for the Ermak ETP-S 1500x2500 (20 ton) that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
This is the 20 Ton version of the Ermak ETP-S 1500x2500, a servo-electric turret punch press with a 2,500 x 1,500 mm (98.4 x 59.1 in) sheet capacity. The maker's table lists it beside a 30 Ton machine of the same name and the same dimensions.
What does the lower tonnage change? Mainly the electrical side. The power supply is 40 kW (53.6 hp) here, where the ETP-S 1500x2500 (30 ton) requires 60 kW. For a shop punching thin sheet, 20 Ton covers most standard tooling, and the smaller connection is easier to accommodate.
Everything the operator touches is the same. The turret has 33 stations, the axes run at 80 m/min each, and the listed punch rates are 1,200 strokes/min for marking, 900 strokes/min at a 1 mm step and 600 strokes/min at a 25 mm step. The table carries 200 kg (441 lb).
Ermak's thickness figures do not vary by tonnage in the table: 6.35 mm mild steel in a fixed station and 4 mm in an auto-index station. Whether a given hole can actually be punched depends on its perimeter and the material, which is where 20 Ton sets the limit.
The machine measures 5,520 x 5,000 mm on the floor and weighs 18,500 kg (40,785 lb).
Full Specifications
| Parameter | Value |
|---|---|
| Punching Force | 20 Ton (22 US tons) |
| Max Sheet Size | 2,500 x 1,500 mm (98.4 x 59.1 in) |
| Turret Stations | 33 |
| Max Punch Diameter | 88.9 mm (3.5 in), single tool in 1 mm sheet |
| X Axis Travel | 2,500 mm (98.4 in) + R |
| X Axis Speed | 80 m/min |
| Y Axis Speed | 80 m/min |
| Xy Combined Speed | 114 m/min |
| Turret Rotation Speed | 20 rpm |
| Auto Index Rotation Speed | 65 rpm |
| Punch Rate Marking | 1,200 strokes/min (1 mm stroke) |
| Punch Rate 1 Mm Step | 900 strokes/min (1 mm step in X and Y) |
| Punch Rate 25 Mm Step | 600 strokes/min (25 mm step in X and Y) |
| Max Thickness Fixed Station Mild Steel | 6.35 mm (0.25 in) |
| Max Thickness Fixed Station Stainless Steel | 3 mm (0.12 in) |
| Max Thickness Auto Index Station Mild Steel | 4 mm (0.16 in) |
| Max Thickness Auto Index Station Stainless Steel | 2.5 mm (0.10 in) |
| Repeatability | ±0.05 mm |
| Positioning Accuracy | ±0.1 mm |
| Index Positioning Accuracy | 0.01° |
| Multi Tool Change Time | 3 s |
| Max Sheet Weight | 200 kg (441 lb) |
| Air Pressure | 6 - 7 bar |
| Ram Stroke | 32 mm (1.26 in) |
| Sheet Clamps | 3 |
| Sheet Clamping Force | 1,200 kg (2,646 lb) |
| Power Supply | 40 kW (53.6 hp) |
| Air Supply | 2.5 L/min |
| CNC Control | GE Fanuc 31i-PB with Ermaksan HMI software |
| Press Drive | Servo mechanical press, 20 TN |
| Working Height | 950 mm (37.4 in) |
| Table Type | Brush, ball or brush + ball |
| Machine Length | 5,520 mm (217.3 in) |
| Machine Width | 5,000 mm (196.9 in) |
| Machine Height | 2,220 mm (87.4 in) |
| Machine Weight | 18,500 kg (40,785 lb) |
| CAD CAM Software | Metalix |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 40 kW (53.6 hp) power supply, lower than the 30 Ton version
- 33-station turret on a 20 Ton servo machine
- Sheets up to 2,500 x 1,500 mm and 200 kg (441 lb)
- Same 80 m/min axes and punch rates as the 30 Ton version
Limitations
- 20 Ton limits hole perimeter in thick material
- Weighs the same 18,500 kg (40,785 lb) as the stronger version
- Axes are slower than the 120 m/min of the ETP-S 1500x2000
Best For
Frequently Asked Questions
01
In punching force and power supply: 20 Ton and 40 kW (53.6 hp) on this model. Sheet size, the 33-station turret, axis speeds, punch rates, dimensions and weight are the same in the maker's table.
02
88.9 mm (3.5 in) for a single tool in 1 mm sheet, as on every ETP-S. The largest D stations in the turret are the ones that accept tools of that diameter.
03
Air pressure of 6 - 7 bar and an air supply of 2.5 L/min are listed. Ermak fits an air blowing and lubrication system that lubricates the tools.
04
The table type is listed as brush, ball or brush + ball. Ermak says a table that combines brush and ball can be offered on request. Working height is 950 mm.
