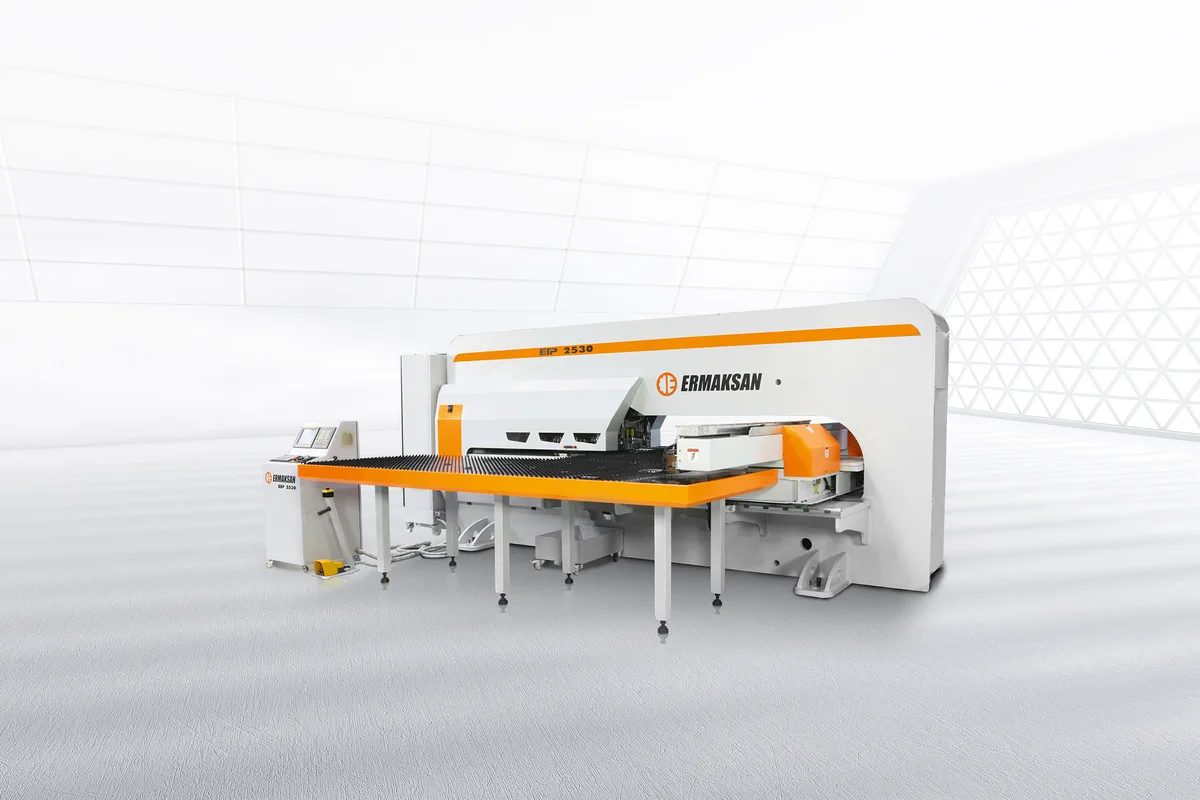

Ermak ETP 1250x2500
Image: ermaksan.com.tr, Ermak
Key Specifications
Accuracy
Repeatability
punching force
max sheet size
turret stations
max punch diameter
How much does the Ermak ETP 1250x2500 cost?
Price estimate
We do not have a price for the Ermak ETP 1250x2500 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ermak ETP 1250x2500 is a 20 Ton hydraulic turret punch press for sheets of 2,500 x 1,250 mm (98.4 x 49.2 in). It is the larger of the two 1,250 mm models, which form the lighter and quicker half of Ermak's ETP range.
The narrower Y axis is the starting point. Y travel is 1,250 mm, enough for the standard 2,500 x 1,250 mm sheet and no more. Around it Ermak fits a 27-station turret and a smaller hydraulic unit: a 7.5 kW (10.1 hp) motor with 180 lt of oil.
Less mass to move means faster axes. X and Y each run at 120 m/min, 170 m/min combined, and the turret turns at 27 rpm. The punch rate when marking is 1,500 strokes/min. At a 25 mm step the rate is 350 strokes/min.
A sheet may weigh up to 147 kg (324 lb). Ram stroke is 40 mm, and the maximum punch diameter is 88.9 mm (3.5 in) in 1 mm sheet.
The frame is shorter than on the 1,500 mm models, at 5,140 mm long, and weighs 15,500 kg (34,171 lb). Width is 5,000 mm. Power supply is 25 kW (33.5 hp) and the control a GE Fanuc 31i-PB with Ermaksan HMI software.
Full Specifications
| Parameter | Value |
|---|---|
| Punching Force | 20 Ton (22 US tons) |
| Max Sheet Size | 2,500 x 1,250 mm (98.4 x 49.2 in) |
| Turret Stations | 27 |
| Max Punch Diameter | 88.9 mm (3.5 in), single tool in 1 mm sheet |
| X Axis Travel | 2,500 mm (98.4 in) + R |
| X Axis Speed | 120 m/min |
| Y Axis Travel | 1,250 mm (49.2 in) |
| Y Axis Speed | 120 m/min |
| Xy Combined Speed | 170 m/min |
| Turret Rotation Speed | 27 rpm |
| Auto Index Rotation Speed | 65 rpm |
| Punch Rate Marking | 1,500 strokes/min (1 mm stroke) |
| Punch Rate 1 Mm Step | 900 strokes/min (1 mm step in X and Y) |
| Punch Rate 25 Mm Step | 350 strokes/min (25 mm step in X and Y) |
| Max Thickness Fixed Station Mild Steel | 6.35 mm (0.25 in) |
| Max Thickness Fixed Station Stainless Steel | 3 mm (0.12 in) |
| Max Thickness Auto Index Station Mild Steel | 4 mm (0.16 in) |
| Max Thickness Auto Index Station Stainless Steel | 2.5 mm (0.10 in) |
| Repeatability | ±0.05 mm |
| Positioning Accuracy | ±0.1 mm |
| Index Positioning Accuracy | 0.01° |
| Multi Tool Change Time | 3 s |
| Max Sheet Weight | 147 kg (324 lb) |
| Main Motor Power | 7.5 kW (10.1 hp) |
| Oil Capacity | 180 lt |
| Air Pressure | 6 - 7 bar |
| Ram Stroke | 40 mm (1.57 in) |
| Sheet Clamps | 3 |
| Sheet Clamping Force | 1,200 kg (2,646 lb) |
| Power Supply | 25 kW (33.5 hp) |
| Air Supply | 2.5 L/min |
| CNC Control | GE Fanuc 31i-PB with Ermaksan HMI software |
| Press Drive | Voith Turbo H + L Hydraulic |
| Working Height | 950 mm (37.4 in) |
| Table Type | Brush, ball or brush + ball |
| Machine Length | 5,140 mm (202.4 in) |
| Machine Width | 5,000 mm (196.9 in) |
| Machine Height | 2,220 mm (87.4 in) |
| Machine Weight | 15,500 kg (34,171 lb) |
| CAD CAM Software | Metalix |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 120 m/min axes and 170 m/min combined speed
- Sized for the standard 2,500 x 1,250 mm sheet
- Small hydraulic unit: 7.5 kW (10.1 hp) motor, 180 lt of oil
- 15,500 kg (34,171 lb), well below the 1,500 mm models
Limitations
- Punching force is limited to 20 Ton
- 27 stations, with a C station as the largest auto-index position
- 350 strokes/min at a 25 mm step
- Y travel of 1,250 mm excludes 1,500 mm wide sheet
Best For
Frequently Asked Questions
01
A maximum of 2,500 x 1,250 mm (98.4 x 49.2 in). X travel is 2,500 mm plus repositioning and Y travel is 1,250 mm. The table carries up to 147 kg (324 lb).
02
Each axis reaches 120 m/min and the combined speed is 170 m/min. Punch rates are 1,500 strokes/min for marking, 900 strokes/min at a 1 mm step and 350 strokes/min at a 25 mm step.
03
A Voith Turbo H + L hydraulic stroke unit with a 7.5 kW (10.1 hp) motor and an oil capacity of 180 lt. The power supply for the machine is 25 kW (33.5 hp).
04
27 stations: 11 A, 10 B, 1 C and 2 D fixed stations plus 2 B and 1 C auto-index stations, as Ermak lists the layout. Auto-index stations rotate at 65 rpm.
