Prima Power Combi Sharp 1225
Image: primapower.com, Prima Power
Key Specifications
max sheet size
ram force
hit speed
positioning speed
index tool rotation speed
standard turret
How much does the Prima Power Combi Sharp 1225 cost?
Price estimate
We do not have a price for the Prima Power Combi Sharp 1225 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

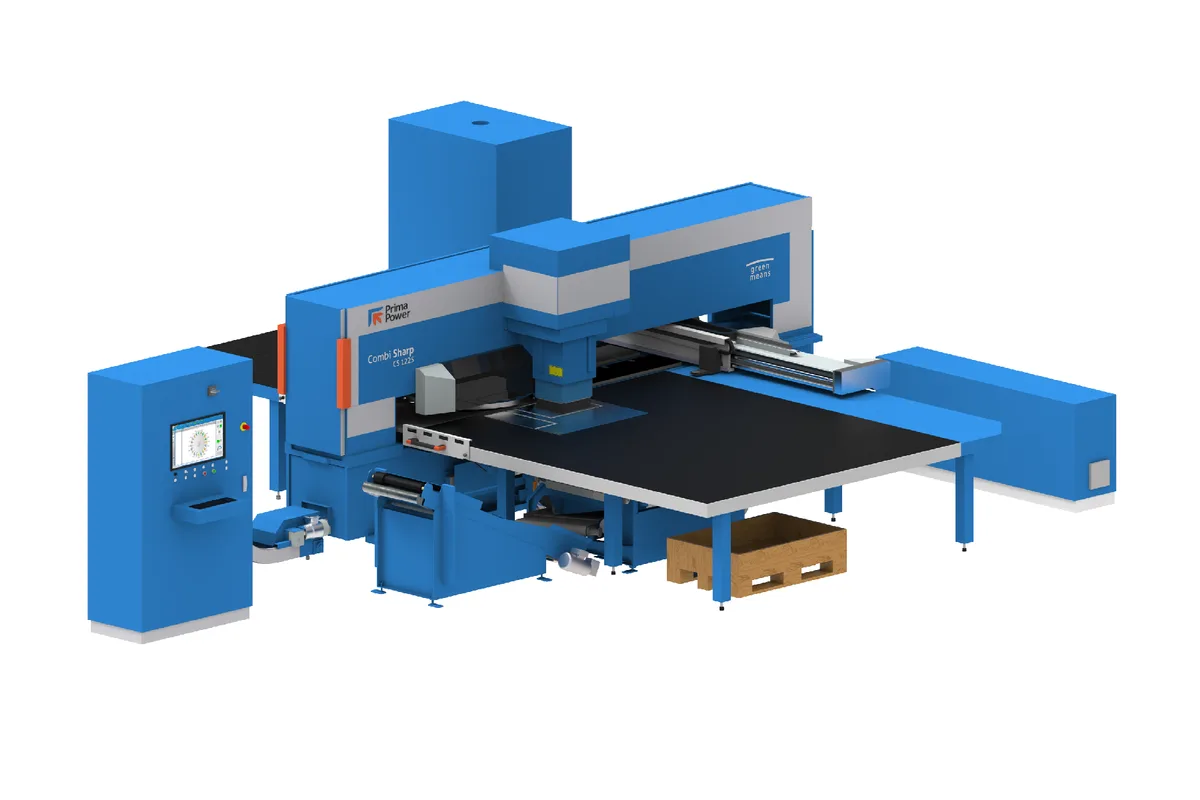

The Prima Power Combi Sharp 1225 (CS1225) is a compact punching and fiber laser cutting cell for sheet up to 2,500 mm x 1,250 mm (98.4 x 49.2 in). It is built on the Punch Sharp turret punch press, with a fiber laser added for contours and part separation.
On the punching side the ram force is 230 kN (25 US Tons), hit speed is 700 hpm and positioning speed is 108 m/min. Index tools rotate at 166 rpm. Punching is servo-electric, with a fully programmable stroke length that allows forming operations up to bending. The laser is a fiber source of 3 or 4 kW, and it needs no laser gas.
Both processes are rated to the same 8 mm (0.31 in) maximum sheet thickness, in aluminium, mild steel and stainless steel. Maximum sheet weight is 200 kg (441 lb). Average power consumption is listed in three parts: 3.2 kW for the punch, plus 8 kW for the YLS-3000 laser or 9 kW for the YLS-4000.
The turret data needs a careful read. The technical data gives the standard turret as 20 stations; 250 tools (4 index, 35 tools), while the headline text says a customized turret allows up to 384 standard or 128 index tools, and 16 and 20 station constructions are both offered. Ask Prima Power for the turret layout of the machine quoted and count the tools from that drawing.
Because the machine is modular, Prima Power notes that a Punch Sharp can grow into a combi later. A larger combined machine exists as the Combi Genius.
Full Specifications
| Parameter | Value |
|---|---|
| Max Sheet Size | 2,500 mm x 1,250 mm (98.4 x 49.2 in) |
| Ram Force | 230 kN (25 US Tons) |
| Hit Speed | 700 hpm |
| Positioning Speed | 108 m/min |
| Index Tool Rotation Speed | 166 rpm |
| Standard Turret | 20 stations; 250 tools (4 index, 35 tools) |
| Laser Power | Fiber, 3 or 4 kW |
| Max Sheet Thickness | 8 mm (0.31 in), punch and laser (Aluminium, Mild steel, Stainless steel) |
| Max Sheet Weight | 200 kg (441 lb) |
| Average Power Consumption | 3.2 kW (punch); 8 kW (YLS-3000); 9 kW (YLS-4000) |
Specifications sourced from primapower.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Punching and 3 or 4 kW fiber laser cutting in one compact cell
- Ram force of 230 kN (25 US Tons) at 700 hpm
- Punch and laser both rated to 8 mm (0.31 in) in aluminium, mild steel and stainless steel
- Fully programmable stroke length for forming, up to bending
- Average punch consumption of 3.2 kW; no laser gas required
Limitations
- Sheet size limited to 2,500 mm x 1,250 mm (98.4 x 49.2 in)
- Maximum sheet weight of 200 kg (441 lb)
- Turret capacity is stated two ways on the maker's page and must be confirmed
- Laser power stops at 4 kW
Best For
Frequently Asked Questions
01
Maximum sheet size is 2,500 mm x 1,250 mm (98.4 x 49.2 in), with a maximum sheet weight of 200 kg (441 lb). Maximum sheet thickness is 8 mm (0.31 in) for both punching and laser cutting.
02
A fiber laser with two cutting powers, 3 or 4 kW. The average power consumption rows name them as YLS-3000 at 8 kW and YLS-4000 at 9 kW. Prima Power states that the fiber technology requires no laser gas.
03
The technical data lists the standard turret as 20 stations; 250 tools (4 index, 35 tools). Elsewhere the page says the customized turret design allows up to 384 standard or 128 index tools, with 16 and 20 station alternatives. Confirm the layout on the quotation.
04
Hit speed is 700 hpm and positioning speed is 108 m/min. Index tool rotation speed is 166 rpm. Punching is servo-electric, so low ram speeds can also be programmed for forming tools.
