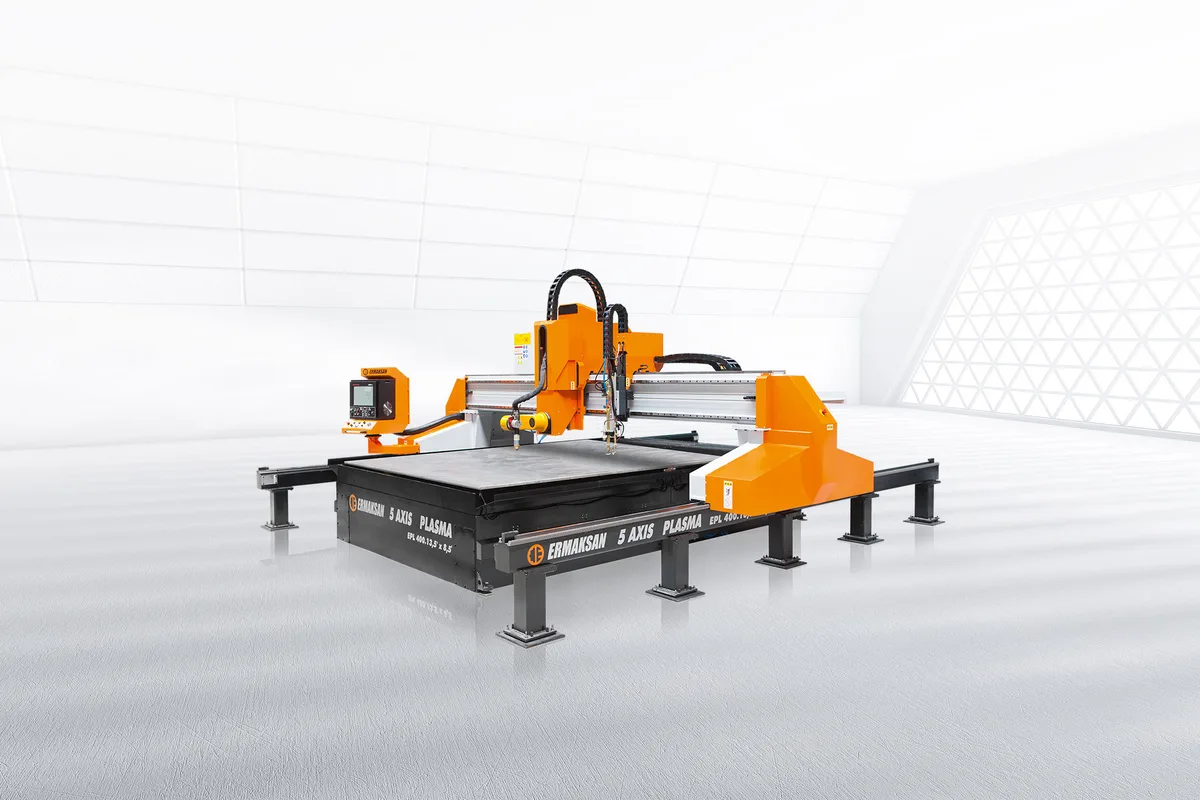

Ermak EPL 3/5 Axis Plasma 2040
Image: ermaksan.com.tr, Ermak
Key Specifications
Repeatability
cutting width
cutting length
total width
total height
torch distance
How much does the Ermak EPL 3/5 Axis Plasma 2040 cost?
Price estimate
We do not have a price for the Ermak EPL 3/5 Axis Plasma 2040 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
A 2,000 mm (78.7 in) cutting width and a 4,000 mm (157.5 in) cutting length define the Ermak EPL 3/5 Axis Plasma 2040. It is the only four-metre table in the series; every larger model is either six or twelve metres long.
That makes it the natural fit for shops that buy 2,000 x 4,000 mm plate and have no room for a longer rail. Total width is 4,700 mm (185 in), a figure shared by all three other two-metre models, and the machine weighs 6,650 kg (14,660 lb).
The plasma unit in the table is the Hypertherm HPR130XD, with a cutting capacity of 1 to 38 mm. Torch height is managed by the Ermak THC, which Ermak describes as an advanced torch height control system for cut quality and consumable life.
Bevel work needs the optional 5-axis cutting head. With it, according to the maker, all angles are calculated automatically.
Traverse speed is 20 m/min, and position repeatability is ±0.05 mm under DIN 28206. The control is the Hypertherm Edge Connect TC, mounted in a standard panel on the bridge; a separate mobile platform is not part of this series' list.
Full Specifications
| Parameter | Value |
|---|---|
| Cutting Width | 2,000 mm (78.7 in) |
| Cutting Length | 4,000 mm (157.5 in) |
| Total Width | 4,700 mm (185 in) |
| Total Height | 2,280 mm (89.8 in) |
| Torch Distance | 300 mm (11.8 in) |
| Table Height | 750 mm (29.5 in) |
| Max Speed | 20 m/min |
| Machine Axes | X, Y, Z, A, B |
| Repeatability | ±0.05 mm (DIN 28206) |
| Plasma Power Source | Hypertherm HPR130XD |
| Torch Height Control | Ermak THC |
| Cutting Capacity | 1 - 38 mm (0.04 - 1.5 in) |
| Power Requirement | 400V, 50Hz, 6 Bar Air |
| Machine Weight | 6,650 kg (14,660 lb) |
Specifications sourced from ermaksan.com.tr — verified 2026-10-05
Strengths & Limitations
Strengths
- 2,000 x 4,000 mm cutting area, the only four-metre length in the series
- 6,650 kg (14,660 lb) machine weight
- Hypertherm Edge Connect TC controller is standard
- ±0.05 mm position repeatability to DIN 28206
- Optional 5-axis head calculates bevel angles automatically
Limitations
- Six-metre plate does not fit the 4,000 mm cutting length
- Total width of 4,700 mm, as wide as the longer two-metre models
- Cutting capacity ends at 38 mm with the listed plasma unit
- Water table and portal table are optional
Best For
Frequently Asked Questions
01
2,000 mm (78.7 in) wide and 4,000 mm (157.5 in) long. The gantry's total width is 4,700 mm (185 in) and its total height 2,280 mm (89.8 in).
02
The table lists a cutting capacity of 1 to 38 mm with the Hypertherm HPR130XD plasma unit. An oxy-fuel cutting system is offered as an option on Ermak's equipment list.
03
The EPL 3/5 Axis Plasma 2060 keeps the 2,000 mm cutting width and extends the cutting length to 6,000 mm, at a weight of 8,150 kg against 6,650 kg for this model.
04
A Hypertherm Edge Connect TC controller, with Mitsubishi digital AC servo motors on the axes. The standard control panel is integrated into the bridge.
